IEI Launches the Industrial Motherboard KINO-ABT-i2
 Features |
|
|
|
 |
 |
 |
 |
 |

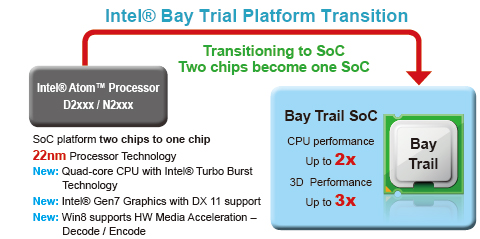

Mini-ITX SBC supports Intel® 22nm Atom™ or Celeron® on-board SoC |
|
|
1066/1333 MHz 1.35V DDR3L SDRAM supported up to 8GB |
|
|

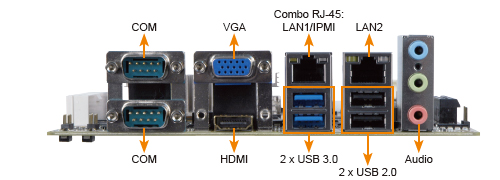

Supports dual independent display with VGA, HDMI and iDP |
|
|

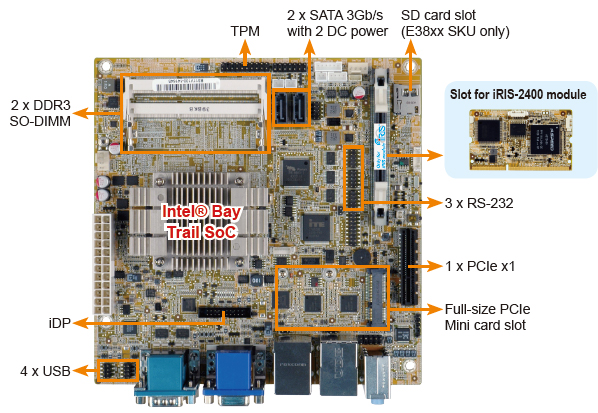

COM, USB 3.0, SATA, PCIe Mini, mSATA and HD Audio support |
|
|
Supports IPMI 2.0 via iRIS-2400 module |
|
|
Supports Intel® VT-x technology |
|
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
|
Specifications |
|
|
|
|
Model Name |
KINO-ABT-i2 |
|
SoC |
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) |
|
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W) |
|
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W) |
|
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W) |
|
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W) |
|
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W) |
|
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W) |
|
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W) |
|
BIOS |
AMI UEFI BIOS |
|
Memory |
Two 204-pin 1066/1333MHz dual-channel DDR3L SO-DIMM support up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815) |
|
Graphics Engine |
Intel® HD Graphics Gen 7 Engines with 4 execution unit, supports DX11.1, OpenGL 4.2 and OpenCL1.2 |
|
Display Output |
Dual Independent Display |
|
VGA (up to 2560x1600@60Hz) |
|
HDMI (up to 2560x1600@60Hz) |
|
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz) |
|
Ethernet |
LAN1: Intel® I210-AT PCIe controller with NCSI support (for iRIS solution) |
|
LAN2: Intel® I211-AT PCIe controller |
|
Super I/O |
Fintek F81866D-I |
|
I/O Interface |
2 x SATA 3Gb/s with 5V SATA power connector (no RAID) |
|
1 x PS/2 KB/MS |
1 x microSD slot (E38XX SKU only) |
|
1 x RS-422/485 (by pin header) |
6 x USB 2.0 (2 on rear I/O, 4 by pin header) |
|
1 x PS/2 KB/MS |
5 x RS-232 (2 on rear I/O, 3 by pin header) |
|
SMBus |
1 x 4-pin (1x4) wafer |
|
I2C |
1 x 4-pin (1x4) wafer |
|
TPM |
1 x TPM connector (2x10 pin) |
|
Audio |
Realtek ALC662 HD codec supports 5.1 channel |
|
Front Panel |
1 x 6-pin (1x10) wafer for power LED & HDD LED |
|
1 x 2-pin (1x2) wafer for power button |
|
1 x 2-pin (1x2) wafer for power reset |
|
LAN LED |
2 x 2-pin (1x2) header |
|
Expansion |
1 x Full-size PCIe Mini card slot (supports mSATA, co-lay SATA port 2) |
|
1 x PCIe x4 slot (PCIe x1 signal) |
|
Digital I/O |
8-bit digital I/O (4-bit input, 4-bit output) |
|
iRIS Remote Management Module |
1 x iRIS-2400 slot |
|
Fan Connector |
1 x 4-pin smart fan connector |
|
1 x 4-pin system fan connector |
|
Power supply |
ATX power supply |
|
Power Consumption |
5V@1.71A, 12V@0.08A, Vcore_12V@0.27A, 3.3V@0.34
(Intel® Celeron® J1900 CPU, 2 x 4GB 1333 MHz DDR3 memory) |
|
Watchdog Timer |
Software programmable, supports 1~255 sec. system reset |
|
Operating Temperature |
-20°C ~ 60°C |
|
Storage Temperature |
-30°C ~ 70°C |
|
Operating Humidity |
5% ~ 95%, non-condensing |
|
Dimensions |
170mm x 170mm |
|
Weight |
900g/NW: 450g |
|
|
|
|
Ordering Information |
|
|
|
|
Part No. |
Description |
|
KINO-ABT-i2-J19001-R10 |
Mini-ITX SBC supports Intel® Celeron® quad-core processor J1900 (10W), VGA/HDMI/iDP, dual Intel® PCIe GbE, SATA, USB 3.0, HD Audio, iRIS-2400 and RoHS |
|
KINO-ABT-i2-N29301-R10 |
Mini-ITX SBC supports Intel® Celeron® quad-core processor N2930 (7.5W), VGA/HDMI/iDP, dual Intel® PCIe GbE, SATA, USB 3.0, HD Audio, iRIS-2400 and RoHS |
|
KINO-ABT-i2-N28071-R10 |
Mini-ITX SBC supports Intel® Celeron® dual-core processor N2807 (4.3W), VGA/HDMI/iDP, dual Intel® PCIe GbE, SATA, USB 3.0, HD Audio, iRIS-2400 and RoHS |
|
KINO-ABT-i2-E38XX1-R10** |
Mini-ITX SBC supports Intel® Atom™ processor E38XX, VGA/HDMI/iDP, Dual Intel® PCIe GbE, SATA, USB 3.0, HD Audio, iRIS-2400 and RoHS |
|
32205-003800-300-RS |
RS-422/485 cable |
|
32200-000049-RS |
RS-232 cable, 200mm, DB-9 2x5P P=2.0 |
|
32006-000300-100-RS |
PS/2 KB/MS Y-cable without bracket |
|
32205-003800-300-RS |
RS-422/485 cable, 200mm |
|
DP-LVDS-R10 |
DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) |
|
DP-HDMI-R10 |
DisplayPort to HDMI converter board (for IEI iDP connector) |
|
DP-DVI-R10 |
DisplayPort to DVI-D converter board (for IEI iDP connector) |
|
DP-VGA-R10 |
DisplayPort to VGA converter board (for IEI iDP connector) |
|
DP-DP-R10 |
DisplayPort to DisplayPort converter board (for IEI iDP connector) |
|
TPM-IN01-R11 |
20-pin Infineon TPM module, software management tool, firmware V3.17 |
**: Those item are by order production, MOQ: 100 |
|
|
|
Packing List |
|
|
|
|
1 x KINO-ABT-i2 single board computer |
|
1 x Dual-port USB cable (P/N:19800-003100-300-RS) |
|
1 x SATA cable (P/N: 32801-000201-300-RS) |
1 x QIG (Quick Installation Guide) |
|
1 x IO shielding |
1 x Utility CD |
|
|
|
|
