IEI Launches the Fanless Embedded System TANK-801-BT
 Features |
|
|
|
 |
Intel® Celeron® J1900 2 GHz, 10W |
|
Various expansion type:
3A : One PCIe x1 + Two x PCI
3B: Two PCIe x1 + One x PCI
3C: Three x PCI |
|
|
16-bit digital I/O, 8-bit input/8-bit output |
|
|
1 x DVI-I, 1 x DisplayPort |
|
|
Dual DC power input |
|
 |
|
Enhanced Visual Experience |
|
|
|
 |
 |
 |
|
Support Intel® Virtualization Technology |
Automation |
Video HD Technology
Spectacular HD Playback |
|
|
|
|
Intel® Bay Trail Solution |
|
|
|
|
Intel® Bay-Trail SoC (system on chip) integrates with CPU and graphics. With the Gen 7 graphics and the DX11 and full HD support, the TANK-801-BT is a good solution for visual application.
|
■ Intel® Bay Trail Platform Transition
 |
 |
 |
SoC platform (2 chip to 1 chip)
22nm Processor Technology
NEW:
Quad Core CPU with Intel® Turbo Burst Technology |
NEW:
Intel® Gen7 Graphics (based on 3rd generation Intel® Core™ processor with Intel® HD Graphics 4000) with HW encode support |
|
|
■Intel® Bay Trail Graphics and Media Features |
|
3D Graphics
|
Video Decode
|
Video Encode
|
|
DX11.1, OGL 4.0, OGL ES 2.0,
OVG 1.1
|
H.264, MPEG2, MPEG4, VC1/WMV9, VP8 up to 1080p decode
|
H.264, MPEG2
|
|
|
|
|
|
|
|
Diversify Expansion Interface |
|
|
|
|
The TANK-801 series has three different expansion options on PCI and PCIe slot selection. Users can choose the suitable model for their application. |
|
Backplane |
TANK-801 |
|
Slot type |
Signal |
|
HPE-3S6 (2P1E) |
PCI |
PCI |
|
PCIe x16 |
PCIe x16 |
|
HPE-3S7 (1P2E) |
PCI |
PCI |
|
PCIe x4 |
PCIe x1 |
|
PCIe x16 |
PCIe x1 |
|
HPE-3PCI |
PCI |
PCI |
|
|
|
|
|
|
|

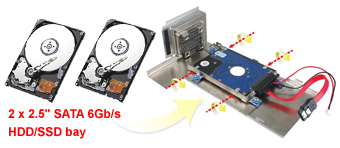

Easy of Installation |
|
|
|
|
Users can easily install SO-DIMM, PCIe Mini cards and expansion cards by removing the TANK-801’s top cover. A 2.5’’ SATA HDD/SSD bay is located on the top cover, which is very convenient for users to maintain the system. |
 |
|
|
|
|
Fully Integrated I/O |
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Model Name |
TANK-801-BT |
|
Chassis |
Color |
Black C + Silver |
|
Dimensions (WxHxD) (mm) |
136 x 219 x 188 |
|
System Fan |
Fanless |
|
Chassis Construction |
Extruded aluminum alloys |
|
Motherboard |
Processor CPU |
Intel® Celeron® J1900 2 GHz |
|
Chipset |
SoC |
|
System Memory |
One 204-pin DDR3L 1.35V SO-DIMM 2 GB pre-installed
(system max: 8G) |
|
IPMI |
iRIS Solution |
iRIS-2400 |
|
Storage |
Hard Drive |
1 x 2.5'' SATA 3Gb/s HDD/SSD bay |
|
CF Card/CFast |
1 x CFast |
|
I/O Interfaces |
USB 3.0 |
2 |
|
USB 2.0 |
2 |
|
Ethernet |
2 x RJ-45
1 x PCIe GbE by Intel® I210
1 x PCIe GbE by Intel® I211 |
|
RS-232 |
2 x DB-9 |
|
RS-422/485 |
2 x DB-9 RS-232/422/485 with isolation |
|
Digital I/O |
16-bit digital I/O, 8-bit input/8-bit output |
|
Display |
1 x DisplayPort, 1 x DVI-I |
|
Resolution |
DisplayPort: Up to 2560 x 1600 MHz
DVI-I: Up to 2560 x 1600 MHz |
|
Audio |
1 x Line-out, 1 x Mic-in |
|
Wireless |
802.1b/g/n 2T2R (optional) |
|
Expansions |
PCI/PCIe |
3A: One PCIe x1 + Two x PCI
3B: Two PCIe x1 + One x PCI
3C: Three x PCI |
|
PCIe Mini |
1 x Full size |
|
Power |
Power Input |
Terminal Block: 9 V~36 V DC
DC Jack: 9 V~36 V DC |
|
Power Consumption |
19 V@1.8 A
(Intel® Celeron® J1900 with 2 GB DDR3 memory) |
|
Reliability |
Mounting |
Wall mount |
|
Operating Temperature |
-20°C ~ 70°C with air flow (SSD),
5% ~ 95%, non-condensing |
|
Operating Shock |
Half-sine wave shock 5G, 11ms, 3 shocks per axis |
|
Operating Vibration |
MIL-STD-810F 514.5C-2 (with SSD) |
|
Weight (Net/Gross) |
2.8 kg/4.3 kg |
|
Safety/EMC |
CE/FCC |
|
OS |
Supported OS |
Microsoft® Windows® 8 Embedded,
Microsoft® Windows® Embedded Standard 7 E |
|
|
|
|
Ordering Information |
|
|
|
|
Part No. |
Description |
|
TANK-801-BTi-J1/2G/3A-R10 |
Fanless embedded system with two PCI and one PCIe x 1 expansion, Intel® Bay-Trail J1900 2 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x DVI-I, 1 x DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHs
|
|
TANK-801-BTi-J1/2G/3B-R10 |
Fanless embedded system with one PCI and two PCIe x 1 expansion, Intel® Bay-Trail J1900 2 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x DVI-I, 1 x DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHs
|
|
TANK-801-BTi-J1/2G/3C-R10 |
Fanless embedded system with three PCI expansion, Intel® Bay-Trail J1900 2 GHz, TDP 10W, 2 GB DDR3L pre-installed memory, 1 x DVI-I, 1 x DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHs
|
|
|
|
|
Options |
|
|
|
|
Item |
Part No. |
Description |
|
OS: Windows Embedded 7 (CD-ROM) |
TANK-801-WES7E-R10 801-WES7E-R10
(CD-ROM) |
OS Image with Windows® Embedded Standard 7 E for TANK-801 Series, with CD-ROM, RoHS |
|
|
|
|
Packing List |
|
|
|
|
1 x Utility CD |
1 x Power Adapter (With PSE & ErP Certified) |
1 x Chassis Screw |
|
1 x One Key Recovery CD |
1 x Power Cord |
1 x Mounting Bracket |
|
|
|
|
