IEI Launches the AFOLUX GEN III Interactive Panel PC - AFL3-W19C-ULT3
 Fanless Intel® Skylake Platform |
| |
|
 |
| Breakthrough Performance |
| • |
18.5" fanless light-industrial Panel PC with Intel® Skylake Low power ULT BGA 1356 single package platform |
| • |
14nm processor using 2nd generation 3-D tri-gate transistors |
| • |
Support dual-channel DDR4 memory |
| Enhanced Graphics / Media |
| • |
Gen 9 graphics engine |
| • |
3 independent displays with audio |
| • |
Display resolutions supporting up to 4K@60Hz |
|
|
| |
| ULT |
| Item |
8 Series |
9 Series |
100 Series |
| Platform Name |
Haswell |
Broadwell |
Skylake |
| Process |
22nm |
14nm |
14nm |
| CPU Package |
BGA1168 |
BGA1168 |
BGA1356 |
| Memory |
DDR3L |
DDR3/DDR3L 1600 |
DDR3L/DR4 |
| PCI Express Lanes |
Up to 8 Lanes PCIe (Gen2) |
Up to 12 PCIe (Gen2) |
Up to 12 PCIe (Gen3) |
| PCH |
PCH-LP |
PCH-LP |
PCH-LP
Premium/Base |
|
| |
 |
| Fanless Thermal Solution |
| IEI unique thermal design reduces the thermal space but with excellent air flow |
|
|
 |
| M.2 High Speed PCIe Storage |
| |
|
| AFL3-W19C-ULT3 with flexible storage options, mSATA, 2.5" HDD and M.2 M-key PCIe storage. |
|
|
|
| E-Window Tool Kit |
| |
|

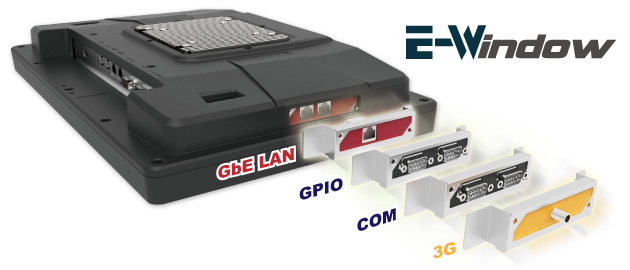

| Innovative E-windows technology is a new modular way of adding flexible functionality to a wide range of device. Using standardized component helps system integrators easily add more features without any costly efforts. |
| Features |
| • |
Easy maintenance |
| • |
Variety module & I/O plate with flexible customization |
| • |
Integration of multiple functions |
| • |
Easy for replacement with different modules |
|
 |
|
| Specifications |
| |
|
| Model |
AFL3-W19C-ULT3 |
| LCD |
Size |
18.5" |
| Resolution |
1366 x 768 (16:9) |
| Brightness (cd/m²) |
250 |
| Contrast Ratio |
1000:1 |
| LCD Color |
262K |
| Pixel Pitch (mm) |
0.240 (H) x 0.240 (V) |
| Viewing Angle (H-V) |
170º/160º |
| Backlight MTBF (hrs) |
30,000 (LED backlight panel) |
| Touch |
Touch Screen |
Projected capacitive type with USB interface |
| Touch Controller |
EETI EXC3180 |
| Motherboard |
CPU |
Intel® Core™ i5 and Celeron® ULT Processor |
| Chipset |
| RAM |
Two 260-pin DDR4 SO-DIMMs (system max.32GB) |
| Ethernet |
2 x Intel® I211-AT PCIe GbE controller |
| Audio Codec |
ALC892 |
| Storage |
(1) 1 x 2.5" SATA 3Gb/s HDD bay
(2) 1 x M.2 M key PCIe storage (2280 or 22110)
(3) 1 x mSATA slot |
| I/O Ports & Switch |
1 x RS-232 by DB-9 (RI/5V/12V)
1 x RS-232/422/485 by DB-9 (RI/5V/12V)
2 x GbE LAN
4 x USB 3.0
1 x HDMI output
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9-30V lockable power jack |
| E-Window Expansion |
Yes, optional |
| Audio |
AMP 3W + 3W (internal speakers) |
| Camera and Microphone |
2-megapixel with low light function, digital microphone |
| Wireless & Bluetooth |
IEEE 802.11a/b/g/n/ac, Bluetooth v4.0 (M.2 slot) |
| OSD Function |
Software OSD |
| Physical |
Front Panel Construction |
PC + ABS Plastic |
| Mounting |
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
| Color |
Black C |
| Dimensions (WxHxD) (mm) |
470 x 290 x 70 |
| Cut-out Dimensions (WxH) (mm) |
443 x 261 |
| Net/Gross Weight (kgs) |
7.3/10 |
| Environment |
Operating Temperature (°C) (Ambient with air flow) |
-20°C ~ 50°C |
| Storage Temperature (°C) |
-20°C ~ 60°C |
| Humidity |
10% to 95% (non-condensing) |
| IP Level |
IP 64 compliant front panel |
| Safety & EMC |
CE / FCC |
| Thermal Solution |
Fanless |
| Power |
Power Requirement |
9 V ~ 30 VDC |
| Power Consumption |
12V@6A |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| AFL3-W19C-ULT3-C/PC/4G-R10 |
Wide 18.5" 250 cd/m² 1366x768 Panel PC with with Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2 M camera, microphone, R10 |
| AFL3-W19C-ULT3-i5/PC/4G-R10 |
Wide 18.5" 250 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2 M camera, microphone, R10 |
|
|
|
