IEI Launches the New KINO-AQ170 Mini-ITX Motherboard

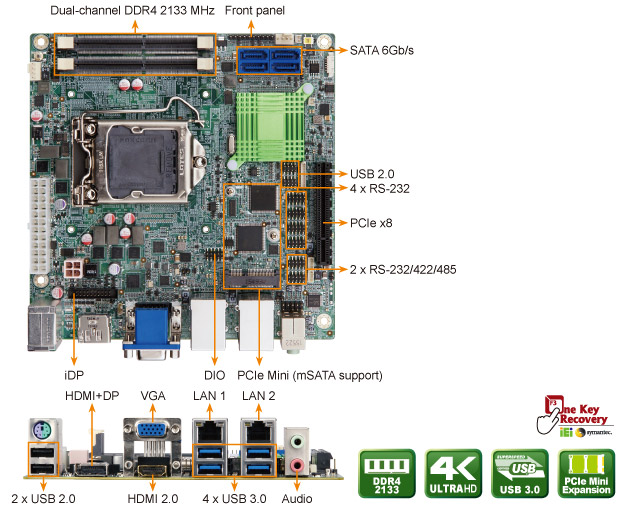

 Features |
| |
|
 |
| |
 |
Mini ITX form factor with 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor support DDR4-2133 memory |
|
Support HDMI 2.0 (4096x2160@60Hz) |
|
Dual Intel® GbE support Intel® AMT 11.0 |
|
Triple display via HDMI 2.0/HDMI/DP 1.2/VGA/iDP |
|
High speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA support |
|
 |

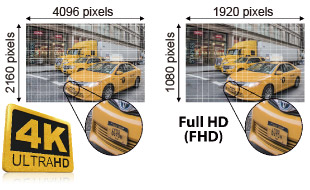

| HDMI 2.0 Ultra HD (4,096x2,160@60Hz) |
| |
|
| |
 |
| |
HDMI 1.4 |
HDMI 2.0 |
| Bandwidth |
10.2Gbps |
18Gbps |
| 4K@30hz |
Yes |
Yes |
| 4K@60hz |
No |
Yes |
| Up to 32 Audio Channels |
No |
Yes |
|
| |
|
| Specifications |
| |
|
| Model |
KINO-AQ170 |
| CPU |
LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor |
| System Chipset |
Intel® Q170 |
| BIOS |
AMI BIOS |
| Memory |
Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.
64 GB) |
| Graphics |
Intel® HD Graphics Gen 9 support for DX11/12, OCL 2.x, OGL 4.3/4.4, ES 2.0
Decode/Encode for HEVC, VP8, VP9 2, VDENC |
| Display Output |
Triple independent displays
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
1 x HDMI/DP (up to 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz) |
| Ethernet |
LAN1: Intel® I219LM with (Intel® AMT 11.0 support)
LAN2: Intel® I211 PCIe controller with NCSI support |
| External I/O Interface |
2 x USB 2.0
4 x USB 3.0 |
| Internal I/O Interface |
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
4 x USB 2.0 (2x4 pin, P=2.0) |
| Audio |
Realtek ALC662 HD Audio codec
2 x Audio jacks (line-out, mic-in) on rear IO
1 x Front audio (2x5-pin) |
| Front Panel |
1 x Front panel connector
(1x10 pin, power LED, HDD LED, speaker, power button, reset button) |
| LAN LED |
2 x LAN LED (1x2 pin) |
| SMBus |
1 x SMBus (1x4 pin) |
| I²C |
1 x I²C (1x4 pin) |
| Digital I/O |
1 x 8-bit digital I/O (2x5 pin) |
| Expansion |
1 x Full-size PCIe Mini slot (support mSATA)
1 x PCIe x8 slot
Chassis Intrusion: 1 x Chassis intrusion (1x2 pin) |
| Watchdog Timer |
Software programmable supports 1~255 sec. system reset by super I/O |
| Fan Connector |
1 x CPU smart fan (1x4 pin)
1 x System smart fan (1x4 pin) |
| Power Supply |
AT/ATX power |
| Power Consumption |
3.3V@1.62A, 5V@3.54A, 12V@8.17A, 5VSB@3.6A
(Intel® Core™ i7 6700K 4.0GHz CPU with 16 GB (two 8 GB) 2133 MHz DDR4 memory) |
| Operating Temperature |
-20°C ~ 60°C |
| Operating Humidity |
5% ~ 95%, non-condensing |
| Dimensions |
170mm x 170mm |
| Weight |
GW: 900g/NW:450g |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| KINO-AQ170-R10 |
Mini-ITX SBC supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor, HDMI 2.0/HDMI/DP/VGA, SATA 6Gb/s, dual Intel® GbE, USB 3.0, PCIe Mini, HD Audio and RoHS |
| 32001-008600-200-RS |
Dual USB cable |
| 32200-000049-RS |
RS-232 cable, 200mm |
| CF1156A-RS-R11 |
High-performance LGA1155/1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156C-RS |
LGA1155/1156 kit, 1U chassis compatible, 45W |
| CF-1156D-RS |
LGA1155/1156 kit, 1U chassis compatible, 65W |
| CF-1156E-R11 |
High-performance LGA1155/1156 cooler kit, 95W |
| DP-DP-R10 |
DisplayPort to DP converter board (for IEI connector) |
| DP-DVI-R10 |
DisplayPort to DVI-D converter board (for IEI connector) |
| DP-HDMI-R10 |
DisplayPort to HDMI converter board (for IEI connector) |
| DP-LVDS-R10 |
DisplayPort to 24-bit dual-channel LVDS converter board (for IEI connector) |
| DP-VGA-R10 |
DisplayPort to VGA converter board (for IEI connector) |
|
|
| Packing List |
| |
|
| 1 x KINO-AQ170 single board computer |
1 x One Key Recovery CD |
| 1 x I/O shielding |
1 x QIG |
| 2 x SATA cable |
1 x Utility CD |
|
|
|
