IEI Launches the New IMB-H110 microATX Motherboard
 Features |
| |
|
 |
| |
 |
6th generation LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
|
Dual-channel DDR4 2133MHz support up to 64GB |
|
Support Dual displays via VGA/DVI-I/LVDS |
|
USB 3.0 and SATA 6Gb/s supported |
|
12 COM & 12 USB |
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
 |

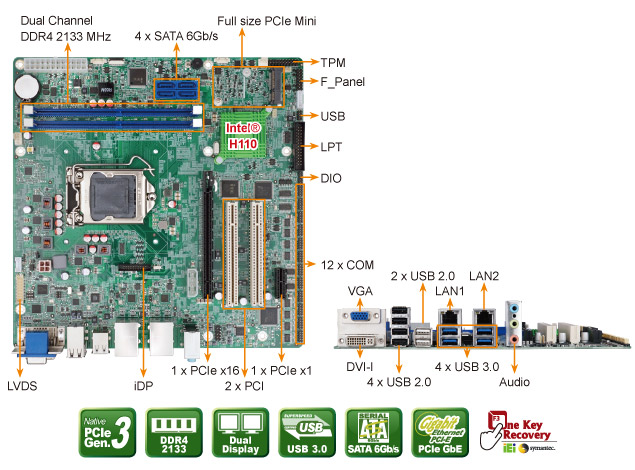

| Specifications |
| |
|
| Model |
IMB-H110 |
| CPU |
LGA1151 socket supports Intel® skylake-S |
| System Chipset |
Intel® skylake H110 |
| Memory |
Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB |
| BIOS |
AMI UEFI BIOS |
| Graphic Engine |
Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0 |
| Display Output |
Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP |
| Ethernet |
LAN1: RTL 8111GN controller
LAN2: RTL 8111GN controller |
| External I/O Interface |
4 x USB 3.0
6 x USB 2.0 |
| Internal I/O Interface |
| 1 x KB/MS (1x6 pin) |
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4) |
| 1 x LPT (2 x 13pin, P=2.54) |
2 x USB 2.0 (2x4 pin, P=2.0) |
| 4 x SATA 6Gb/s |
10 x RS-232 (2x5 pin, P=2.0) |
|
| LPC to COM |
F81866 |
| SMBus |
1 x SMBus (1x4 pin) |
| TPM |
1 x TPM (2x10 pin) |
| Audio |
Realtek ALC662 HD Audio Codec support 5.1 Channel, (2 Audio Jack colay 3)
Front Audio (2x5 pin) (Line-in, Line-out, Mic) |
| Front Panel |
1 x Front Panel (2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| LAN LED |
2 x LAN LED (1x2 pin) |
| I2C |
1 x I2C (1x4 pin) |
| Expansion |
| 1 x PCIe x16 slot (Gen3) |
1 x Full-size PCIe Mini card slot |
| 1 x PCIe x1 slot (Gen2) |
2 x PCI slot |
|
| Watchdog Timer |
Software programmable support 1~255 sec. system reset |
| Digital I/O |
8-bit Digital I/O (2x5 pin) |
| Fan Connector |
1 x CPU smart fan (1x4 pin)
1 x System fan (1x3 pin) |
| Power Supply |
ATX/AT Power Supply |
| Power Consumption |
3.3V@ 0.93A, 5V@2.99A, 12V@6.88A, 5VSB@0.02A
(Intel® Core™ i7-6700K 4.0GHz CPU with 16GB (two 8GB) 2133 MHz DDR4 memory) |
| Operating Temperature |
-20°C ~ 60°C |
| Storage Temperature |
-30°C ~ 70°C |
| Operating Humidity |
5% ~ 9%, non-condensing |
| Weight |
GW:1200g, NW: 700g |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| IMB-H110 |
microATX motherboard supports 14nm LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported, DDR4, Dual independent displays VGA/DVI-I/LVDS, Dual GbE LAN, USB 3.0, SATA 6Gb/s, HD Audio and RoHS |
| 19800-000049-RS |
LPT cable |
| 19800-000075-RS |
PS/2 KB/MS Y-cable with bracket, 220mm |
| 19800-000112-RS |
RS-232 & RS-422/485 cable, 300mm (P=2.00) |
| 32102-000100-200-RS |
SATA power cable, MOLEX 5264-4P to SATA15P |
| CF-1156A-RS-R11 |
High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156E-R11 |
High performance LGA1155/LGA1156 cooler kit, 95W |
| DP-DP-R10 |
DisplayPort to DisplayPort converter board (for IEI iDP connector) |
| DP-DVI-R10 |
DisplayPort to DVI-D converter board (for IEI iDP connector) |
| DP-HDMI-R10 |
DisplayPort to HDMI converter board (for IEI iDP connector) |
| DP-LVDS-R10 |
DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) |
| DP-VGA-R10 |
DisplayPort to VGA converter board (for IEI iDP connector) |
| TPM-IN01-R11 |
20-pin infineon TPM module, software management tool, firmware V3.17 |
|
|
| Packing List |
| |
|
| 1 x IMB-H110 motherboard |
1 x One Key Recovery CD |
| 1 x I/O shielding |
1 x QIG |
| 2 x SATA cable |
1 x Utility CD |
|
|
|
