IEI Launches the New Generation Rugged PDA - MODAT-532!!
 Features |
| |
|
 |
Stylish rugged design and ultra-light industrial Android mobile device |
 |
|
Quad-Core Cortex A53 64bit 1.5GHz Processor |
|
5.3” display PDA |
|
GSM 850/900/1800/1900 |
|
Optional WCDMA 2100/1900/850/900 4G LTE FDD(Band1,2,3,7,8,20), TDD(38,39,40,41) |
|
Micro USB port and microSD card slot (max. 32 GB) for maximum connectivity |
|
Android 5.0 OS |
|
1D/2D imager scan engine |
|
NFC (device to device communication, card reader) |
 |
 |
| Enterprise PDA Mobility Management Solution |
| |
|
|
Stylish rugged IP67 design and ultra-light industrial PDA/ EDA mobile device with Android 5.0 OS system |
 |
|
MODAT-532 NFC (Near field communication) can be used as mobile terminal which allows your association to identify users |
|
Enhancing on-duty staff work force and mobility, all data and information captured by MODAT-532 can be transferred via wireless communication providing real-time response without any lost. |
|
Quad-Core Cortex A53 64bit 1.5GHz Processor, 5.3” mobile PDA phone |
|
GSM 850/900/1800/1900 |
|
Optional WCDMA (2100,1900,850,900) 4G LTE FDD(Band1,2,3,7,8,20), TDD(38,39,40,41) |
|
|
| Specifications |
| |
|
| Model Name |
MODAT-532A-QA53-R10 |
MODAT-532A-QA53-ET-R10 |
| Display |
LCD size |
5.3” |
| Brightness (cd/m²) |
350 cd/m² |
| Max. Resolution |
540(H) x 960(V) |
| Viewing Angle |
80/80/80/80 Deg. |
| Touchscreen |
5-point capacitive |
| System |
CPU |
Quad-core Cortex A53 64bit 1.5GHz |
| Operating System |
Android 5.0 |
| Memory |
16GB eMMC
2G LPDDR2 |
| Storage |
microSD slot up tp 32GB |
| Communication |
Wi-Fi |
802.11a/b/g/n |
| Bluetooth |
4.0 LE |
| Modem |
GSM ( 800, 900, 1800, 1900)
WCDMA (2100, 1900, 850, 900) (Optional)
4G FDD(Band1,2,3,7,8,20), TDD(38,39,40,41) (Optional) |
| GPS |
GPS / Glonass) |
| Data Collection |
NFC |
Yes |
| Barcode |
1D/2D imager scan engine |
N/A |
| Camera |
13-megapixel AF rear camera |
| Indicators & Buttons |
LED Indicators |
Green/Red |
| I/O Interface |
Audio |
1x 0.5W Speaker
1x Headset / Mic-in |
| USB |
1x High-speed Micro USB 2.0 Host |
| Power |
Power Adapter |
5V/3A |
| Battery |
3900 mAh |
| Enviroments |
Operating Temperature |
-10°C ~ 50°C |
| Storage Temperature |
-20°C ~ 60°C |
| Humidity |
10% ~ 95%, non condensing |
| Drop Survival |
1.5m |
| Environmental Protection |
IP 67 |
| OS |
Dimensions (L x W x H) |
160.9 mm x 85.4 mm x 28.85 mm |
| Weight |
386 g |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| MODAT-532A-QA53-R10 |
5.3" 350 cd/m², Capacitance Touch, Android 5.0 PDA with Quad Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, GSM(3G, LTE), GPS, FM, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, RoHS
|
| MODAT-532A-QA53- ET-R10 |
3" 350 cd/m², Capacitance Touch, Android 5.0 PDA with Quad Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, GSM(3G, LTE), GPS, FM, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, RoHS
|
|
|

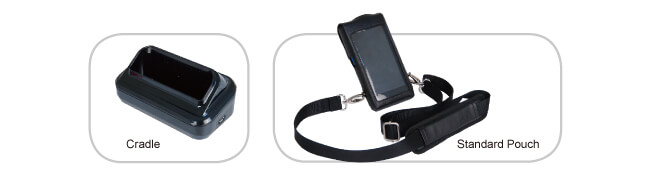

| Optional Accessory List |
| |
|
| Item |
Part No. |
Description |
| Cradle |
MODAT-531A-CR01-R10 |
MODAT-531 charging cradle |
| MODAT-531 Standard Pouch |
7Z000-MODAT531APOUCH |
MODAT-531A pouch, black |
 |
|
| Packing List |
| |
|
| Item |
Part No. |
Qty |
| USB Cable |
32001-014300-100-RS |
1 |
| AC-DC Adapter |
63040-480015-001-RS |
1 |
| Hand Strap |
46035-000300-RS |
1 |
|
|
| Cradle Specification |
| |
|
| Model |
Ram Mount |
| I/O Interface |
DC Input |
1 x Micro USB Jack |
| Power |
Power Supply |
5V/2.6A |
| Environment |
Operating Temperature |
-10°C ~ 50°C |
| Storage Temperature |
-20°C ~ 60°C |
| Humidity |
10% ~ 95% non condensing |
| Physical Characteristics |
Dimensions (LxWxH) (mm) |
115.0 x 66.0 x 50.4 |
| Weight |
194 g |
|
|
|
