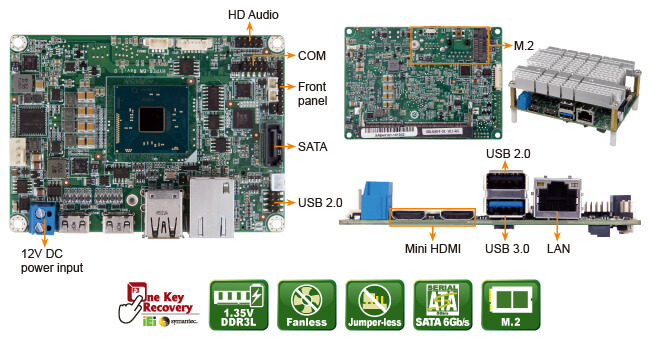

IEI Launches the New HYPER-BW Embedded Board
 Features |
| |
|
 |
| |
 |
Pico-ITX SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC |
|
IEI jumper-less function |
|
Dual independent display support |
|
1333/1600 MHz 1.35V DDR3L SDRAM up to 8 GB supported |
|
COM, USB 3.0, SATA 6Gb/s and Audio support |
|
1 x M.2 B key slot for expansion possibility |
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
| Specifications |
| |
|
| Model |
HYPER-BW |
| SoC |
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W) |
| BIOS |
AMI UEFI BIOS |
| Memory |
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM SO-DIMM slot support up to 8 GB |
| Graphics Engine |
Intel® HD Graphics Gen 8 Engine with 16 low-power execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2 |
| Display Output |
Dual independent display
2 x Mini HDMI (up to 3840x2160@30Hz) |
| Ethernet |
LAN1: Realtek RTL8111 controller |
| External I/O Interface |
1 x USB 2.0
1 x USB 3.0 |
| Internal I/O Interface |
1 x RS-232 (1x9 pin, P=1.25)
1 x SATA 6G/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0) |
| Audio |
1 x HD audio (2 x 5 pin, support 7.1 channel HD audiou by AC-KIT-892HD-R10) |
| Front Panel |
1 x Front panel (1x10 pin, power LED, HDD LED, power buttom, reset buttom) |
| LAN LED |
1 x LAN LED (1x2 pin) |
| Expansion |
1 x M.2 2242 (B key) |
| Fan Connector |
1 x Smart fan connector (1x4 pin) |
| Power Supply |
12V DC input only
1 x Power terminal block (1x2 pin)
Support AT/ATX mode |
| Power Consumption |
12V@1.52A (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory) |
| Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
| Operating Temperature |
-20°C ~ 60°C |
| Storage Temperature |
-30°C ~ 70°C |
| Operating Humidity |
5% ~ 95%, non-condensing |
| Vibration |
3G |
| Dimensions |
100mm x 72mm |
| Weight |
GW:30g / NW:250 |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| HYPER-BW-N4-R10 |
Pico-ITX SBC with Intel® Pentium® 14nm quad-core N3710 up to 2.56GHz (6W) on-board SoC with dual Mini HDMI, PCIe GbE, M.2, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS |
| HYPER-BW-N3-R10 |
Pico-ITX SBC with Intel® Celeron® 14nm quad-core N3160 up to 2.24GHz (6W) on-board SoC with dual Mini HDMI, PCIe GbE, M.2, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS |
| HYPER-BW-N2-R10 |
Pico-ITX SBC with Intel® Celeron® 14nm dual-core N3060 up to 2.48GHz (6W) on-board SoC with dual Mini HDMI, PCIe GbE, M.2, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS |
| HYPER-BW-N1-R10** |
Pico-ITX SBC with Intel® Celeron® 14nm dual-core N3010 up to 2.24GHz (4W) on-board SoC with dual Mini HDMI, PCIe GbE, M.2, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS |
| 32001-008600-200-RS |
Dual-port USB cable |
| AC-KIT-892HD-R10 |
Realtek ALC892 7.1 Channel HD Audio peripheral board, RoHS |
| ** By order production, MOQ: 100 |
|
|
| Packing List |
| |
|
| 1 x HYPER-BW single board computer |
1 x One Key Recovery CD |
| 1 x RS-232 cable |
1 x QIG (Quick Installation Guide) |
| 1 x SATA with power cable kit |
1 x Utility CD |
|
|
|
