IEI Launches the Latest Slim LCD Kit Series!! Meet your Diverse Needs!!
 Wide Temperature Support |
| |
|
|
Support -20°C~60°C wide range temperature Ideal for outdoor or semi-outdoor applications
|
|
|
|
 |
| Slim Design |
| |
|
|
Slim design, 20% thinner than LCD-KIT series
|
|
|
|
|
| Flexible Mounting Support |
| |
|
|
|
|
| Specifications |
| |
|
| Model |
LCD-KIT-F12A |
LCD-KIT-F15A |
LCD-KIT-F17A |
LCD-KIT-F19A |
| LCD Size |
12.1” |
15” |
17” |
19” |
| Max. Resolution |
1024 x 768 |
1024 x 768 |
1280 x 1024 |
1280 x 1024 |
| Brightness (cd/m²) |
600 |
450 |
350 |
350 |
| Contrast Ratio |
700:1 |
800:1 |
800:1 |
1000:1 |
| Display Color |
16.2M |
16.2M |
16.7M |
16.7M |
| Pixel Pitch (mm) |
0.24 |
0.297 |
0.264 |
0.294 |
| Viewing Angle (H/V) |
160°/140° |
160°/150° |
170°/160° |
170°/160° |
| Input Interface |
Analog VGA, DVI-D, RS-232/USB (Optional for Touch) |
| Touchscreen & controller |
Resistive type 5-wire single touch / Penmount 6000 or Projected capacitive 2-point touch / EETI EXC7200 (Assembly by adhesive tape) |
| OSD Function |
5-key OSD |
| smartOSD |
Yes |
Dimensions
(W x H x D) (mm) |
323.8 x 263.8 x 40.3 |
380.1 x 304.6 x 43.2 |
410 x 343 x 49.4 |
449 x 374 x 49.45 |
| Operating Temperature |
-20°C~60°C |
| Storage Temperature |
-20°C~70°C |
| Input Voltage |
12VDC |
| Construction Material |
Sheet metal rear cover SPCC |
| Mounting |
Panel Mount, Rear Mount, VESA 100 |
|
|
| I/O Interface |
| |
|
|
|
|

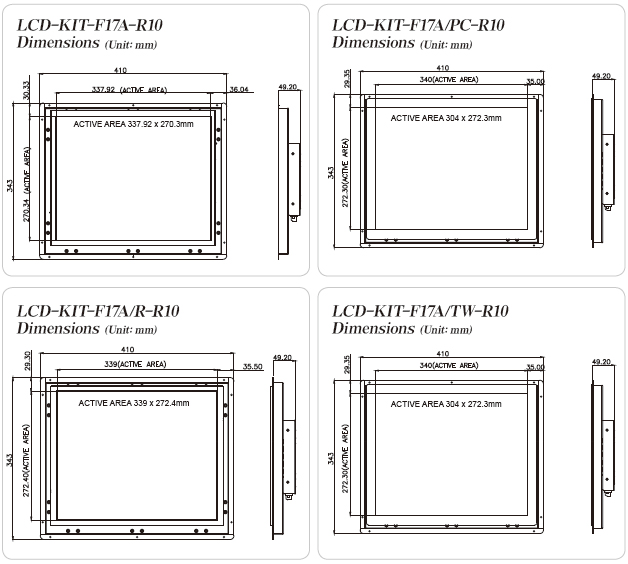

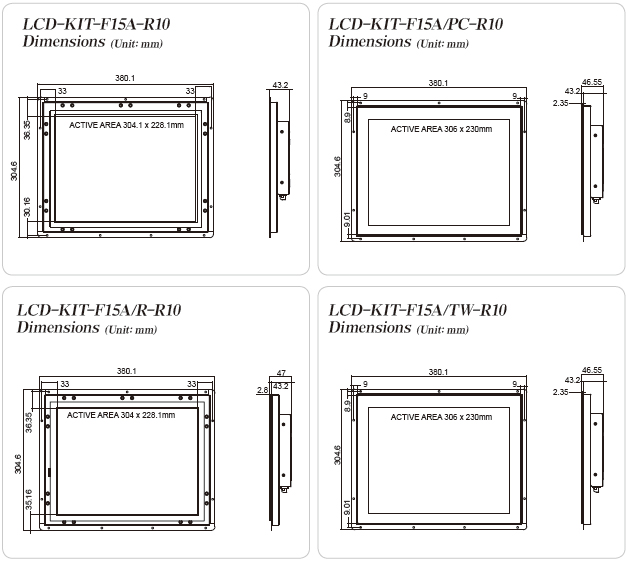

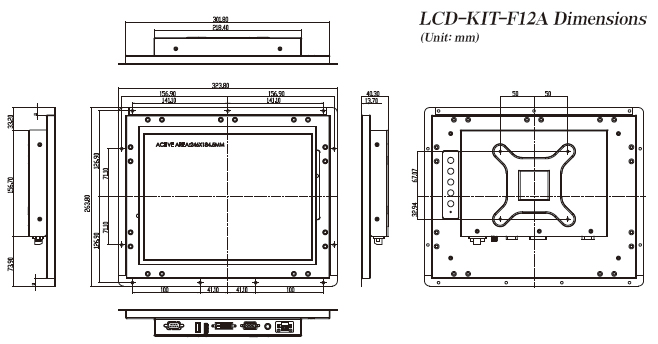

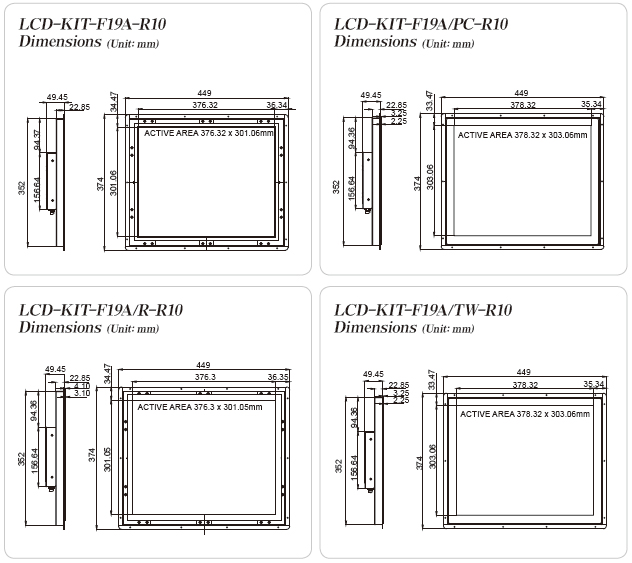

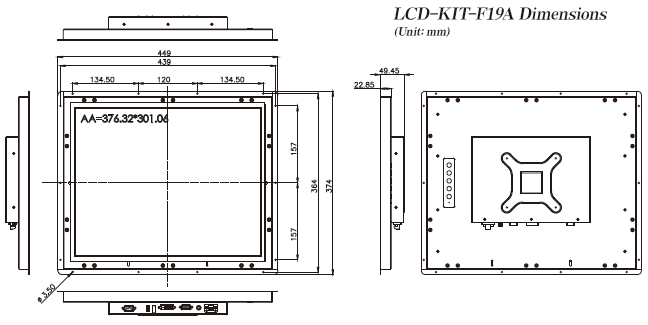

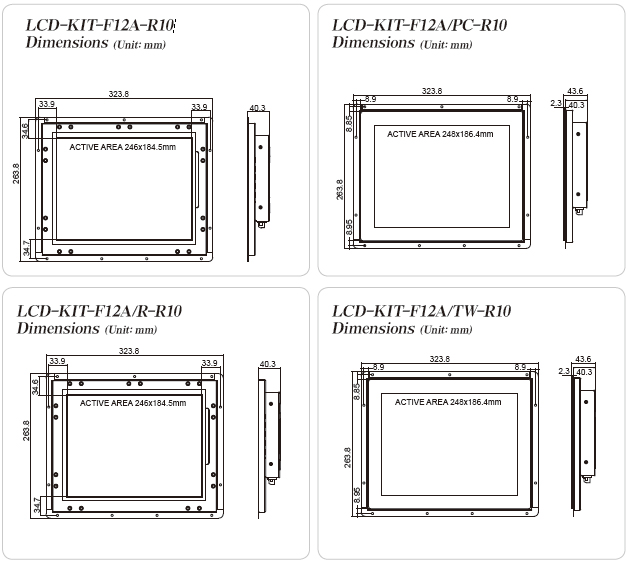

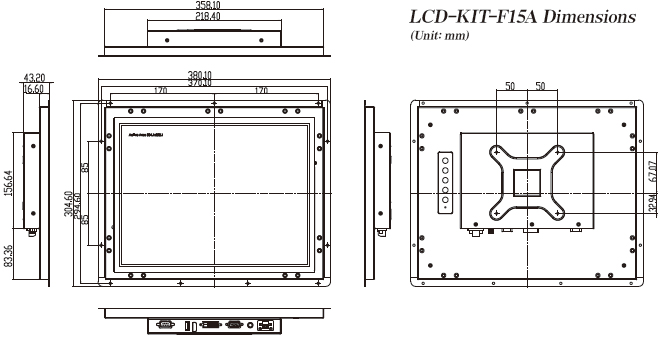

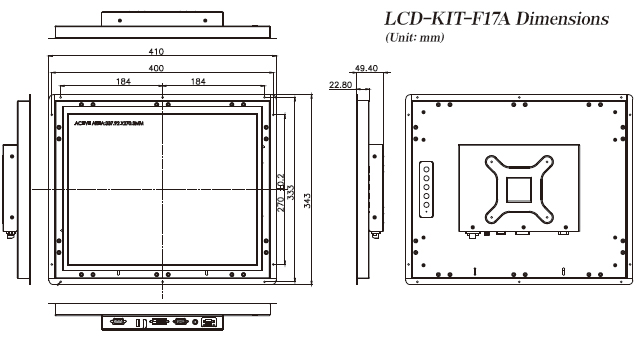

| Dimensions |
| |
|
 |
 |
| --------------------------------------------------------------------------------------------------------- |
 |
 |
| --------------------------------------------------------------------------------------------------------- |
 |
 |
| --------------------------------------------------------------------------------------------------------- |
 |
 |
|
| Ordering Information |
| |
|
| |
|
 |
| Part Number |
Description |
| LCD-KIT-F12A-R10 |
12.1" 600 cd/m² XGA open frame monitor, VGA and DVI-D input, R10 |
| LCD-KIT-F15A-R10 |
15" 450 cd/m² XGA open frame monitor, VGA and DVI-D input, R10 |
| LCD-KIT-F17A-R10 |
17" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, R10 |
| LCD-KIT-F19A-R10 |
19" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, R10 |
|
| |
|
| |
Resistive Touch |
 |
| Part Number |
Description |
| LCD-KIT-F12A/R-R10 |
12.1" 600 cd/m² XGA open frame monitor, VGA and DVI-D input, Resistive touch screen RS-232/USB interface,R10 |
| LCD-KIT-F15A/R-R10 |
15" 450 cd/m² XGA open frame monitor, VGA and DVI-D input, Resistive touch screen RS-232/USB interface,R10 |
| LCD-KIT-F17A/R-R10 |
17" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Resistive touch screen RS-232/USB interface,R10 |
| LCD-KIT-F19A/R-R10 |
19" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Resistive touch screen RS-232/USB interface,R10 |
|
| |
|
| |
Flat Resistive Touch |
 |
| Part Number |
Description |
| LCD-KIT-F12A/TW-R10 |
12.1" 600 cd/m² XGA open frame monitor, VGA and DVI-D input, Resistive touch window RS-232/USB interface,R10 |
| LCD-KIT-F15A/TW-R10 |
15" 450 cd/m² XGA open frame monitor, VGA and DVI-D input, Resistive touch window RS-232/USB interface,R10 |
| LCD-KIT-F17A/TW-R10 |
17" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Resistive touch window RS-232/USB interface,R10 |
| LCD-KIT-F19A/TW-R10 |
19" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Resistive touch window RS-232/USB interface,R10 |
|
| |
|
| |
Flat P-CAP Touch |
|
| Part Number |
Description |
| LCD-KIT-F12A/PC-R10 |
12.1" 600 cd/m² XGA open frame monitor, VGA and DVI-D input, Projected capacitive touch window USB interface,R10 |
| LCD-KIT-F15A/PC-R10 |
15" 450 cd/m² XGA open frame monitor, VGA and DVI-D input, Projected capacitive touch window USB interface,R10 |
| LCD-KIT-F17A/PC-R10 |
17" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Projected capacitive touch window USB interface,R10 |
| LCD-KIT-F19A/PC-R10 |
19" 350 cd/m² SXGA open frame monitor, VGA and DVI-D input, Projected capacitive touch window USB interface,R10 |
|
| |
|
| |
9~36VDC Module |
 |
| Part Number |
Description |
| LCD-KIT-F-936160-R10 |
60W DC/DC 9~36V input 12V output power kit, R10 |
|
|
| Options |
| |
|
| Item |
Part Number |
| RS-232 cable (for Touch) |
32005-001100-200-RS |
| DVI cable |
32000-086600-RS |
| Panel mount kit |
FPK-01-R10 (LCD-KIT-F-12A/LCD-KIT-F-15A) |
| Panel Mount Kit |
FPK-02-R10 (LCD-KIT-F-17A/LCD-KIT-F-19A) |
-
|
|
| Packing List |
| |
|
| Item |
Part No. |
Q’ty |
| AC power cable |
|
1 |
| VGA cable |
32000-036200-RS |
1 |
| USB cable (for Touch) |
32001-006100-200-RS |
1 |
| AC power adapter |
63040-010036-121-RS |
1 |
| Utility CD |
|
|
|
|
|
