IEI Launches 24” DM-F IP65 Industrial Monitor DM-F24A
 Features |
|
|
|
 |
Robust IP65 aluminum front bezel |
|
HDMI / DisplayPort / VGA flexible video input solution |
|
|
Aesthetic ultra-thin bezel for seamless panel mount installation |
|
Projected capacitive multi-touch / resistive single
touch options |
|
|
Wide range 9V~36V DC input |
|
Wide temperature support |
 |
|
 |
|
Flexible Video Input Selection |
|
|
|
|
DM-F provides comprehensive video input from conventional analog VGA to broad bandwidth digital HDMI and DisplayPort to fulfill different needs. |
 |
 |
■ Benefits of DisplayPort |
• 17.28 Gbit/s broad bandwidth for faster transmission
• 15M for 1080p 60fps long transmission distance
• Blu-ray disc content support
• Lockable cables against vibration
• Downward convertible for HDMi and DVI |
 |
■ Benefits of HDMI |
• Single-link bandwidth to 340 MHz (10.2 Gbit/s)
• Blu-ray disc content support
• Downward convertible for DVI |
|
|
|
|
9V~36V Wide Range DC Input |
|
|
|
 |
Power requirement varies from applications. DM-F series provides 9V~36V DC input which simplifies system integration through adapter or DC source. |
|
|
|
|
|
|

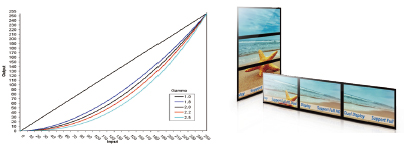

Gamma Correction - Pursuit of Perfection |
|
|
|
 |
Gamma correction enables each panel model to follow the specified look-up-table (LUT) in gamma curve doing color adjustment through software encode. In this way, various monitors can display in an unified color by following Gamma 2.2 standard for PC products, ensuring color consistency for multiple monitor applications. |
|
|
|
|
Wide Operating Temperature |
|
|
|
 |
Design for outdoor applications, DM-F series support wide operating temperature from -20°C to 60°C for 12” to 17” models. 22” and 24” are by project request. |
|
|
|
|
OSD Keypad on Back |
|
|
|
 |
In order to keep the front panel simple and clean, the membrane keypad of the DM-F series is located on the rear panel to prevent the possibility to adjust the setting accidentally. |
|
|
|
|
Cable Cover for Neat Cabling |
|
|
|
 |
The DM-F series provides an optional cable cover for easy and neat cabling. |
|
|
|
|

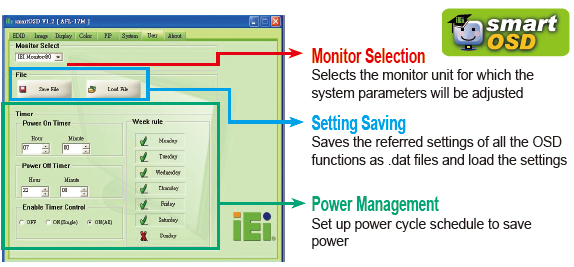

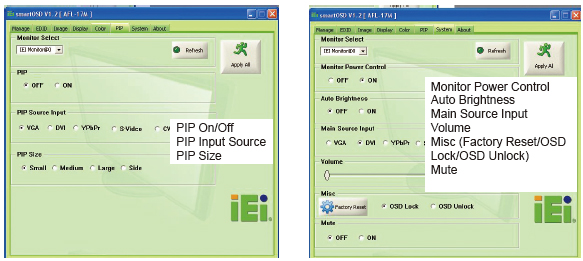

SmartOSD Remote Monitor Adjustment |
|
|
|
|
Asides from physical membrane keypad, IEI also provides smartOSD software application to help users to adjust monitor color settings and power management setting from a PC control terminal. |
 |
 |
|
|
|
|
Specifications |
|
|
|
|
Model Name |
DM-F24A |
|
Display |
LCD Size |
24’’ (16:9) |
|
Max Resolution |
1920(W) x 1080(H) |
|
Brightness (cd/m²) |
250 |
|
Contrast Ratio |
3000 : 1 |
|
LCD Color |
16.7M |
|
Pixel Pitch (mm) |
0.28mm x 0.28mm |
|
Viewing Angle (H-V) |
178°/178° |
|
Backlight MTBF (Hrs) |
30000 |
|
Touchscreen |
Touch Screen |
Projected capacitive 2-point touch window with USB interface |
|
Touch Controller |
EETI EXC3000 |
|
Surface Hardness |
6H |
|
Input Interfaces |
I/O Ports |
1 x VGA (DB-15)
1 x HDMI
1 x Display Port 1.1
1 x USB 2.0 (Touch)
1 x RS-232 (Touch) [Reserved for resistive touch ATO]
1 x Lockable 9V~36V DC jack
1 x 9V~36V terminal block |
|
OSD |
OSD Button |
7-key membrane OSD Keypad |
|
Smart OSD Software |
Smart OSD Software |
|
Physical |
Construction Material |
Aluminum front cover and sheet metal rear cover |
|
Mounting |
Panel Mount / 100 * 100 VESA Mount |
|
Enclosure Color |
Black C |
|
Dimension (mm) |
382 X 600 X 49.4 |
|
Cutout Dimensions (mm) |
358.6 X 576.6 |
|
Weight (Net / Gross) |
7.6 / 10.9 |
|
Environment |
Operating Temperature
(with air flow) |
-10°C~50°C |
|
Storage Temperature |
-20°C~60°C |
|
Humidity |
10% to 95% |
|
IP Level |
IP 65 compliant front panel |
|
Safety and EMC |
CE & FCC certified |
|
Power |
Power Adapter |
63040-010060-040-RS 12V 60W with lock (ATO by option) |
|
Power Input |
9V~36V DC |
|
|
|
|
Fully Integrated I/O |
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
Part Number |
Description |
|
DM-F24A/PC-R10 |
24” 250 cd/m² FHD LCD monitor, Aluminum front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R10 |
|
|
|
|
Options |
|
|
|
|
Item |
DM-F24A |
|
Power Adapter |
63040-010060-040-RS (Meet PSE) |
|
ARM |
ARM-31-RS |
|
Stand |
STAND-C19-RS
STAND-A21-R10 |
|
Wall Mount Kit |
WK-190MS-R10 |
|
Panel Mount Kit |
FPK-03-R10 |
|
Cable Cover |
DM-F-CC02-R10 |
|
HDMI Cable |
32012-000800-100-RS |
|
DisplayPort Cable |
32004-000200-100-RS |
|
|
|
|
Packing List |
|
|
|
|
Item |
P/N |
Q'ty |
Description |
|
Driver CD |
|
1 |
Drivers and user manual |
|
Touch Pen |
43125-0002C0-00-RS |
1 |
Resistive touch only |
|
USB Cable |
32001-006100-100-RS |
1 |
For touch screen |
|
VGA Cable |
32000-036200-RS |
1 |
|
|
|
|
|
