IEI introduce the latest smart factory solutions
 |
 |
IEI Smart Factory Solution
Developing and Perfecting Your Smart Factory |
|

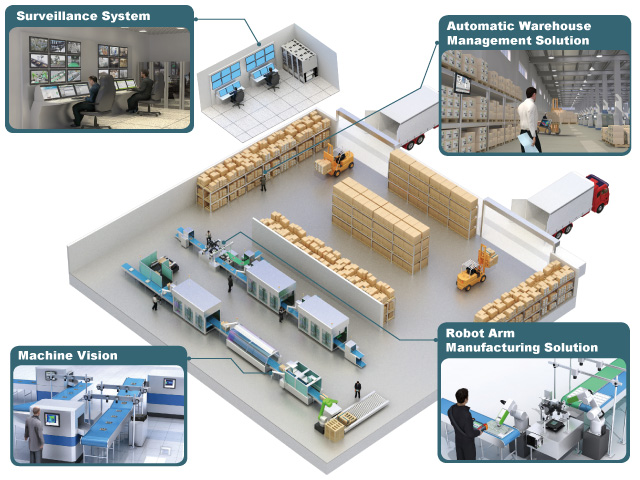

Enabling Smart Factories
IEI's smart factory solution improve production efficiency and warehouse management accuracy. To catch the wave of automatic assembly, robot system will be a major role along with machine vision and motion control solutions. For factory automation control terminals, the industrial computing solutions are robust IP65 design, wide temperature, and flexible in add-on card expansion. To elevate efficiency of warehouse management, IEI provides UHF RFID and 1D/2D barcode reader solution with various form factors.
|
 |
|
Surveillance System |
 |
Delivering high-performance, high-definition video encoding (1080p) at only 380 mW, the IEI devices for smart factory application have the abilities to stream the video recorded on the IEI capture box directly to tablets and smart phones. It is an easy way to add surveillance features on your existing embedded system, panel PC or tablet PC. |
|
 |
|
DM-F Series |
|
IP 65 Flat Bezel Industrial Monitor |
|
• |
6.5" to 24" inch resistive /PCAP monitor |
|
• |
Extended operating temperature: -20°C ~ 60°C |
|
|
 |
|
HDC-301MS |
|
1-channel PCIe Mini Capture Card |
|
• |
1-channel HDMI video capture card with H.264 hardware codec |
|
• |
Video scaling down compression |
|
• |
Windows® 7 32-bit/64-bit & Linux Ubuntu 10.04 |
|
• |
Record and stream video over networks or the Internet: VideoLAN VLC, AMCap and other DirectShow compatible software |
|
|
 |
|
HDB-301L |
|
1-channel Capture Box |
|
• |
1-channel capture box with one HDMI input, one HDMI output and H.264 hardware codec |
|
• |
High definition recorder for PC, full HD 1920 x 1080 |
|
• |
Video scaling down compression |
|
• |
Windows® 7 32-bit/64-bit & Linux Ubuntu 10.04 |
|
• |
Record and stream video over networks or the Internet: VideoLAN VLC, AMCap and other DirectShow compatible software |
|
|
|
|
|
Automatic Warehouse Management Solution |
 |
|
AFL3 PPC Series |
|
Light Industrial Panel PC |
|
• |
Plastic housing with IP 65 front protection |
|
• |
PCAP/resistive touch screen |
|
• |
Fanless Intel® Baytrail processor |
|
|
 |
|
PPC-F Series |
|
Heavy Industrial Panel PC |
|
• |
Metal Housing with IP 65 front protection |
|
• |
Fanless Intel® Baytrail processor |
|
• |
PCAP/resistive touchscreen |
|
|
 |
|
UPC-V315-QM77 |
|
Forklift Panel PC |
|
• |
QM77 Fully IP65 compliant |
|
• |
Fanless Intel® QM77 with Intel® Core™ i7/i3/Celeron Processor |
|
• |
Wireless/Bluetooth/RFID |
|
|
 |
|
ICEROCK3-T10-HU-R10 |
|
Tablet PC |
|
• |
10.1" 350 cd/m2 TFT LCD with capacitive touch |
|
• |
Intel® Celeron™ 1047UE 1.4 GHz processor |
|
• |
Fully IP 65 protection |
|
• |
Bluetooth/WiFi/3.75G/GPS/1D2D barcode reader/RFID |
|
|
|
|
|
|
|
Machine Vision |
 |
|
IOVU Series |
|
HMI Risc Panel PC |
|
• |
Freescale™ i.MX6 Cortex™-A9 (quad core, 1.0 GHz) |
|
• |
Projected capacitive touchscreen, wireless, Bluetooth |
|
• |
Android 4.2 OS |
|
• |
One CAN 2.0 and four GPIO |
|
|
 |
|
PCIE-VC400 |
|
Video Capture Card |
|
• |
4-channel video input,total 120fps@D1 |
|
• |
Provide Windows DLL library (compatible with NI vision & OpenCV) |
|
|
 |
|
ITDB-100L / ITDB-100HD |
|
High Speed 2D Barcode Reader |
|
• |
Supporting remote monitoring and control via PC/NAS/Android phones & tablets |
|
|
 |
|

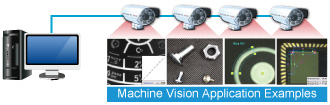

HSC-U032MS |
|
USB 3.0 Lightweight Camera |
|
• |
Supporting SuperSpeed USB 3.0 & opto-isolated external GPIO, up to 60fps |
|
• |
Supporting OpenCV. Open eVision & MIL |
|
|
 |
|
|
|
|
|
Robot Arm Manufacturing Solution |
 |
|
7A6 |
|
Robot Arm |
|
• |
Payload: 7kg |
|
• |
Rotation: 6-axis |
|
• |
Speed: 6165 mm/s |
|
|
 |
|
Robot-TP-65M |
|
6.5" Teach Pendant |
|
• |
33-key programmable keypad |
|
• |
Completely dust and splash proof (IP 64) |
|
• |
Drop test: 1 meter |
|
• |
Robot stop button, three-position enabling switch and mode changeover switch |
|
|
 |
|

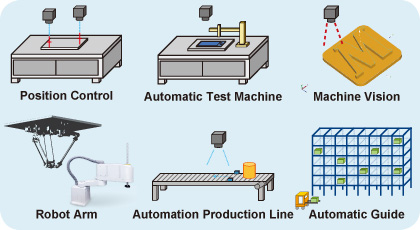

MDH-1000 |
|
Robot Controller |
|
• |
Fanless design |
|
• |
8 axes of pulse type motor control |
|
• |
4-axis servo/step motor and 4-axis step motor |
|
• |
4-axis A/B phase encoder input with 32-bit counter |
 |
|
|
|
|
|
Light Industrial Panel PC |
|
|
 |
 |
 |
 |
|
Model |
AFL3-W07A-BT-R10 |
AFL3-W10A-BT-R10 |
AFL3-12A-BT-R10 |
|
Size |
7" |
10.1" |
12.1" |
|
Resolution |
1024 x 600 (16:9) |
1280 x 800 (16:9) |
1024 x 768 (4:3) |
|
Touchscreen |
Projected capacitive type |
Projected capacitive type |
5-wire resistive type/projected capacitive type with USB interface |
|
CPU / Chipset |
Intel® Celeron® N2807 dual core 1.58 GHz |
Intel® Celeron® J1900 on-board SoC quad core, 2 GHz |
|
Input / Output |
2 x RS-232 COM port
(DB-9 connector)
2 x USB 3.0
2 x GbE LAN
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9 V-30 V lockable power jack |
1 x RS-232 COM port (DB-9 connector)
1 x RS-232/422/485 COM port (DB-9 connector) (RI/5V/12V)
2 x USB 3.0
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
1 x Reset button
1 x AT/ATX switch
1 x 9 V-30 V DC lockable power jack |
|
Construction |
ABS+PC |
|
Mounting |
Panel, Wall, Stand, Arm VESA 75mm x 75mm |
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
Operating Temperature
(ambient with air flow) |
-20°C ~ 50°C |
-10°C ~ 50°C |
-20°C ~ 50°C |
|
Storage Temperature |
-20°C ~ 60°C |
-20°C ~ 60°C |
-20°C ~ 60°C |
|
Power Requirement |
9 V-30 V DC |
|
|
 |
 |
|
Model |
AFL3-W15A-BT-R10 |
AFL3-W15B-H81-R10 |
|
Size |
15.6" |
|
Resolution |
1366 x 768 (16:9) |
|
Touchscreen |
5-wire resistive type / projected capacitive type |
|
CPU / Chipset |
Intel® Celeron® J1900 on-board SoC (quad core, 2 GHz) |
Intel® Core™ i7/i5/i3, Pentium®, Celeron® processor (TDP 35W)/Intel H81 |
|
Input / Output |
1 x RS-232 COM port
1 x RS-232/422/485 COM port by DB-9 (RI/5V/12V)
2 x USB 2.0
2 x USB 3.0
2 x GbE LAN
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Audio port (line-out)
1 x 9 V-30 V lockable power jack |
1 x RS-232/422/485 by DB-9 (RI/5V/12V)
2 x GbE LAN
4 x USB 2.0
2 x USB 3.0
1 x HDMI output
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Audio port (line-out)
1 x 9 V-30 V lockable power jack |
|
Construction |
ABS+PC |
|
Mounting |
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
Operating Temperature
(ambient with air flow) |
-20°C ~ 50°C |
|
Storage Temperature |
-20°C ~ 60°C |
|
Power Requirement |
9 V-30 V DC |
|
|
|
| |
