IEI Launches POC-W22A-H81 Medical Panel PC
 Features |
|
|
|
 |
W21.5” 16:9 LED panel with FHD (1920 x 1080) |
|
IP65 compliant front bezel |
|
|
Projected capacitive touch screen supports multi-touch |
|
4th generation Intel® Core™ i5/i3/Pentium® CPU |
|
|
Anti-bacteria cover |
|
Optional VoIP phone handset |
|
|
Optional Mifare RFID module |
|
Optional internal 54W battery module |
|
|
Optional 3-in-1 card reader: MSR, SCR and fingerprint |
|
Optional handle module with barcode scanner and reading light |
 |
|
 |
|

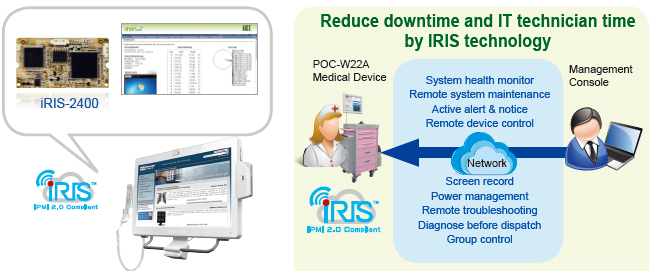

IEI IRIS Technology Facilitates Remote Management |
|
|
|
|

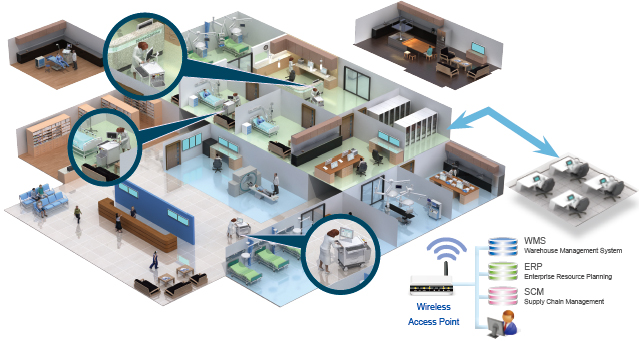

Point of-Care terminals are typically scattered in many different locations throughout a hospital. IEI Remote Intelligent System (IRIS) is now offering advanced management capabilities based on IPMI 2.0. It provides POC-W22A devices with remote monitoring and management capabilities for critical managed items. It allows staffs to manage, monitor, and maintain the distributed POCW22A terminals remotely irrespective of where they are located within the hospital. |
 |
 |
|
|
|
|
|
|
Key Features |
|
|
|
|
|
|
|
|
|
|

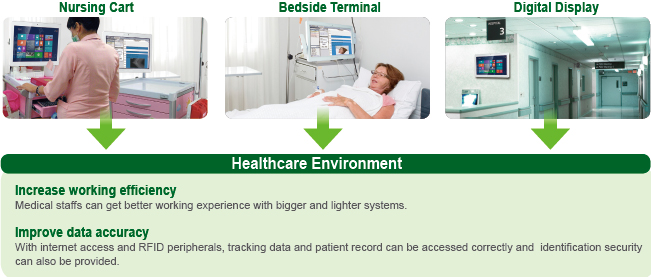

Integrated Healthcare Solutions and Clinical Information System |
|
|
|
|
|
 |
|
|
|
|
|
Rich IO Port for External Expansion |
|
|
|
|

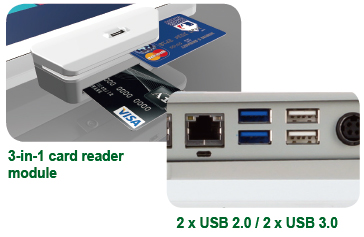

The new POC-W22A is outfitted with six USB ports for kinds of expansions. With the PPC installed on a medical cart, nurses can type patient information with the connected keyboard and mouse. A smart card reader can also be installed to identify correct ID. |
 |
|
|
|
|
Prevent the Sudden Shutdown |
|
|
|
The new POC-W22A can be installed with a 54W backup battery which can provide back-up power for up to 30 minutes in power failure. To prevent emergency situation, such as when the power adapter cable is accidentally
unplugged, use our battery to provide continuous power in case of system shutdown. |
 |
|
|
|
|
|
|
Specifications |
|
|
|
|
Model Name |
POC-W22A-H81 |
|
LCD |
LCD Display |
W21.5'' (16:9) |
|
Max Resolution |
1920 (W) x 1080 (H) |
|
Brightness (cd/m²) |
250 |
|
Contrast Ratio |
1000 : 1 |
|
LCD Color |
16.7M |
|
Pixel Pitch (mm) |
0.24825 (H) x 0.24825 (V) |
|
Viewing Angle (H-V) |
170°/160° |
|
Backlight MTBF (Hrs) |
30000 (LED backlight) |
|
Touch |
Touchscreen |
Projected capacitive type with USB interface |
|
Touch Controller |
EETI: EXC7200 + EX5404 |
|
Surface Hardness |
6H |
|
System |
CPU Support |
4th generation Intel® Core™ i5/i3/Pentium® CPU |
|
Chipset |
Intel® H81 |
|
RAM |
Two 204-pin 1600/1333MHz dual-channel DDR3 SDRAM, 4GB pre-installed (system max.16GB) |
|
I/O Port |
1 x RS-232/422/485
2 x GbE LAN by RJ-45 (1 for iRIS)
1 x Power button
1 x VGA output
1 x HDMI output
1 x 9V~28V DC Jack
2 x USB 3.0
4 x USB 2.0 (2 for bottom and 2 for side)
1 x RJ-11 for barcode module
|
|
Storage |
1 x 2.5" SATA HDD bay |
|
Audio |
2 x 3W speaker |
|
Webcam & Microphone |
2-megapixel CMOS front-facing camera with auto-focus and digital microphone |
|
Expansion Interface |
1 x PCIe Mini for Wi-Fi module, 1 x PCIe Mini reserved |
|
LED Indicator |
2-light battery status LED, RFID indicator LED |
|
Other Features |
Mifare RFID |
Optional: Mifare 13.56 MHz card reader |
|
Function Key |
1 x LCD on/off
1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock button for cleaning
Combinations:
1 x Lock/Unlock OSD
1 x Power on/off |
|
Light Sensor |
Ambient light sensor for panel brightness adjustment |
|
Battery |
Optional built-in 54W battery pack (30 mins) |
|
Remote Monitoring |
1 x iRIS-2400 slot (iRIS remote management model) |
|
Connectivity |
Wireless |
IEEE 802.11 a/b/g/n/ac 1T1R module |
|
Physical |
Construction Material |
ABS+PC plastic with anti-bacterial material |
|
Mounting |
VESA 100 x 100 |
|
Dimensions (WxHxD) |
542.5 mm x 349.5 mm x 52 mm |
|
Environment |
Operating Temperature |
0°C~40°C |
|
Storage Temperature |
-20°C~60°C |
|
Humidity |
10% to 95% (non-condensing) |
|
Vibration |
1G |
|
Shock |
Operating Shock: 5G peak acceleration (11ms duration)
Non-Operating Shock: 15G peak acceleration (11ms duration) |
|
IP Level |
IP65 compliant front panel |
|
Power |
Power Input |
9V~28V DC input |
|
Power Adapter |
120W medical power adapter: Input: 100V~240V AC, Output: 19VDC |
|
|
|
|
Ordering Information |
|
|
|
|
|
Description |
|
POC-W22A-H81i-P/PC/4G-R11 |
21.5” 250cd/m² FHD medical panel PC with Intel® H81 chipset, Intel® Pentium® G3320TE processor (dual core, 2.3 GHz, TDP 35W), two 2 GB DDR3 RAM, 802.11a/b/g/n/ac Wi-Fi module, projected capacitive touchscreen, 2M camera, microphone, support iRIS-2400, R11 |
|
POC-W22A-H81i-i3/PC/4G-R11 |
21.5” 250cd/m² FHD medical panel PC with Intel® H81 chipset, Intel® Core™ i3-4330TE processor (dual core, 2.4 GHz, TDP 35W), two 2 GB DDR3 RAM, 802.11a/b/g/n/ac Wi-Fi module, projected capacitive touchscreen, 2M camera, microphone, support iRIS-2400, R11 |
|
POC-W22A-H81i-i5/PC/4G-R11 |
21.5” 250cd/m² FHD medical panel PC with Intel® H81 chipset, Intel® Core™ i5-4570TE processor (dual core, 2.7 GHz, TDP 35W), two 2 GB DDR3 RAM, 802.11a/b/g/n/ac Wi-Fi module, projected capacitive touchscreen, 2M camera, microphone, support iRIS-2400, R11 |
|
|
|
|
Options |
|
|
|
|
Item |
Description |
|
MEDP-HS-R10 |
USB interface VoIP phone and its holder, White |
|
MEDP-CR-R10 |
Magnetic card reader/Smart card reader/Fingerprint sensor, White |
|
MEDP-HD-R10 |
Metal handle covered with soft rubber |
|
MEDP-HD-BR-R10 |
Metal handle covered with soft rubber, with barcode reader and reading light, White |
|
MEDP-MF-RFID-R10 |
Mifare RFID reader, 13.56MHz, with LED indicator, IEI assembly only |
|
MEDP-TPM-R10 |
Trusted platform module kit, IEI assembly only |
|
MEDP-BAT-R10 |
Li-Ion Battery, 3700mAH; 14.8V; with LED indicator, IEI assembly only; RoHS |
|
MEDP-EZS-R10 |
VESA 100 x 100 mm panel PC stand with the cable management hole, White |
|
iRIS-2400-R10 |
IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM socket interface |
|
POC-W22A-H81-WES7P64-R10 |
OS Image with 64bit Windows Embedded Standard 7 P for POC-W22A-H81 Series, with DVD-ROM |
|
POC-W22A-H81-WE8S64-R10 |
OS Image with 64bit Windows Embedded Standard 8 for POC-W22A-H81 Series, with DVD-ROM |
|
|
|
|
IQ Mounting Options |
|
|
|
|
Item |
Description |
|
Wall Mount Kit |
AFLWK-19B |
|
Arm |
ARM-31-RS |
|
Stand |
STAND-300SW-RS/STAND-A21-R10 |
|
|
|
|
Packing List |
|
|
|
|
Item |
Part No. |
Q’ty |
Description |
|
Utility CD |
7B000-001137-RS |
1 |
Drivers and User Manual |
|
Power Adapter |
63040-010120-010-RS |
1 |
120W medical power adapter: Input: 100V~240V AC, Output: 19 V DC |
|
Power Cord |
32702-000200-100-RS |
1 |
European power cords, 183 CM, C13 |
|
|
|
|
