Features |
|
1. |
Socket P for 45nm Intel® mobile Core™2 Quad/ Duo Penryn CPU with FSB 1066 MHz |
|
2. |
Intel® GMA4500MHD for DX10, Shader Model 4.0, high performance MPEG-2 decoding, WMV9 (VC-1) and H.264 (AVC) support |
|
3. |
Display output support by VGA, LVDS, HDMI, HDTV |
|
4. |
Single 12V DC input, four COM, two SATA, eight USB2.0 |
|
5. |
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
|
Specifications |
|
• |
CPU |
|
|
Socket P Intel® 45nm Core™2 Quad/Duo processor with 1066/800/667MHz FSB (Penryn Core) |
|
• |
System Chipset |
|
|
Intel® GM45 + ICH9M |
|
• |
BIOS |
|
|
AMI BIOS |
|
• |
Memory |
|
|
Two 200-pin 667/800 MHz dual-channel DDR2 SO-DIMM supported (system max. 4GB) |
|
• |
Ethernet |
|
|
Realtek RTL8111CP GbE controller |
|
• |
I/O Interface |
|
|
8 x USB2.0
2 x SATAII
2 x SATA 3Gb/s
1 x 6-pin pin header for KB/MS
3 x RS-232 (COM1, COM3, COM4)
1 x RS-232/422/485 (COM2) |
|
• |
Graphic |
|
|
Intel® GMA4500MHD |
|
• |
Expansion |
|
|
1 x PCIe mini card, 1 x PCI
1 x Dual PCIe mini card slot (by IO-KIT-MPCIE-R10) |
|
• |
Digital I/O |
|
|
8-bit digital I/O, 4-bit input/ 4-bit output |
|
• |
Super I/O |
|
|
ITE IT8718F |
|
|
• |
Audio |
|
|
Realtek ALC888 HD codec |
|
• |
Display Output |
|
|
VGA integratedin the Intel® GM45 support Hot-Plug and resolution up to QXGA
18/24-bit dual-channel LVDS support
HDMI support up to 1080p
HDTV for Component, S-Video and Composite output interfaces |
|
• |
Watchdog Timer |
|
|
Software Programmable support 1~255 sec. System reset |
|
• |
Power Supply |
|
|
Single voltage 12V DC input
1 x external 4-pin DIN DC jack
1 x internal 4-pin (2x2) power connector |
|
• |
Power Consumption |
|
|
12V@5.56A (2.0GHz Intel® Core™2 Quad Q9000 with two 1GB 800MHz DDR2 SO-DIMMs) |
|
• |
Temperature |
|
|
Operation: 0°C ~ 60°C (32°F ~ 140°F) |
|
• |
Humidity |
|
|
Operation: 5% ~95% non-condensing |
|
• |
Dimensions |
|
|
170mm x 170mm |
|
• |
Weight |
|
|
GW: 1000g / NW: 390g |
|
|
|
|
|
|
Ordering Information |
|
Part No. |
Description |
|
KINO-GM45A-R10 |
Mini-ITX SBC with Socket P for Intel® 45nm mobile Core™2 Quad/ Duo Penryn CPU, VGA/HDMI/LVDS, PCIe GbE, USB2.0, PCIe mini, SATAII and Audio, RoHS |
|
IO-KIT-MPCIE-R10 |
PCIe/USB mini card expansion module |
|
CB-USB02-RS |
Dual USB cable |
|
CF-479B-RS |
CPU cooler |
|
CF-479F-RS |
CPU cooler for 45W |
|
32100-088600-RS |
SATA power cable |
|
SAIDE-KIT01-R10 |
SATA to IDE/CF converter board |
|
WMPCIE-V01-R10 |
PCIe Mini card wireless LAN module |
|
WMUSB-V01-R10 |
USB Mini card wireless LAN module |
|
32200-026500-RS |
RS-232/422/485 cable |
|
32200-000049-RS |
Single port RS-232 cable |
|
32100-192900-RS |
One 4-pin(2x2) to one 4-pin(1x4) DC power cable with terminal block |
|
32000-083100-RS |
HDTV out cable |
|
63000-FSP096AHB-RS |
96W/12V Power Adaptor 90VAC~260VAC, DIN 4 PIN |
|
|
|
|
Packing List |
|
1 x KINO-GM45A single board computer |
1 x IO shielding (P/N: 45014-0030C0-00-RS) |
|
1 x Dual RS-232 cable (P/N: 19800-000112-RS) |
1 x KB/MS Y cable (P/N: 32000-023800-RS) |
|
1 x Audio cable (P/N: 32000-072100-RS) |
1 x Mini jumper pack |
|
1 x QIG (Quick Installation Guide) |
1 x Utility CD |
|
2 x SATA with power output cable (P/N: 32801-000100-100-RS) |
|
|
|
|
|

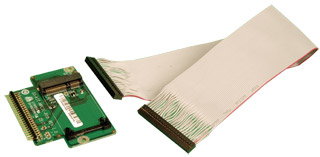

IO-KIT-MPCIE-R10 Dual PCIe/USB mini card expansion module |
 |
 |
Packing List
1 x PCIe/USB mini card expansion module
(P/N: IO-KIT-MPCIE-R10) |
|
1 x connection cable (P/N: 32225-000100-100-RS) |
|
1 x QIG |
|
|
|
Ordering Information
|
Part No. |
Description |
|
IO-KIT-MPCIE-R10 |
PCIe/USB mini card expansion module |
|
|
|
|
 |
|
