IBX-300B/BC
|
|
● Dual core computing power in 1 liter compact box
● New generation Intel® Atom™ D510 1.66GHz processor inside
● 8 channels real time video capture with D1 resolution
● VGA display resolution up to 2048 *1536
● Support one 2.5" SATA hard drive |
|
|
|
 |
|
|
|
Model |
IBX-300B |
IBX-300BC |
|
Processor |
Intel® Atom™ Processor D510 1.66GHz/2x 512KB L2 Cache |
|
Chipset |
ICH8M |
|
Video Capture Engine |
N/A |
Conexant CX25853 Multiport Composite Video Decoder (8 inputs by cable)
Conexant CX25821 PCIe Media Bridge |
|
System Memory |
Built-in 1GB DDR2 SDRAM SO-DIMM |
|
Ethernet |
1 x GbE (Intel® 82567V) |
|
Display |
VGA (2048 x 1536@60Hz) |
|
USB |
4 x USB 2.0 |
|
Serial Port |
1 x RS-232 |
|
Audio |
1 x mic in, 1 x line out |
|
Storage |
1 x 2.5” SATA HDD |
|
Wireless (optional) |
802.11 b/g for wireless model |
|
Power Input |
12VDC in |
|
Operating Temperature |
-10ºC~50ºC (with HDD) with air flow* |
-10ºC~40ºC (with HDD) with air flow* |
|
Operating shock |
Half-sine wave shock 3G; 11ms; 3 shocks per axis |
|
Operating Vibration |
MIL-STD-810F 514.5C-1 |
|
Weight (Net/Gross) |
1.0 kg / 2.8 kg |
|
Dimensions (DxWxH)) |
160mm(W) x 123.5mm(D) x 51.3mm (H) |
|
Mounting |
Desktop, wall mount, VESA mount (optional) |
|
|
* Ambient air speed pre IEC-68-2-2 standard |
|
|
|
|
|

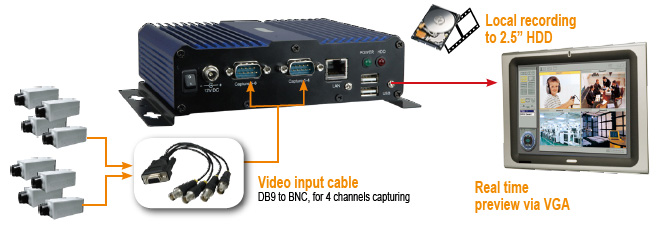

8 Channels Video Capturing |
|
Video capture Engine |
Conexant CX25853 |
|
Video Input |
8 channels composite video(NTSC/PAL/SECAM) |
|
Video ADC |
10-bit |
|
Max. resolution |
720 x 480(NTSC), 720x576(PAL/SECAM) |
|
Frame rate |
NTSC: 8 channels with 30fps@D1 per channelPAL/SECAM: 8 channels with 25fps@D1 per channel |
|
Driver support |
Windows XP, Vista |
|
|
|
|
|
|
|
|
1 x QIG |
|
1 x Driver CD |
|
2 x Quad channel BNC cable (IBX-300BC series) |
|
1 x Screw set |
|
1 x SATA hard drive cable |
|
1 x Power adaptor (with ERP and PSE certificates) |
|
1 x 2dbi wireless antenna (for wireless model only) |
|
1 x Power cord |
|
|
|
|
|
|
|
|
Part No. |
Description |
|
IBX-300BC-R10/D510/1GB |
Fanless embedded system with Intel® Atom™ Processor dual core D510 1.66G CPU, with two DB9 for 8 channels video capture, with 1 GB DDR2 memory, bult-in 802.11b/g wireless,40W power adaptor with ERP and PSE certificates,Blue,RoHS |
|
IBX-300BCW-R10/D510/1GB |
Fanless embedded system with Intel® Atom™ Processor dual core D510 1.66G CPU, with two DB9 for 8 channels video capture, with 1 GB DDR2 memory, bult-in 802.11b/g wireless,bult-in 802.11b/g wireless,40W power adaptor with ERP and PSE certificates,Blue,RoHS |
|
IBX-300B-R10/D510/1GB |
Fanless embedded system with Intel® Atom™ Processor dual core D510 1.66G CPU, with 1GB DDR2 memory,60W power adaptor with ERP and PSE certificates, Blue, RoHS |
|
IBX-300BW-R10/D510/1GB |
Fanless embedded system with Intel® Atom™ Processor dual core D510 1.66G CPU, with 1GB DDR2 memory, bult-in 802.11b/g wireless, 60W power adaptor with ERP and PSE certificates, Blue, RoHS |
|
|
|
|
|
|
