SAILORPC
|
|
|
|
|
• |
12.1" 1000 nits super high brightness TFT LCD available |
|
• |
IP67 (NEMA 6) fully-enclosed aluminum die casting enclosure and IP67 waterproof lockable I/O |
|
• |
Fanless system integrated with Intel® Atom™ N270 1.6G processor for ultra Low voltage |
|
• |
Supports one 2.0 GB (max.) 400/533 MHz MHz DDR2 SO-DIMM |
|
• |
Built-in internal WiFi antenna supports 802.11 b/g/n high standard |
|
• |
One Compact Flash® Type II socket |
|
• |
CAN-Bus interface for automotive applications |
|
• |
Ambient light sensor detects ambient light for automated screen adjustments to optimize viewing. (Advanced Deep Dimming to Black for sunlight readable model) |
|
• |
Touch Screen |
 |
|
• |
Standard VESA 75/100 compliance |
|
• |
Panel mounting support |
|
• |
IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Suggest over 4GB storage capacity) |
 |
|
|
|
 |
|
IP67 Fully-Enclosed Design |
|
|
|
|
|
|
|
|
|
|
|
SAILORPC-12ASR (Sunlight Readable Model) has greatly improved luminance through edge lighting to achievesuper high brightness (up to 1000 cd/m2). |
|
|
|
|
|
|
|
|
802.11b/g/n Uninterrupted Wireless Connection |
|
|
|
|
|
|
|
|
|
|
|
CAN-Bus Automotive Applications |
|
|
|
|
|
The SAILORPC-12A is equipped with automotive applied CAN-Bus interface. The Control Area Network (CAN) is a serial bus system, originally developed by Bosch for use in automobiles, and now is increasingly being used for control in industrial and automotive applications |
|
Controller Area Network |
|
• |
1Mb/s data rate |
|
• |
High reliability bus |
|
• |
CAN is an open standard with many variants |
|
• |
Is capable of providing real-time communication. |
|
|
|
CAN in cars and truck engine |
|
|
|
|
|
|
|
|
|
|
Model |
SAILORPC-12A-N270 |
SAILORPC-12ASR-N270 |
|
Display |
LCD Size |
12.1" |
|
Max Resolution |
1024 x 768 |
|
Brightness (cd/m²) |
500 |
1000  |
|
Contrast Ratio |
700:1 |
700:1 |
|
LCD Color |
16.2M |
262K |
|
Pixel Pitch (mm) |
0.3075(H) x 0.3075(V) |
0.240(H) x 0.240(V) |
|
Viewing Angle (H-V) |
160°/160° |
130°/120° |
|
Backlight MTBF (hrs) |
50000 |
60000 |
|
Motherboard |
SBC Model |
SAILORMB-ATOM-R10 |
|
CPU |
Intel® Atom™ process N270 1.6GHz CPU |
|
Chipset |
Intel® 945GSE + ICH7M |
Intel® 945GSE + ICH7M |
|
RAM |
Supports one 400/533MHz DDRII SO-DIMM(2GB Max.) |
|
I/O Ports and Switches |

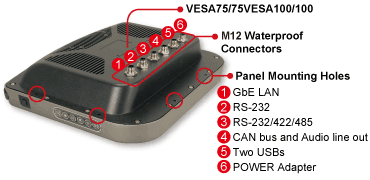

1 x 5pin M12 connector for POWER Adapter
1 x 8pin M12 connector for two USB
1 x 5pin M12 connector for CAN bus and Audio line out
1 x 8pin M12 connector for UART RS-232/422/485
1 x 8pin M12 connector for UART RS-232
1 x 8pin M12 connector for GbE LAN |
|
Driver Bay |
HDD Driver Bay |
1 x 2.5" SATA HDD Bay |
|
SSD |
CF Type II |
|
Extension Slot |
1 x Wireless Lan Module (802.11 b/g/n)
(internal PCIe mini card interface) |
|
Physical |
Construction Front Panel |
Aluminum |
|
Construction Chasis |
Heavy-duty Steel |
|
Mounting |
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
|
Front Panel Color |
Silver (Pantone 8403C) |
|
Dimension (WxHxD) (mm) |
345.3 x 300.4 x 77 |
|
Net Gross Weight |
4.2 Kg / 5.3 Kg |
|
Environment |
Operation Temperature (°C) |
-10°C ~ 50°C |
-10°C ~ 50°C |
|
Storage Temperature (°C) |
-20°C ~ 70°C |
-20°C ~ 70°C |
|
Vibration |
5 ~ 17Hz, 0.1" double amplitude displacement
17 ~ 640Hz, 1.5G acceleration peak to peak |
|
Shoock |
10G acceleration part to part (11ms) |
|
Touch Screen |
Resistive Type 5-Wire with RS-232 interface |
|
Power Supply |
Power Adapter
- P/N: 63000-CLG60121C-RS - 60W Power Adapter
- Input: 90VAC~264VAC, 50/60Hz - Output: 12VDC
- M12 waterproof connector 5P |
|
Power Requirement |
9~28VDC |
|
Front Panel Protection |
IP67 Compliant |
|
Power Consumption |
33W |
51W |
|
Certificate |
Meets CE, FCC, CB, CCC, DNV |
|
|
|
|
|
|
Item |
Part Number |
Q'ty |
Specifications |
|
Panel mount screws Pack |
44013-030041-RS |
1 |
|
|
Power cable |
32000-127500-RS |
1 |
2000mm;16AWG;
(A) terminal block connector;
(B) M12 Waterproof connector |
|
Utilities CD |
7B000-000087-RS |
1 |
|
|
Touch Pen |
XTR104-0002-RS |
1 |
|
|
|
|
|
|
|
|
|
Model |
SAILORPC-12A(SR)-N270 |
|
Wall mounting kit |
AFLWK-12 |
|
Rack mounting kit |
SAILORRK-12 |
|
ARM |
ARM-11-RS / ARM-31-RS |
|
Stand |
STAND-A12 / STAND-100-RS |
|
|
|
|
|
|
Optional cables and adapter |
|
|
|
|
|
Item |
Part Number |
|
USB cable |
CB-M12USB02-R10 |
|
RJ45 LAN cable |
CB-M12RJ45-R10 |
|
DB-9 COM port cable |
CB-M12COM-R10 |
|
DB-9 CAN bus and AUDIO line-out cable |
CB-M12ACAN-R10 |
|
AUDIO line-out cable |
CB-M12AUDIO-R10 |
|
Water-proof Power Adapter |
63000-CLG6012IC-RS |
|
 |
 |
 |
|
USB cable |
RJ45 LAN cable |
DB-9 COM port cable |
 |
 |
 |
|
DB-9 CAN bus and AUDIO line-out cable |
AUDIO line-out cable |
Water-proof Power Adapter |
|
|
|
|
|
|
|
|
|
Brightness |
OS |
Part Number |
Description |
|
Regular Brightness |
CE 6.0 |
SAILORPC-12A/R/1/1-C6-R20 |
12.1" 500 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 1GB compact flash with Windows CE 6.0 operaintg system |
|
XPE |
SAILORPC-12A/R/1/4-X-R20 |
12.1" 500 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 4GB compact flash with Windows XP Embedded operaintg system |
|
SAILORPC-12A/R/1/16-X-R20 |
12.1" 500 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 160GB SATA HDD with Windows XP Embedded operaintg system |
|
LINUX |
SAILORPC-12A/R/1/4-L-R20 |
12.1" 500 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 4GB compact flash with LINUX operaintg system |
|
SAILORPC-12A/R/1/16-L-R20 |
12.1" 500 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 160GB SATA HDD with LINUX operaintg system |
|
Sunlight Readable |
CE 6.0 |
SAILORPC-12ASR/R/1/1-C6-R20 |
12.1" 1000 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 1GB compact flash with Windows CE 6.0 operaintg system |
|
XPE |
SAILORPC-12ASR/R/1/4-X-R20 |
12.1" 1000 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 4GB compact flash with Windows XP Embedded operaintg system |
|
SAILORPC-12ASR/R/1/16-X-R20 |
12.1" 1000 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 160GB SATA HDD with Windows XP Embedded operaintg system |
|
LINUX |
SAILORPC-12ASR/R/1/4-L-R20 |
12.1" 1000 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 4GB compact flash with LINUX operaintg system |
|
SAILORPC-12ASR/R/1/16-L-R20 |
12.1" 1000 cd/m2 IP67 panel PC with Intel® Atom™ N270 CPU 1.6GHz, 802.11 b/g/n wireless module, touch screen, 1GB DDR2 553 MHz, M12 connectors and 160GB SATA HDD with LINUX operaintg system |
|
|
|
|
|
|
