KINO-945GSE3
|
KINO-945GSE3 |
Mini-ITX SBC with Intel® Atom™ N270 1.6G,VGA/DVI/LVDS, Dual PCIe GbE, USB2.0, 10COM, SATA and Audio
|
|
|
|
|
|
● Intel® Atom™ N270 processor 1.6GHz for fan-less support
● DDR2 400/533 SO-DIMM Memory support up to 2GB
● Dual Display support by VGA + DVI-D/LVDS + VGA/LVDS + DVI-D
● Support PCIe mini Card/ PCI slot for expansion
● Complete I/O interface for 6 x USB2.0, 2 x SATA and 10 x COM
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
|
|
 |
|
Better Graphic Performance |
|
|
|
|
 |

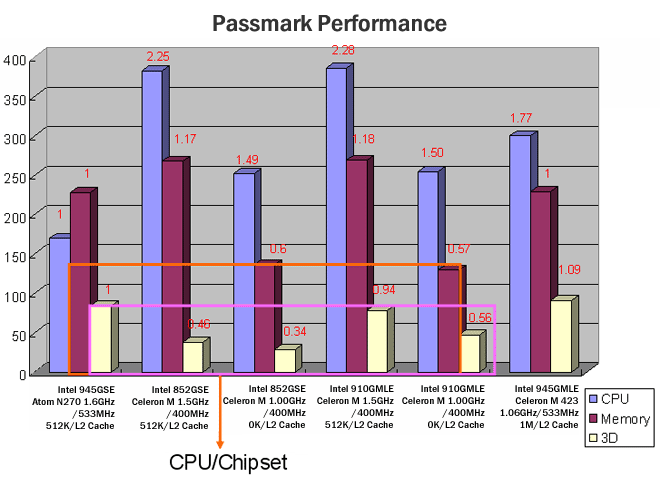

Evaluating performance with different generation CPU and chipset combination, Intel® Atom™ N270 processor is the best choice for better memory performance and better graphic performance solution.
|
|
|
|
|
|
|

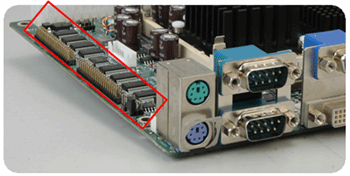

KINO-945GSE3 provides 10 COM ports
|
 |
 |
Additional 8 COM ports supported by 2 x Quad port RS-232 cable (P/N: 32200-025401-RS)
|
|
10 COM port on board benefits |
|
1. Cost effective |
2. Time to market |
No more extra add-on card needed
|
 |
|
No more extra device driver need to maintain
|
 |
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
|
Simple! Direct! Easy! |
|

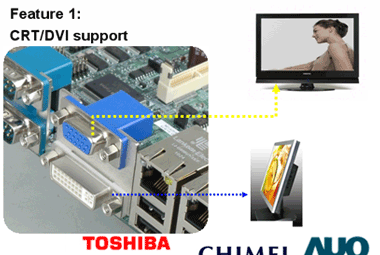

Ready for all exist monitors |
Video Output 1: VGA
Video Output 2: DVI
Video Output 3: LVDS
Video Output 4: HDTV/TV
Dual display independent by:
LVDS+DVI, LVDS+VGA, DVI+VGA
|
|
 |
 |
 |
 |
|
 |
Feature 2: LVDS Panel Support

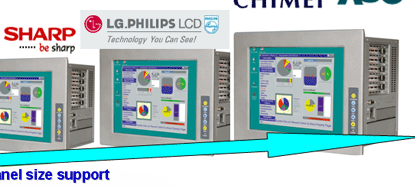

KINO-945GSE3 supports various TFT panel and different panel size.
|
 |
 |
|
|
|
|
Feature 3: HDTV/TV support
|
|
The possibilities are endless~
High Definition！High Resolution Enable your Sense of Sight
|
 |
 |
|
|
|
|
 |
 |

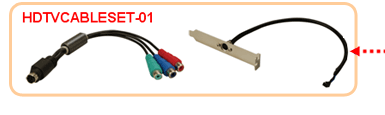

KINO-945GSE3 supports HDTV resolution up to 1080i by IEI HDTV cable kits
|
|
|
|
|
|
|
CPU |
Intel® Atom™ N270 Processor 1.6GHz with a 533MHz FSB |
|
System Chipset |
Intel® 945GSE+ICH7M |
|
BIOS |
AMI BIOS |
|
Memory |
One 200-pin 400/533 DDR2 SDRAM SO-DIMM supported (system max.
2GB) |
|
Ethernet |
Dual Realtek PCIe RTL8111E GbE Chipsets, LAN1 with ASF2.0 support |
|
I/O Interface |
|
6 x USB2.0 |
2 x SATA |
|
1 x CF Type II |
9 x RS-232 |
|
1 x RS-232/422/485 |
1 x IDE |
|
1 x 6-pin header for KB/MS |
2 x PS/2 for KB/MS |
|
|
Graphic |
GMA950 |
|
Display Output |
|
VGA integrated in Intel 945GSE |
|
Support HDTV resolution up to 1080i by component interface |
|
18-bits Dual channel LVDS by Intel 945GSE |
|
DVI-D support by Silcon Image SiI1362 |
|
|
Expansion |
1 x PCI
1 x PCIe mini card |
|
Digital I/O |
8-bit digital I/O, 4-bit input/ 4-bit output |
|
Infrared Interface |
1x Infrared Interface by pin header |
|
Super IO |
Fintek F81865 |
|
Audio |
Realtek ALC655 AC'97 Codec |
|
Watchdog Timer |
Software Programmable support 1~255 sec. System reset |
|
Power Supply |
AT/ ATX power supply Support |
|
Power Consumption |
0.43A @12V, 4.5A@5V (Intel Atom™ N270 1.6GHz with 2GB DDR2) |
|
Temperature |
Operation: -10°C ~ 60°C |
|
Humidity |
Operation: 5% ~95% non-condensing |
|

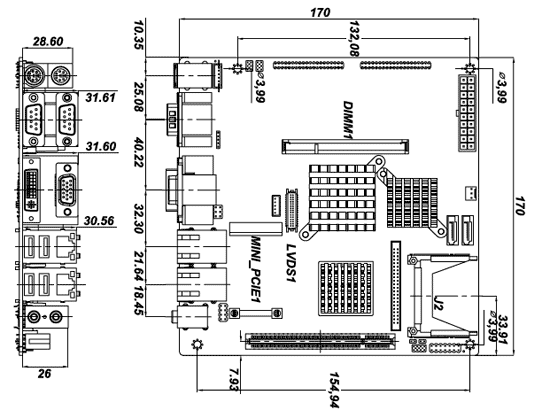

Dimensions |
170mm x 170mm |
|
Weight |
GW: 1100g / NW: 370 g |
|
|
* Ambient air speed pre IEC-68-2-2 standard |
|
|
|
|
|
|
|
|
|
|
|
|
|
1 x KINO-945GSE3 single board computer |
|
2 x Quad port RS-232 cable (P/N: 32200-025401-RS) |
|
2 x SATA cable (P/N: 32000-062800-RS) |
|
1 x I/O shielding (P/N: 45014-0008C0-00-RS) |
|
1 x Mini Jumper Pack |
1 x Utility CD |
|
1 x QIG(Quick Installation Guide) |
|
|
|
|
|
|
|
|
|
Part No. |
Description |
|
KINO-945GSE3-N270-R10 |
Mini-ITX SBC with Intel® Atom™ N270 1.6G, VGA/DVI/LVDS, Dual PCIe GbE, USB2.0, 10COM, SATA and Audio |
|
CB-USB02-RS |
Dual USB cable |
|
HDTVCABLESET-01 |
HDTV Cable Set with S-Video, Composite and Component Interfaces |
|
32102-000100-200-RS |
SATA Power Cable |
|
32200-0833600-RS |
RS-422/485 cable |
|
32200-000009-RS |
44pin 2.5" IDE cable |
|
32200-023800-RS |
Keyboard/Mouse Y cable |
|
|
|
|
|
|
