KINO-HM551
|
|
|
|
|
• |
Mini-ITX SBC with socket G1 for Intel® mobile Core™ i7/i5/i3 and Celeron® processor |
|
• |
DDR3 800/1066HMz dual channel SDRAM supported up to 8GB |
|
• |
18/24-bit dual channel LVDS/ Analog CRT/ DVI/ HDMI output supported |
|
• |
PCIe x16 slot and dual MiniPCIe card for high speed device expansion |
|
• |
TPM V1.2 hardware security function supported by TPM module |
|
• |
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
|
|
 |
|
|
|

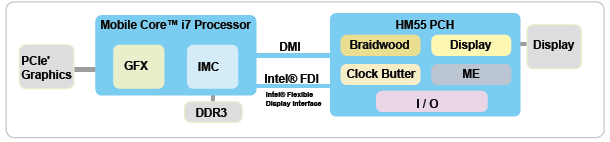

Best graphic Performance Solution for Mobile Core™ i7/ i5/ i3/ Celeron Platform
|
|
|
 |
|
 |

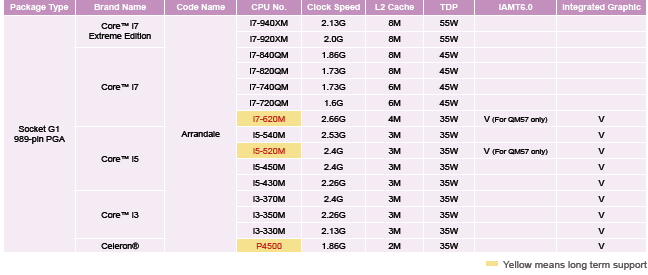

Mobile Core™ i7 Embedded CPU List for QM57/ HM55 |
|
|
 |
|
|
|

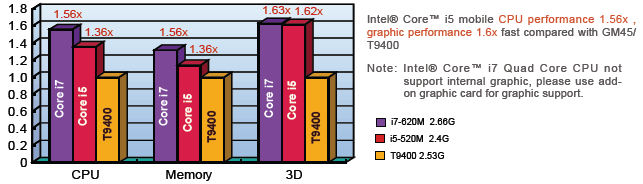

CPU Performance Comparison |
|
|
 |
|
|
|
|
Valued Core™ i7 Choice |
|
|
|
Ibex Peak-M Feature
|
QM57
|
HM55
|
|
PCI-Express
|
8 ports
|
6 ports
|
|
SATA
|
6 ports
|
4 ports
|
|
TDP
|
3.2~3.5W
|
3.2~3.5W
|
|
Intel Active Management Technology (Intel AMT)
|
6.0 (integrated KVM)
|
No
|
|
USB 2.0 Ports
|
14 ports
|
12 ports
|
|
|
|
|
|
|
|
|
 |
CPU |
|
|
Socket G1 for Intel® mobile Core™ i7/ i5/ i3 and Celeron® processor (Socket 988) |
|
|
PCH |
|
|
Intel® HM55 |
|
|
BIOS |
|
|
UEFI BIOS |
|
|
System Memory |
|
|
Two 204-pin 4GB (max.) 800/1066MHz dual-channel DDR3 SDRAM SO-DIMM supported (System max. 8GB) |
|
|
Graphic Engine |
|
|
Gen 5.75 with 12 Execution Units DirectX* 10, OpenGL* 2.1 |
|
|
Display Interface |
|
|
Analog CRT by VGA connector (2048x1536) 18/24-bit Dual channel LVDS (1600x1200) HDMI supports resolution up to 1080p DVI-D |
|
|
Ethernet |
|
|
Daul GbE LAN controller by Realtek RTL8111E,LAN1 with ASF 2.0 support |
|
|
I/O Interface |
|
|
4 x RS-232
2 x RS-232/422/485 with Auto Flow control
8 x USB 2.0
4 x SATA II with 2pcs DC power connector
1 x 6-pin header for KB/MS |
|
|
TPM |
|
|
2 x 10-pin header |
|
|
SMBus |
|
|
1 x 4-pin wafer connector |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 x KINO-HM551 single board computer |
1 x Dual RS-232 cable with bracket (P/N: 19800-000112-RS) |
|
1 x I/O shielding (P/N: 45014-0032C0-00-RS) |
2 x SATA with power cable kit (P/N: 32801-000100-100-RS) |
|
1 x Utility CD |
1 x QIG (Quick installation guide) |
|
1 x Mini jumper pack |
|
|
|
|
|
|
|
|
Part No. |
Description |
|
KINO-HM551-R10 |
Mini-ITX SBC with Socket G1 for Intel® mobile Core i7/i5/i3 and Celeron® CPU, VGA/DVI/LVDS/HDMI, Dual PCIe GbE, USB 2.0, Dual PCIe Mini, SATA II and Audio, RoHS |
|
CB-USB02-RS |
Dual USB cable with bracket |
|
SAIDE-KIT01-R10 |
SATA to IDE/CF Converter board |
|
19800-000110-RS |
RS-232/422/485 cable with bracket |
|
32000-023800-RS |
KB/MS Y cable |
|
CF-989A-RS-R11 |
CPU cooler for mobile socket-G (PGA988) up to 55W processor, Copper, 60x60x27.6mm ,RoHS |
|
TPM-IN01-R11 |
20-pin INFINEON TPM Module, S/W management Tool, Firmware V3.17 |
|
|
|
|
|
|
