D525/D425 Embedded Low Power DDR3 Solution
|
D525/D425 Embedded Low Power DDR3 Solution |
|
|
D525/D425: The Intel® Atom™ processor D425 and D525 series integrates the graphics, display, and DDR3 memory controller with a processor specifically designed for affordable, entry-level basic computing. |
|
Features |
|
• |
DDR3 support up to 4GB by UEFI BIOS |
|
|
» |
Power saving more than 30% compared to DDR2 |
|
|
» |
Higher bandwidth performance, up to 2133 MT/s standardized |
|
• |
UEFI BIOS |
|
|
» |
Boot time under 10 seconds for fast boot |
|
|
» |
Support HDD capacities more than 2.2 TB |
|
|
» |
Support Dual ranks x16 DDR3 Memory up to 2GB per DIMM, system up to 4GB |
|
• |
New graphics performance |
|
|
» |
The GPU contains the 3rd generation graphics core GMA3150 support DX9*, MPEG2 Hardware Acceleration |
|
|
» |
VGA resolution up to 2046x1536 MHz |
|
|
» |
Single 18bit LVDS resolution up to 1366x768Mhz |
|
|

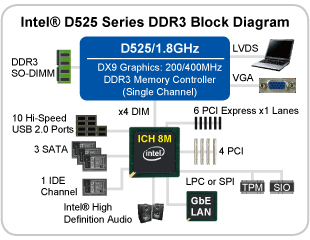

2 Chipsets Solution |
 |
|
|
 |
|
Performance comparison chart |
|
|

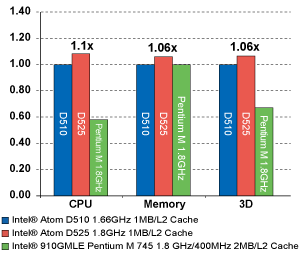

Dual Core Atom DDR3 solution |
Pentium M replacement platform
D525: Intel® Dual Core™ Atom™ with DDR3 supported, performance 1.1x better than Intel® D510 (DDR2 Dual Core™ Atom™ |
 |
|
|

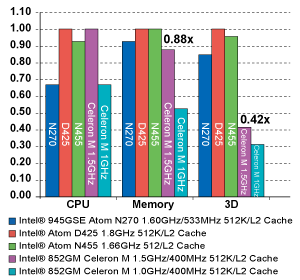

Single Core Atom DDR3 solution |
Celeron M replacement platform
D425 integrated Intel® Graphic GMA3150 graphics core, graphics performance 50% better than Celeron® M with 852GM |
 |
|
|
|
|
|
Extreme Graphic Performance Solution |
|
|
IEI solution KINO-PVN-D4251/D5251 |
|
The IEI KINO-PVN-D5251/D4251 is designed with NVIDIA Geforce GT218-ION, the most advanced GPU from NVIDIA. The GT218-ION GPU supports PCI Express 2.0 with a single lane of PCI-E 2.0 traffic. A new video engine, VP4, delivers over 10 times performance better than the Intel® integrated GMA3150 engine on a dual core Atom platform. The system can play HD movies with low CPU loading. |
|
System |
CPU |
Atom D525/D425 |
|
Memory |
DDR3 |
|
GPU |
Part number |
NVIDIA GT218-ION |
|
Host Platform |
PCI Express 2.0 x1 |
|
Frame buffer |
Up to 512 MB DDR3 memory |
|
Display (Any 2) |
DVI DL |
 |
|
HDMI |
|
VGA |
|
DirectX |
10.1 |
|
Features |
HW video decode acceleration |
Yes |
|
|
|

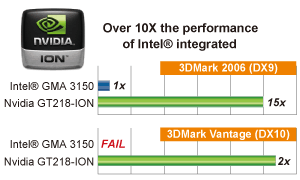

Over 10X performance than Intel® GMA3150 solution |
|
The NVIDIA Geforce GT218-ION is the most advanced GPU from NVIDIA. The GT218-ION GPU supports PCI Express 2.0 with a single lane of PCI-E 2.0 traffic. A new video engine, VP4, performs over 10 times better than the Intel® integrated GMA3150 engine on a dual core Atom platform. The system can play HD movies with low CPU loading. |
 |
|
|
|
|
|
|
|
24 bits dual channel LVDS Solution |
|
|
The IEI KINO-PV-D5252/D4252 integrated dual LVDS to support dual channel 18 bits and 24 bits TFT panel, the 24-bit dual-channel LVDS can support resolution up to 1920x1080 |
|
|
|
|
|
 |
 |
 |
 |
|
KINO-PVN-D4251/D5251 |
|
Mini-ITX SBC with Intel® Atom™ D425/D525, VGA/ DVI-DL/ HDMI by Nvidia GT218-ION, Dual GbE, Audio, USB 2.0 and SATA 3Gb/s, RoHS |
 |
 Datasheet |
|
 |
 |
 |
 |
|
|
|
|
|
|
|
|
KINO-PV-D4252/D5252 |
|
Mini-ITX SBC with Intel® Atom™ D425/D525, DDR3, VGA/ 18+48-bit LVDS, Dual GbE, Audio, USB 2.0 and SATA 3Gb/s, RoHS |
 |
|
Datasheet |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
