NOVA-PV-D4251/D5251
|
|
|
|
|
• |
5.25" SBC supports Intel® Atom™ D525 / D425 processor |
|
• |
DDR3 800/1066 MHz supports up to 4GB |
|
• |
VGA/ 18-bit single-channel/ 24-bit dual-channel LVDS for dual independent display support |
|
• |
Quad PCIe Ethernet, two SATA 3Gb/s, and six RS-232 serial port connectors |
|
• |
TPM V1.2 hardware security function support by TPM module |
|
• |
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
|

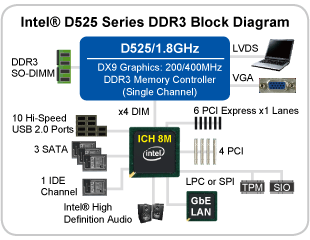

D525/D425 Embedded Low Power DDR3 Solution |
|
|
|
|
D525/D425: The Intel® Atom™ processor D425 and D525 series integrates the graphics, display, and DDR3 memory controller with a processor specifically designed for affordable, entry-level basic computing. |
|
Features |
|
• |
DDR3 support up to 4GB by UEFI BIOS |
|
|
» |
Power saving more than 30% compared to DDR2 |
|
|
» |
Higher bandwidth performance, up to 2133 MT/s standardized |
|
• |
UEFI BIOS |
|
|
» |
Boot time under 10 seconds for fast boot |
|
|
» |
Support HDD capacities more than 2.2 TB |
|
|
» |
Support Dual ranks x16 DDR3 Memory up to 2GB per DIMM, system up to 4GB |
|
• |
New graphics performance |
|
|
» |
The GPU contains the 3rd generation graphics core GMA3150 support DX9*, MPEG2 Hardware Acceleration |
|
|
» |
VGA resolution up to 2046x1536 MHz |
|
|
» |
Single 18bit LVDS resolution up to 1366x768Mhz |
|
|
2 Chipsets Solution |
 |
|
|
|
|
|
CPU Performance Comparison |
|
|
|
|

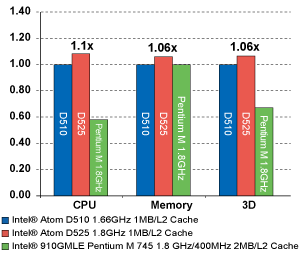

Dual Core Atom DDR3 solution |
Pentium M replacement platform
D525: Intel® Dual Core™ Atom™ with DDR3 supported, performance 1.1x better than Intel® D510 (DDR2 Dual Core™ Atom™) |
 |
|
|

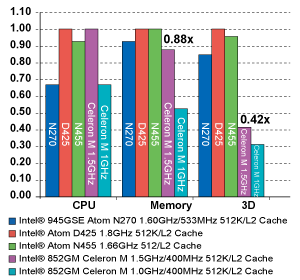

Single Core Atom DDR3 solution |
Celeron M replacement platform
D425 integrated Intel® Graphic GMA3150 graphics core, graphics performance 50% better than Celeron® M with 852GM |
 |
|
|
|
|
|
|
|
Model variations of NOVA-PV-D4251/D5251 |
|
Model |
CPU |
PCIe GbE |
LVDS |
COM Ports |
|
NOVA-PV-D5251-G4 |
Intel® Atom™ D525 |
Four RJ-45 |
18-bit single-channel |
1 x DB-9 RS-232
4 x Internal RS-232
1 x Internal RS-232/422/485 |
|
NOVA-PV-D4251-G2L2 |
Intel® Atom™ D425 |
Two RJ-45 |
18-bit single-channel &
24-bit dual-channel |
4 x Internal RS-232
1 x Internal RS-232/422/485 |
|
NOVA-PV-D5251-G2L2 |
Intel® Atom™ D525 |
|
|
|
|
|
|
 |
CPU |
|
|
Intel® Dual Core Atom™ D525 Processor 1.8GHz/1MB L2 cache
Intel® Single Core Atom™ D425 Processor 1.8GHz/512KB L2 cache |
|
|
System Chipset |
|
|
Intel® ICH8M |
|
|
BIOS |
|
|
UEFI BIOS |
|
|
Memory |
|
|
Two 204-pin 800MHz DDR3 SDRAM SO-DIMMs supported (system max. 4GB) for D525/D425 |
|
|
Ethernet |
|
|
Four PCIe Realtek RTL8111E GbE controller, LAN1 with ASF2.0 support |
|
|
Graphic |
|
|
GMA 3150
Graphic core speed 400MHz for D525/ D425 |
|
|
I/O Interface |
|
|
|
5 x RS-232 |
1 x CF Type II |
|
1 x LPT |
8 x USB2.0 |
|
1 x IDE |
2 x SATA 3Gb/s |
|
1 x RS-232/422/485 with Auto Flow control |
|
1 x 6-pin header for KB/MS |
|
|
|
Expansion |
|
|
1 x PCI-104
2 x PCIe Mini card slot, one support IEI mini DOM
1 x PCI |
|
|
Digital I/O |
|
|
16-bit digital I/O, 8-bit input / 8-bit output |
|
|
Super IO |
|
|
Fintek F81865 |
|
|
Audio |
|
|
Realtek ALC 888 HD codec |
|
|
|
Display Interface |
|
|
Analog CRT up to 2048x1536 for D525/ D425
Support for CRT hotplug
18-bit single-channel LVDS, resolution support up to WXGA 1366x768 or XGA 1024x768
24-bit dual-channel LVDS by Novatek 68667UFG, resolution support up to 1920x1080 |
|
|
Watchdog Timer |
|
|
Software programmable support 1~255 sec. system reset |
|
|
TPM |
|
|
2 x 10-pin pinheader |
|
|
SMBus |
|
|
1 x 4-pin wafer |
|
|
DC connector |
|
|
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
2pcs 1 x 2-pin wafer for SATA power 5V connector |
|
|
Power Supply |
|
|
12V only |
|
|
Power Consumption |
|
|
12V@1.46A (Intel® Atom™ D525 1.8GHz with DDR3 1GB*2) |
|
|
Temperature |
|
|
-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D525 processor
-20°C ~ 65°C with free air, -20°C ~ 70°C with force air for D425 processor |
|
|
Humidity |
|
|
Operation: 5% ~ 95%, non-condensing |
|
|

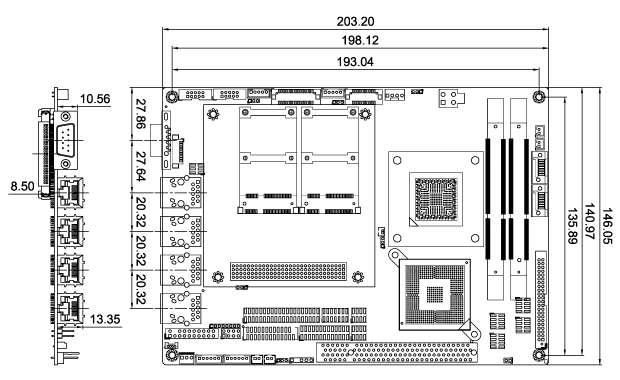

Dimensions |
|
|
203 mm x 146 mm |
|
|
Weight |
|
|
GW: 1000g / NW: 400g |
|
|
|
|
|
|
 |
|
|
|
|
|
1 x NOVA-PV-D4251/D5251 single board computer |
1 x KB/MS Y cable (P/N: 32000-023800-RS) |
|
1 x Audio cable (P/N: 32000-072100-RS) |
1 x VGA cable (P/N: 32000-033804-RS) |
|
1 x SATA with Power cable kit (P/N: 32801-000201-100-RS) |
1 x Quad RS-232 cable (PN: 32100-147900-RS) |
|
1 x USB cable (PN: 32000-070301-RS) |
1 x Mini jumper pack |
|
1 x QIG |
1 x Utility CD |
|
|
|
|
|
|
|
|
Part No. |
Description |
|
NOVA-PV-D5251-G4-R10 |
5.25" SBC, Intel® Dual Core Atom™ D525 1.8GHz, DDR3, 18 bits LVDS/ VGA, Dual PCIe Mini, Quad PCIe GbE, USB2.0, SATA 3Gb/s, audio, RoHS |
|
NOVA-PV-D4251-G2L2-R10 |
5.25" SBC, Intel® Dual Core Atom™ D425 1.8GHz, DDR3, 18+48-bits LVDS/ VGA, Dual PCIe Mini, Dual PCIe GbE, USB2.0, SATA 3Gb/s, audio, RoHS |
|
NOVA-PV-D5251-G2L2-R10 |
5.25" SBC, Intel® Dual Core Atom™ D525 1.8GHz, DDR3,18+48 bits LVDS/ VGA, Dual PCIe Mini, Dual PCIe GbE,USB2.0, SATA 3Gb/s, audio, RoHS |
|
32200-000009-RS |
44 pin 2.5" IDE cable |
|
32200-015100-RS |
LPT cable |
|
32205-000300-100-RS |
RS-232/422/485 cable |
|
19FTS00032100-000001-RS |
CPU fan |
|
TPM-IN01-R11 |
20-Pin Infineon TPM module, software management tool, firmware V3.17 |
|
|
|
|
