KINO-AQ670
KINO-AQ670

KINO-AQ670
KINO-AQ670 Features KINO-AQ670 Products Information
KINO-AQ670 Specifications KINO-AQ670 Dimensions
KINO-AQ670 Ordering Information KINO-AQ670 Packing List

  KINO-AQ670 Features

KINO-AQ670 LGA1155 with Intel® new generation Core™Core™ i7/i5/i3/Pentium® and Celeron® processor supported
KINO-AQ670 Dual-channel DDR3 1333/1066MHz supports up to 16GB
KINO-AQ670 Support dual indenpendent displays by VGA and DVI-D
KINO-AQ670 High speed USB 5Gb/s and SATA 6Gb/s supported
KINO-AQ670 Intel GbE Lan with Intel® AMT 7.0 support
KINO-AQ670 IEI One Key Recovery solution allows you to create rapid OS backup and recovery
KINO-AQ670

  KINO-AQ670 Products Information




KINO-AQ670 KINO-AQ670 KINO-AQ670
KINO-AQ670

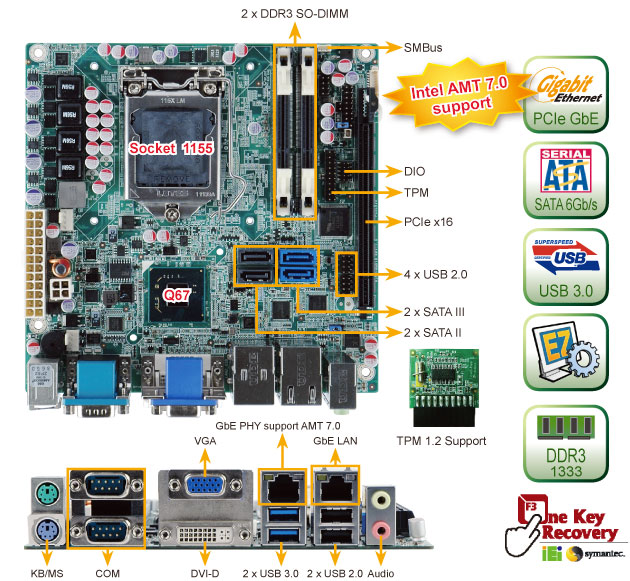

KINO-AQ670 Mini-ITX SBC supports LGA1155 Intel® Core™ i7 /i5/ i3/Pentium® and Celeron® CPU, DDR3, VGA/ DVI-D, 2COM, Intel GbE, SATA 6Gb/s, US B3.0, HD Audio and RoHS
KINO-AQ670
KINO-AQ670
KINO-AQ670 KINO-AQ670 KINO-AQ670
KINO-AQ670


  KINO-AQ670 Specifications




CPU LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium® and Celeron® processor
Chipset Intel® Q67
Memory Two 204-pin 1066/1333MHz dual-channel DDR3 SDRAM SO-DIMM supported
(system max. 16GB)
BIOS UEFI BIOS
Ethernet Intel® 82583V PCIe controller
Intel® 82579 PHY with Intel® AMT 7.0 support
Graphics Engine Support for DX10.1 and OpenGL3.0, full MPEG2. VC1. AVC decode
Display Output VGA intrgrated in Intel® Q67
DVI-D integrated in Intel® Q67
Super IO Fintek F81866
Audio Realtek ALC662 HD Audio Codec
I/O Interfaces 2 x RS-232
1 x TPM pin header
6 x USB 2.0
2 x USB 3.0
2 x SATA 3Gb/s
2 x SATA 6Gb/s with Raid 0,1,5,10 support
1 x PS/2 KB/MS
Expansion 1 x PCIe x16 slot
Watchdog Timer Software Programmable support 1~255 sec. System reset
GPIO Programmable 8-bit GPIO
Fan Connector 1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
Power Supply ATX Power Supply
Power Consumption 5V@3.84A, 12V@0.16A, Vcore_12V@5.31A, 3.3V@1.81A, 5VSB@0.5A (2.5GHz Intel® Core™ i5-2400S with 2GB*2 DDR3 1333MHz)
Operating Temperature -10°C ~ 60°C
Operating Humidity 5% ~95%, non-condensing
Dimensions 170mm x 170mm
Weight GW:1100g, NW: 700g
KINO-AQ670

  KINO-AQ670 Dimensions (Unit: mm)




KINO-AQ670
KINO-AQ670

  KINO-AQ670 Packing List




1 x KINO-AQ670 Single Board Computer
1 x Mini Jumper Pack
1 x I/O shielding (P/N: 45014-0008C0-00-RS) 1 x Utility CD
4 x SATA Cable (P/N: 32801-000703-200-RS) 1 x QIG

KINO-AQ670

  KINO-AQ670 Ordering Information




Part No. Description
KINO-AQ670-R10 Mini-ITX SBC supports LGA1155 Intel® Core™ i7/i5/i3 CPU, DDR3, VGA/DVI-D, 2COM, Intel GbE, SATA 6Gb/s, USB 3.0, HD Audio and RoHS
19800-003100-100-RS Dual ports USB cable with bracket
32102-000100-200-RS SATA power cable
SACF-KIT01-R10 SATA to CF converter board
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17
CPU-DT-i5-2500T Intel® Core™ i5-2500T processor, LGA-1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T Intel® Core™ i5-2390T processor, LGA-1155, dual core 2.7GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2120T Intel® Core™ i3-2120T processor, LGA-1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G620T Intel® Pentium® G620T processor, LGA-1155, dual core 2.2GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440 Intel® Celeron® G440 processor, LGA-1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W
CF-1156B-RS High-performance LGA1155/LGA1156 cooler kit, 95W
CF-1156C-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W
KINO-AQ670
