IEI Launches the New AFL3-W15A-BT Industrial Panel PC
 High Performance Interactive System |
|
|
|
|
• Fan-less design
• Green memory: low voltage DDR3L supports up to 8 GB
• New graphic performance
|
|
|
|
The latest Intel® Atom™ processor includes a 7th generation Intel® GPU with burst technology to provide a stunning graphics and media experience. Seamless video playback is supported by a high performance and low power hardware acceleration of media encode and decode.
• 3D graphics hardware acceleration including support for DirectX*11, OCL 1.2, OGL ES Halti/2.0/1.1, OGL 3.2
• Video decode hardware acceleration including support for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats
• Video encode hardware acceleration including support for H.264, MPEG2 and MVC formats
|
|
 |
|
Easy Assembly and Symmetric Outlook |
|
|
|
|
|
|
|
|
IP64 Front & IPx1 Rear, -20°C~50°C Extended Temperature |
|
|
|
|
|
|
|
|

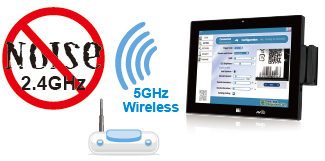

• 2.4GHz and 5GHz Dual Band supplies faster and reliable signal
• The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.
|
 |
 |
|
|
|

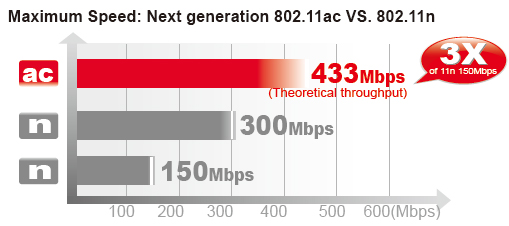

Performance comparison |
AFLI with 802.11 b/g/n 2.4GHz |
AFL3 with 802.11 ac 5GHz |
|
office |
office |
High_Performance_Throughput
(down)Average (Mbps) |
19.159 |
92.91 |
High_Performance_Throughput (UP)
Average (Mbps) |
32.767 |
94.828 |
|
HTTPtxt (down)Average (Mbps) |
4.758 |
3.969 |
|
HTTPtxt (UP) Average (Mbps) |
4.431 |
6.594 |
|
|
|
|

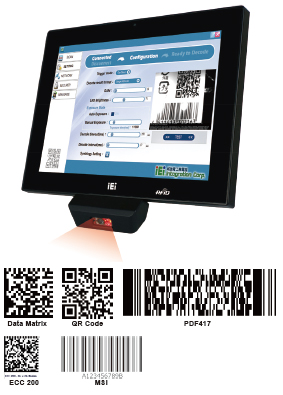

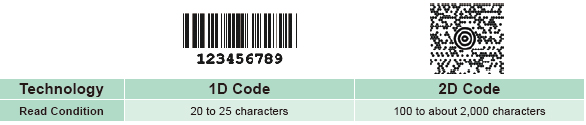

1D/2D Barcode Scanning for Retail Applications (optional) |
|
|
|
|
|
|
Model |
AFL3-2D-R10 |
|
1D/2D Image Engine |
Resolution :752×480 CMOS |
|
I/O interface |
USB |
|
Sym-bologIes |
2D
PDF417, Data Matrix (ECC200, CC000,050,080,100,140), QR Code, etc
1D
Code128, EAN-13, EAN-8, Code39(billing), UPC-A, UPC-E, Codabar, Interleaved 2 of
5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. |
|
|
|
 |
|
|
|
|
Software OSD configuration |
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Model |
AFL3-W15A-BT-R10 |
|
LCD Display |
15.6” |
|
Max Resolution |
1366 x 768 (16:9) |
|
Brightness (cd/m²) |
300 |
|
Contrast Ratio |
700:1 |
|
LCD Color |
16.7M |
|
Pixel Pitch (mm) |
0.240 (H) x 0.240 (V) |
|
Viewing Angle (H-V) |
160º / 160º |
|
Backlight MTBF(hrs) |
50000 (LED backlight) |
|
Touch Screen |
5-wire resistive type with RS-232 interface / projected capacitive type with USB interface |
|
Touch Controller |
PenMount DMC9000/ EETI EXC7200 |
|
CPU |
Intel® Celeron® J1900 (quad core, 2 GHz) |
|
RAM |
One 204-pin 1333MHz single-channel DDR3L SDRAM, 2GB pre-installed (system max. 8GB) |
|
Ethernet |
2 x PCIe GbE by RTL8111E controller |
|
Audio Codec |
ALC892 |
|
Storage |
mSATA
2.5” SATA 3Gb/s HDD bay |
|
Input / Output |
1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector) (RI/5V/12V)
2 x USB 2.0
2 x USB 3.0
2 x GbE LAN
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Audio port (line-out)
1 x 9-30V Lockable power jack |
|
Audio |
AMP 3W + 3W (internal speakers) |
|
Camera |
2-megapixel with low light function, digital microphone |
|
OSD Function |
Software OSD |
|
Thermal Solution |
Fanless |
|
Wireless |
IEEE 802.11a/b/g/n/ac |
|
Front Panel Construction |
PC + ABS Plastic |
|
Mounting |
Panel, Wall, Rack, Stand and Arm
VESA 75mm x 75mm / 100mm x 100mm |
|
Color |
Black C |
|
Dimensions (WxHxD) (mm) |
396 x 250 x 53 |
|
Cut out (WxH) (mm) |
273 x 226 |
Operating Temperature (°C)
(Ambient with air flow) |
-20°C~50°C |
|
Storage Temperature (°C) |
-20°C~60°C |
|
Humidity |
10% to 95% (non-condensing) |
|
IP Level |
IP 64 compliant front panel |
|
Safety&EMC |
CE / FCC |
|
Power Requirement |
9 V ~ 30 V |
|
Power Consumption |
12V@4.16A (Intel® J1900 CPU with 2GB 1333 MHz DDR3 memory) |
|
|
|
|
Fully Integrated I/O |
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
Part Number |
Description |
|
AFL3-W15A-BT-J1/PC/2G-R10 |
Wide 15.6” 300 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac, projected capacitive touch screen, 2GB DDR3L RAM, 2-megapixel camera, microphone, R10 |
|
AFL3-W15A-BT-J1/R/2G-R10 |
Wide 15.6” 300 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac, resistive touch window, 2GB DDR3L RAM, 2-megapixel camera, microphone, R10 |
|
|
|
|
Options |
|
|
|
|
Item |
AFL3-W15A-BT |
|
Panel Mounting Kit |
AFL3PK-W07A-R10 |
|
Wall Mounting Kit |
AFLWK-19B |
|
Rack Mount Kit |
AFL3RK-W15A-R10 |
|
Arm |
ARM-11-RS/ARM-31-RS |
|
Stand |
STAND-A21-R10/ STAND-210-R11/STAND-A19-RS/STAND-C19-R10 |
|
1D/2D Barcode Scanner |
AFL3P-12MSR-U-R10 |
|
Barcode Scanner |
AFL3-2D-R10 |
RFID Reader
(13.56 MHz Mifare Type)
(For ATO assembly) |
AFL3-MF-RFID-KIT02-R10* |
|
OS: Win 7 Embedded |
AFL3-W07A-BT-WES7P-R10 (for PCAP touch)
AFL3-W07A-BT-WES7E-R10 (for Resistive touch) |
|
OS: Win 8 Embedded |
AFL3-W07A-BT-WE8S-R10 |
-
*RFID support after AFL3-xxA-BT R11 version
|
|
|
|
Packing List |
|
|
|
|
Item |
Part No. |
Q’ty |
Description |
|
One Key Recovery DVD |
7B000-001083-RS |
1 |
|
|
Round head machine screw |
44003-020041-RS |
4 |
M2*4 round head machine screw |
|
Pan head machine screw |
44403-040061-RS |
4 |
M4*6 pan head machine screw |
|
Fix holder |
46003-009500-RS |
2 |
|
|
Power cord |
32702-000200-100-RS |
1 |
|
|
Power adapter |
63040-010060-120-RS |
1 |
60W; Vin: 90V~264V AC; Vout: 12VDC; Φ2.5/Φ5.5/lock |
|
Driver CD |
|
1 |
|
|
RJ-45 to DB-9 COM port transfer cable |
32005-000200-200-RS |
1 |
300mm, 26AWG, (A) D-SUB 9 male, (B) RJ-45 |
|
Touch pen |
43125-0002C0-00-RS |
1 |
Resistive touch screen only |
|
|
|
|
