PPC-37 series N2600
 PPC-37 Series Features |
|
|
|
 |
The PPC-37XXA-N26 series carries with 3rd generation Intel® Atom™ N2600 processor provides reduced power consumption with high performance suitable for industrial computing. |
|
|
Compact Size with Dual Core High Performance |
 |
 |
8.4"/10.4"/12.1" dual core Intel® Atom™ N2600 processor at 1.6GHz with pre-installed 2GB SO-DIMM DDR3 |
|
Reliable 9-28V DC and Ruggedized |
|
|
9-28V DC input for automation and vehicle applications |
|
|
Lower system power consumption |
|
|
IP65 front panel compliant |
|
Extension Slot PCIe mini card for SSD or WIFI module |
|
|
Compact and high capacity mSATA SSD supported |
|
|
IEEE 802.11 b/g/n 2T2R mode WLAN |
|
 |
|
 |
|
Better Efficiency with Intel® N2600 Dual Core Processor |
|
|
|
|
PPC-37XXA-N26 new series integrates with Intel dual core running at 800 MHz DDR3 capability for processor running fast. Lower CPU utilization support stability to extend system lifecycle. |
 |
|
 |
• |
N2600 CPU Performance is 31% better than N270 |
|
• |
Graphics performance is 36% better than N270 |
|
• |
Memory performance is 21% better than N270 |
|
|
|
|
|
|
Flexibility with different Storage |
|
|
|
|
The user can choose optimal demand from two storage choices , which is included HDD drive bay and mSATA mini card. |
|
|
|
|
|
|
|
|
Flexible Extension Slot |
|
|
|
|
PCIe mini interface provides either SATA signals such as mSATA storage or PCIe signals like WIFI module. |
 |
802.11 b/g/n 2T2R
This series provide 2T2R for transferring wider range and faster speed rate, which depends on how many antennas are for MIMO |
|
|
|
|
|
|

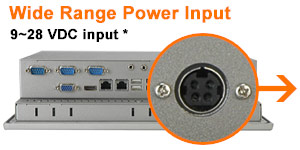

Wide Power 9~28 VDC Input |
|
|
|
 |
|
Wide Range 9~28VDC input * |
Wide range DC input fits different power source depends on what circumstance needed.
* Default 12V DC adapter, for other power input, please contact IEI sales team. |
|
|
|
Power supply requirement varies from applications. Incorrect voltage input will damage electronic components thus cause system break down. PPC-37 series offers wide voltage power input, which fits different application scenarios and increase stability of the system. |
 |
 |
 |
|
Factory Manufacture Control |
Automation Central Control |
Truck Control (24V) |
|
|
|
|
|
Optional Mounting Design |
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Model |
PPC-3708A-N26 |
PPC-3710A-N26 |
PPC-3712A-N26 |
|
Display |
LCD Size |
8.4" |
10.4" |
12.1" |
|
Max Resolution |
800(W) x 600(H) |
800(W) x 600(H) |
1024(W) x 768(H) |
|
Brightness (cd/m2) |
450 |
400 |
500 |
|
Contrast Ratio |
600:1 |
700:1 |
700:1 |
|
LCD Color |
262K |
|
Pixel Pitch (mm) (HxV) |
0.213(H) x 0.213(V) |
0.264(H) x 0.264(V) |
0.3075(H) x 0.3075(V) |
|
Viewing Angle (V/H) |
140°/160° |
140°/160° |
160°/160° |
|
Backlight MTBF (hrs) |
50000 (LED Backlight) |
|
Touch |
Touch screen |
Resistive Type 4-Wire with RS-232 interface |
Resistive Type 5-Wire with RS-232 interface |
Resistive Type 5-Wire with RS-232 interface |
|
Touch controller |
EETI MBMER4040CPBG |
EETI MBMER4050CMBG |
EETI MBMER4050CMBG |
|
Motherboard |
SBC |
NANO-CV-N26001 |
|
CPU |
Intel® Atom™ N2600 dual-core processor 1.6GHz |
|
Chipset |
Intel® NM10 |
|
RAM |
One 204-pin SO-DIMM socket, supporting DDRIII 800MHz modules for up to 2GB |
|
Ethernet |
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0 |
|
Audio Codec |
Realtek ALC662 HD audio codec |
|
I/O Ports and Switches |
2 x RS-232
1 x RS-422/485
2 x RJ-45 for LAN Port
2 x USB 3.0
2 x USB 2.0
1 x HDMI
1 x VGA Port
1 x Line-in, Line-out, Mic-in
1 x 12VDC input Power Jack
1 x Power Switch |
|
Drive Bay |
HDD Driver Bay |
1 x 2.5" SATA HDD Bay |
|
SSD |
1 x mSATA (Optional) |
|
CD-ROM Driver Bay |
N/A |
N/A |
Slim Type CD-ROM Bay |
|
Expansion Slot |
1 x PCIe Mini card |
|
Connectivity |
Wireless |
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Optional |
|
Physical |
Construction Front Panel |
Aluminum Die-casting |
|
Chassis Construction |
Heavy-duty Steel (SECC) |
|
Mounting |
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
|
Front Panel Color |
Silver (Pantone 8001C) |
|
Dimensions (WxHxD) (mm) |
244 x 175 x 86.5 |
311 x 242 x 77.8 |
340 x 260 x 74.8 |
|
Cut Out Dimensions (WxH) (mm) |
233 x 167 |
291 x 221 |
313 x 233 |
|
Net /Gross Weight |
2.2Kg/ 4.4Kg |
3.4Kg / 5.8Kg |
6 Kg / 8 Kg |
|
System Cooling |
Fanless |
|
Environment |
Operation Temperature |
-10°C ~ 50°C |
|
Storage Temperature |
-20°C~60°C |
|
Vibration |
5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak |
|
Shock |
10G acceleration part to part (11ms) |
|
Power Supply |
Power Adapter |
P/N: 63040-010060-050-RS
60W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC |
|
 |
|
Ordering Information |
|
|
|
|
Part No. |
Description |
|
PPC-3708A-N26/R/2G-R10 |
8.4" 450 cd/m2 SVGA Panel PC with Intel® Atom™ N2600 1.6GHz processor, 2GB DDR3 RAM, and touch screen, 9~28VDC input, RoHS |
|
PPC-3710A-N26/R/2G-R10 |
10.4" 400 cd/m2 SVGA Panel PC with Intel® Atom™ N2600 1.6GHz processor, 2GB DDR3 RAM, and touch screen, 9~28VDC input, RoHS |
|
PPC-3712A-N26/R/2G-R10 |
12.1" 500 cd/m2 XGA Panel PC with Intel® Atom™ N2600 1.6GHz processor, 2GB DDR3 RAM, and touch screen, 9~28VDC input, RoHS |
|
|
|
|
Packing List |
|
|
|
|
Item |
Part No. |
Description |
|
Screw Kit |
19600-000205-RS |
|
|
SATA CD-ROM Cable |
32801-006300-100-RS |
SATA 7+6P FEMALE 180°; SATA 7P FEMALE 90°+LOCK; DU PONT 2*4P P=2.54 FEMALE for for PPC-3712A-N26 |
|
Power Cord |
63040-010060-040-RS |
EUROPEAN Standard ,1830MM, PLUG(16A 250V), CONNECTOR (10A 250V) |
|
Power Adapter |
63040-010060-050-RS |
84W, 90VAC~264VAC |
|
PS/2 Cable |
32006-000300-100-RS |
1 x MINI DIN 6PIN MALE; 2 x MINI DIN 6PIN FEMALE |
|
Panel Mounting Kit |
19Z00-000026-RS |
|
|
Wall Mounting Kit |
41014-057602-00-RS |
ULTRA SET PLATE |
|
41020-016102-00-RS |
WALL MOUNT BRACKET |
|
IEI One Key Recovery CD |
IEI-7B000-000478-RS |
|
|
Touch Screen Driver CD / Touch Pen |
|
User Manual & Driver CD |
|
|
|
|
IQ Mounting Options |
|
|
|
|
Item |
Part No. |
|
Rack Mount Kit |
RK-084MS-R10 |
RK-104MS-R10 |
RK-121MS-R10 |
|
ARM |
ARM-11-RS |
|
STAND |
STAND-100-RS |
|
|
|
|
Options |
|
|
|
|
Item |
Part No. |
Description |
|
Wi-Fi module |
PPC-WL-KIT02-R10 |
Wi-Fi module with RF cable and antenna, 2T2R, 802.11 b/g/n for PPC-37xxA-N26 series |
|
|
|
|
