IEI Launches the New PPC-F15B-BT Intelligent Industrial Panel PC
 Features |
|
|
|
 |
Support iRIS-2400 IEI remote intelligent solution |
|
IntelIntel® Celeron® J1900 quad-core SoC |
|
|
Robust IP65 aluminum front bezel |
|
Dual full-size PCIe Mini card expansion |
|
|
Projected capacitive multi-touch and resistive single touch options |
|
Aesthetic ultra-thin bezel for seamless panel mount installation |
|
|
9-36V DC wide range DC input |
 |
|
 |
|
IEI Remote Intelligent Management System |
|
|
|
|

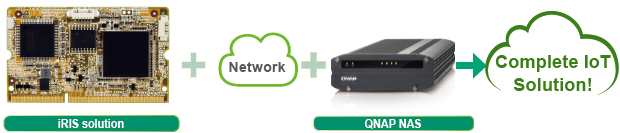

The PPC-F supports iEi iRIS remote management, which helps users to manage multiple devices through single management interface and elevates work efficiency. iRIS solution only requires a module and Internet connection! |
 |
|
|
|
■ Remote Power Management |
 |
|
Users can remotely power on/off all the iRIS devices and set up power cycle to simplify power control process. |
 |
|
|
|
|

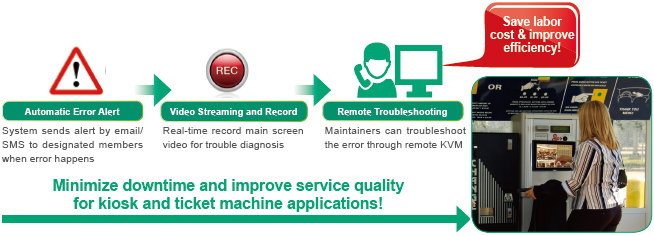

■ 24-hour Active Recovery |
|
|
Remote troubleshooting everywhere, there is no need to send out maintenance staff anymore! |
|
 |
|
|
|
Latest Intel® Cost Effective Mainstream H81 Platform |
|
|
|
|
|
|

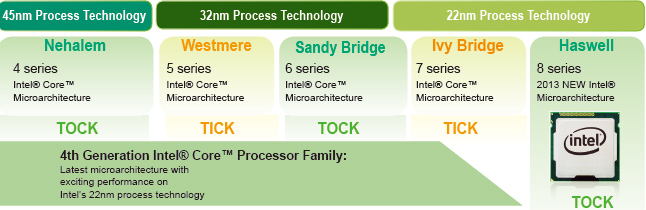

■ Platform Transition |
 |
|
|
|
■ Major Advantage of PPC-F H81 Platform |
|
|
|
More Embedded CPU Choice |
 |
|
IEI selects more embedded CPUs in Haswell generation, including 35W/45W/54W/65W for the PPC-F H81 platform. It is more flexible to choose suitable CPU for different system requirements. |
|
SATA 3.0 support |
|
|
The PPC-F series equips with the latest SATA 3.0 interface that supportsbandwidth up to 6Gb/s which is twice faster than SATA 2.0! Both 2.5” SATA HDD and SSD can be used in the SATA 3.0 interface. |
 |
|
|
|
|
■ PCIe Mini Card Expansion |
|
|

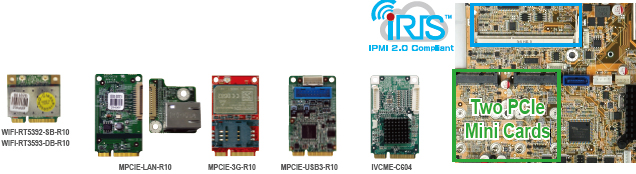

Two full-size PCIe Mini card expansion slots are reserved in the PPC-F 2. With a wide variety of IEI PCIe Mini card solutions, it is flexible and easy to add extra functions on the system. |
 |
|
|
|
|
|
Specifications |
|
|
|
|
Model Name |
PPC-F15B-BT |
|
LCD |
LCD Display |
15’’ (4:3) |
|
Max Resolution |
1024(W) x 768(H) |
|
Brightness (cd/m²) |
400 |
|
Contrast Ratio |
700 : 1 |
|
LCD Color |
16.2M |
|
Pixel Pitch (mm) |
0.29 x 0.29 |
|
Viewing Angle (H-V) |
160° / 140° |
|
Backlight MTBF (Hrs) |
50000 |
|
Motherboard |
CPU |
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz) |
|
RAM |
2 x 204-pin DDR3L SO-DIMM slot (max. 8GB), pre-installed with 2GB |
|
Touch |
Touchscreen |
5-wire resistive single-touch type flat touchscreen
/ 2-point projected capacitive type touchscreen |
|
Input Interfaces |
I/O Ports & Switch |
2 x RJ-45 LAN port
2 x USB 3.0
2 x USB 2.0
1 x HDMI
2 x RS-232
1 x RS-232/422/485
1 x VGA
1 x 9 V~36 V DC jack (4-pin)
1 x 9 V~36 V DCTerminal block
1 x Line-out (PPC-F15B and PPC-17B only)
1 x Power switch |
|
Expansion |
1 x Full-size PCIe Mini card slot (with PCIe and USB signal)
1 x Full-size PCIe Mini card slot colay mSATA (SATA2 only) (with PCIe and USB signal) |
|
Wireless LAN |
802.11 a/b/g/n/ac + Bluetooth v4.0 wireless kit (SMA antenna) (optional) |
|
Drive Bay |
1 x 2.5” HDD/SSD drive bay |
|
iRIS Remote Management Solution |
iRIS-2400 slot |
|
Physical |
Construction Material |
Aluminum front cover and sheet metal rear cover |
|
Mounting |
Panel Mount/ Rack Mount/ 100 x 100 VESA Mount |
|
Enclosure Color |
Black C |
|
Dimension (mm) |
303 x 378.5 x 46.2 |
|
Weight (Net) |
3.1kg |
|
Cutout Dimensions (mm) |
285.6 x 361 |
|
Environment |
Operating Temperature
(with air flow) |
-10°C~50°C (14°F~122°F) |
|
Storage Temperature |
-20°C~60°C (-4°F~140°F) |
|
Humidity |
10% to 95% (non-condensing) |
|
IP Level |
IP 65 compliant front panel |
|
Safety and EMC |
CE & FCC Class A certified |
|
Power Input |
9 V~36 V DC |
|
Power Consumption |
41W |
|
|
|
|
Fully Integrated I/O |
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
Part Number |
Description |
|
PPC-F15B-BTi-J1/2G/R-R10 |
15” 400 cd/m² XGA panel PC with Intel® Celeron® processor J1900, TDP 10W, one 2 GB RAM, support iRIS-2400, black color, 9-36V DC input, resistive touch window, R10 |
|
PPC-F15B-BTi-J1/2G/PC-R10 |
15” 400 cd/m² XGA panel PC with Intel® Celeron® processor J1900, TDP 10W, one 2 GB RAM, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window, R10 |
|
|
|
|
Options |
|
|
|
|
Item |
PPC-F15B |
|
ARM |
ARM-31-RS |
|
Stand |
STAND-C19-R10
STAND-A19-RS |
|
Wall Mount Kit |
WK-190MS-R10 |
|
Panel Mount Kit |
FPK-10-R10 |
|
Rack Mount Kit |
FRK15-R10 |
|
WiFi Kit |
PPC-WL-KIT02-R11 |
iRIS kit
(IEI Remote Intelligent System) |
iRIS-2400-RS |
|
|
|
|
Packing List |
|
|
|
|
Item |
Q’ty |
Remark |
|
PPC-FxxB-BTi Panel PC |
1 |
|
|
User Manual & Driver CD |
1 |
|
|
One Key Recovery CD |
1 |
|
|
Touch Pen |
1 |
Resistive type models only P/N: 43125-0002C0-00-RS |
|
Power Cord |
1 |
Part numbers varies by regions |
|
Screw Pack |
1 |
Including necessary screws |
|
Power Adapter |
1 |
9V~36V DC |
|
|
|
|
