WAFER-NM701-1007U
 Features |
|
|
|
 |
3.5” SBC with on-board 32nm 1.5GHz Intel® Celeron® 1007U dual-core mobile processor |
|
|
VGA and LVDS support dual display |
|
|
One 204-pin 1333/1066MHz DDR3 SO-DIMM supports up to 8GB memory |
|
|
Easy fanless thermal design by assembling heat spreader on system chassis |
|
|
Supports four COM, six USB 2.0, two SATA 3Gb/s, one mSATA and audio |
|
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
|

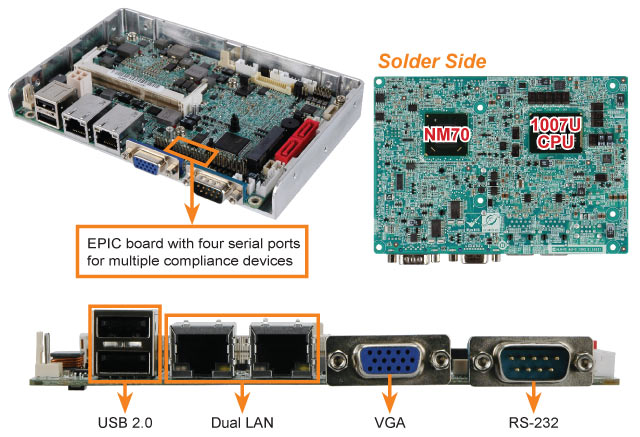

Cost Effective Performance Solution |
|
|
|
The first low power Intel® Celeron® Dual-core platform with on-board processor (TDP=35W) with fanless design. |
|
|
|
|
|
|
Specifications |
|
|
|
|
CPU |
On-board 32nm 1.5GHz Intel® Celeron® 1007U dual-core mobile processor |
|
PCH |
Intel® NM70 |
|
BIOS |
UEFI BIOS |
|
Memory |
One 204-pin 1333/1066 DDR3 SO-DIMM supported (system max. 8GB) |
|
Graphics |
Intel® HD Graphics Gen 6 support for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode |
|
Display Output |
Dual independent display support
VGA integrated in NM70 (2048x1536@75MHz)
Dual channel 24-bit LVDS integrated in NM70 (1920x1600@60MHz) |
|
Ethernet |
Dual PCIe GbE by Realtek RTL8111E controller with ASF 2.0 support |
|
Super I/O |
Fintek F81867 |
|
I/O Interfaces |
2 x USB 2.0 (on rear)
2 x SATA 3Gb/s with SATA 5V power connector
4 x USB 2.0 (by pin header)
1 x 6-pin wafer for PS/2 KB/MS
1 x RS-422/485 (by pin header)
3 x RS-232 (1 on rear, 2 by pin header) |
|
Audio |
Realtek ALC662 HDA codec (Line-in, Line-out, Mic) |
|
Front Panel |
1 x 10-pin (1x10) header |
|
SMBus |
1 x 4-pin (1x4) wafer |
|
Expansion |
1 x Full/Half-size PCIe Mini card slot with mSATA support |
|
Digital I/O |
8-bit digitial I/O (4-bit input/ 4-bit output) |
|
Fan Connector |
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector (smart fan support) |
|
Power Supply |
12V only, AT/ATX support |
|
Power Consumption |
12V@2.72A (Intel® mobile Celeron® 1007U 1.5GHz processor with 1333MHz 8GB DDR3 memory) |
|
Watchdog Timer |
Software programmable support 1~255 sec. System reset |
|
Operating Temperature |
-10°C ~ 60°C |
|
Storage Temperature |
-20°C ~ 85°C |
|
Operating Humidity |
5% ~95%, non-condensing |
|
Dimensions |
146 mm x 102 mm |
|
Weight |
GW:600g / NW:250g |
|
|
|
|
Packing List |
|
|
|
|
1 x WAFER-NM701-1007U single board computer |
|
2 x Plastic shaft for securing half-size PCIe Mini card (P/N: 43124-0010C2-01-RS) |
|
1 x PS/2 KB/MS Y-cable (P/N: 32000-023800-RS) |
|
2 x SATA with power cable kit (P/N: 32801-000201-100-RS) |
|
1 x Audio cable (P/N: 32000-072100-RS) |
1 x One Key Recovery CD |
|
1 x Power cable (P/N: 32100-087100-RS) |
1 x Mini jumper pack |
|
1 x RS-232 cable (P/N: 32200-000049-RS) |
1 x Utility CD |
|
1 x Heat spreader |
1 x QIG (Quick Installation Guide) |
|
|
|
|
Ordering Information |
|
|
|
|
Part No. |
Description |
|
WAFER-NM701-1007U-R10 |
3.5” SBC with on-board Intel® Celeron® Dual-core 1007U 1.5GHz Processor, DDR3, VGA/LVDS, Dual GbE, USB 2.0, mSATA, SATA 3GB/s and Audio |
|
32001-002700-200-RS |
Dual port USB cable |
|
32205-003800-100-RS |
RS-422/485 cable, 200mm |
|
32200-000049-RS |
RS-232 cable, 200mm, pitch 2.0mm |
|
|
|
|
