IEI Launches the new NANO-BT-i1 Embedded Board

TANK-6000-C226

Features Highly efficient and power optimized multi-format codec engine
Specifications Dimensions Ordering information Packing list

   Features

EPIC SBC supports Intel® 22nm Atom™ or Celeron® on-board SoC
Supports dual independent display with LVDS, VGA and HDMI
1.35V DDR3L 1333/1066 MHz SDRAM support up to 8GB
Support IPMI 2.0 with iRIS-1010 module
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

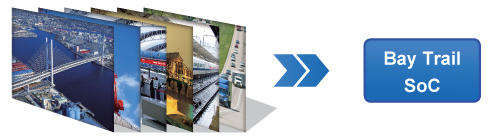

   Highly efficient and power optimized multi-format codec engine

Full HW Acceleration for Video Decode
  H.264, VC1 MPEG2, MVC, VP8, MPEG-4/H.263
  MJPEG formats

Video Encode
  Full HW acceleration for H.264 Hybird HW acceleration of MPEG2


   Specifications

Model Name NANO-BT-i1
SoC Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
BIOS AMI UEFI BIOS
Memory One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Graphics Engine Intel® HD Graphics Gen 7 Engines with 4 execution unit, supports DX11.1, OpenGL 4.2 and OpenCL1.2
Display Output VGA (up to 2560x1600@60Hz)
HDMI (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Ethernet LAN1: Intel® I210-AT PCIe controller with NCSI support
LAN2: Intel® I211-AT PCIe controller
Super I/O Fintek F81866
I/O Interface 2 x SATA 3Gb/s with 5V SATA power connector (no RAID)
1 x USB 3.0 (on rear I/O) 3 x USB 2.0 (1 on rear I/O, 2 by pin header)
1 x RS-422/485 (pin header) 3 x RS-232 (pin header)
1 x PS/2 KB/MS 1 x Micro SD slot (E38XX SKU only)
iRIS Remote Management Module 1 x iRIS-1010 slot
SMBus 1 x 4-pin (1x4) wafer
Audio Realtek ALC662 HD Audio codec
1 x Analog audio by 10-pin (2x5) header
Front Panel 1 x 6-pin (1x6) wafer for power LED & HDD LED
1 x 2-pin (1x2) wafer for power button
1 x 2-pin (1x2) wafer for power reset
LAN LED 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED
Expansion 1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI/104 slot (PCI signal)
Digital I/O 8-bit digital I/O (4-bit input, 4-bit output)
Fan Connector 1 x 3-pin CPU fan connector
1 x 3-pin system fan connector
Power supply 12V only DC input
1 x Internal 4-pin (2x2) power connector
Support AT/ATX mode
Power Consumption +12V@1.52A (Intel® Atom™ Processor J1900 CPU, 1 x 8GB 1333 MHz DDR3 memory)
Watchdog Timer Software programmable, support 1~255 sec. system reset
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Operating Humidity 5% ~ 95%, non-condensing
Dimensions 115mm x 165mm
Weight GW:850g / NW:350g

   Dimensions


   Ordering Information

Part No. Description
NANO-BT-i1-J19001-R10
EPIC SBC supports Intel® 22nm quad-core J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, iRIS-1010, Audio and RoHS
NANO-BT-i1-N29301-R10
EPIC SBC supports Intel® 22nm quad-core N2930 1.83GHz (7.5W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, iRIS-1010, Audio and RoHS
NANO-BT-i1-N28071-R10
EPIC SBC supports Intel® 22nm dual-core N2807 1.58GHz (4.3W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, iRIS-1010, Audio and RoHS
NANO-BT-i1-E38XX1-R10**
EPIC SBC supports Intel® Atom™ E38XX on-board SoC with VGA/ HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, iRIS-1010, Audio and RoHS (by project support, MOQ 100pcs/lot)
iRIS-1010-R10
IPMI 2.0 adapter card with AST1010 BMC chip (W/O KVM over IP function) for PCIe Mini socket interface
32006-000300-100-RS
PS/2 KB/MS Y-cable without bracket
32000-070301-RS
Dual-port USB 2.0 cable
32205-003800-300-RS
RS-422/485 cable, 200mm
**: Those item are by order production, MOQ: 100

   Packing List

1 x NANO-BT single board computer with heatsink 2 x SATA with power cable kit (P/N: 32801-000201-300-RS)
2 x RS-232 cable (P/N: 19800-000300-200-RS) 1 x Power cable (P/N: 32100-087100-RS)
1 x QIG (Quick Installation Guide) 1 x One Key Recovery CD
1 x Utility CD
