IEI Launches the Ruggedized Embedded System TANK-860-HM86

TANK-860-HM86
Features Automation Solution
Multiple Storage Design Versatile Expansion Interface
Redundant Dual DC Power Input Anti-Vibration and Anti-Shock Design
Fully Integrated I/O
Specifications Dimensions Ordering information Options Packing list

   Features

Intel® HM86 chipset + 4th generation Intel® Core™ CPU
Great flexibility of expansion slots
2-slot model: 2 x PCIe by 16, 1 x PCIe Mini slot
4-slot model: 2 x PCIe by 16, 2 x PCI, 2 x PCIe Mini slot
6-slot model: 1 x PCIe by 16, 2 x PCIe by 4, 3 x PCI, 2 x PCIe Mini slot
IPMI function for remote control management
Three indpendent video outputs support high resolution
2 x 2.5" SATA HDD bay design fulfills high storage demand

   Automation Solution

The TANK-860 is a fanless expandable embedded system with PCIe and/or PCI slots. With rich I/O, customers can make it as a control center. Furthermore, the ruggedized design make the TANK-860 more reliable even in harsh environments.

   Multiple Storage Design

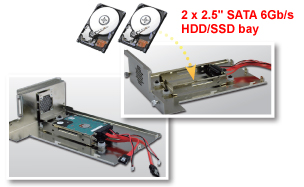

■ Dual 2.5’’ SATA HDD/SSD bay

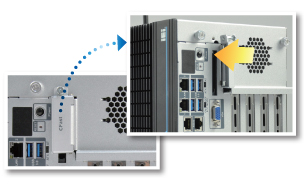

  ■ Swappable CFast Design
With two 2.5" SATA HDD/SSD bays, users can fulfill large storage requirement and use it as a terminal for data acquisition. The easy to assemble design reduces user fatigue in system installation.

CFast is based on the Serial ATA bus and supports up to 300 MBps transfer rates, which is much higher than the CF card. With the hot-swappable design, users can replace the CFast even when the system is running.



   Versatile Expansion Interface

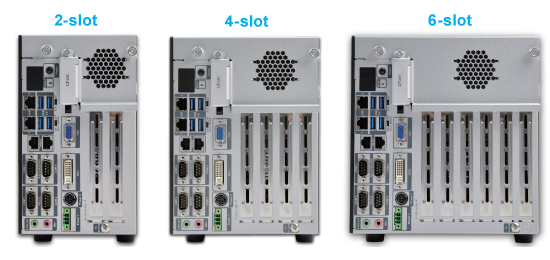

The TANK-860 series has a great variety of different expansion interfaces. From basic 2-slot expansion model to advanced 6-slot expansion model, customers can choose the most suitable one to apply.
2-slot model 4-slot model 6-slot model
Physical Slot PCIe x16 PCIe x16 PCIe x16 PCIe x16 PCIe x4 PCIe x4
Signal PCIe x8 PCIe x8 PCIe x8 PCIe x8 PCIe x4 PCIe x4
Slot type PCIe x16 PCI PCI PCI PCI PCI
Signal PCIe x8 PCI PCI PCI PCI PCI


   Redundant Dual DC Power Input

The TANK-860-HM86 adopts redundant dual DC power input design, which ensures uninterrupted power supply to the system and eliminates the risk of sudden shutdown and data loss, even if one power is unavailable or low voltage capacity is present.

■ Wide Range DC Power Input
The TANK-760 is compliant with MIL-STD-810F standard for shock and vibration. The MIL-STD-810 test series is approved for use by all departments and agencies of the United States Department of Defense (DoD).


   Anti-Vibration and Anti-Shock Design

With the rugged design, the TANK-860-HM86 series is reliable in industrial environments to resist strong vibrations and can be used as a core computer required to be installed on moving objects.


    Fully Integrated I/O

  ■ Front View ■ Rear View
■ Triple Display
The TANK-860 contains VGA/DisplayPort/DVI video outputs, which can be applied to multi-display application and support high Full HD video quality.


   Specifications

Model Name TANK-860-HM86
Chassis Color Black C + Silver
Dimensions (WxHxD) (mm) 2 slot: 121.5 x 255.2 x 205
4 slot: 154.8 x 255.2 x 205
6 slot: 195.4 x 255.2 x 205
System Fan Fanless
Chassis Construction Extruded aluminum alloys
Motherboard Processor CPU Intel® Core™ i5-4400E 2.7 GHz
Intel® Celeron® 2000E 2.2 GHz
Chipset Intel® HM86
System Memory 2 x 204-pin DDR3 SO-DIMM 4 GB pre-installed
(system max: 16 GB)
iRIS Module iRIS Solution iRIS-2400
Storage Hard Drive 2 x 2.5'' SATA 6Gb/s HDD/SSD bay
CF Card/CFast 1 x CFast
mSATA 1 x mSATA (SATA 3Gb/s signal)
I/O Interfaces USB 3.0 4
USB 2.0 2
Ethernet 2 x RJ-45
1 x PCIe GbE by Intel® I210
1 x PCIe GbE by Intel® I217LM
RS-232 4 x DB-9 (two with isolation)
RS-422/485 2 x RJ-45
Digital I/O 8-bit digital I/O, 4-bit input/4-bit output
Display 1 x VGA, 1 x DVI-I, 1 x DisplayPort
Resolution VGA: Up to 1920 x 1200@60Hz
HDMI: Up to 2500 x 1600@60Hz
DisplayPort: Up to 2500 x 1600@60Hz
Audio 1 x Line-out, 1 x Mic-in
Other Reserved IO window for PCIE mini card expasion
Wireless 802.1b/g/n 2T2R (optional)
Expansions PCI/PCIe 2 A: Two PCIe x8 (physical PCIe x16 slot)
4 A: Two PCIe x8 (physical PCIe x16 slot) + 2 x PCI
6 A: One PCIe x8 (physical PCIe x16 slot) + 2 x PCIe by 4 + 3 x PCI
PCIe Mini 2A: 1 x Full-size (Co-lay mSATA)
4A: 1 x Full-size (Co-lay mSATA) + 1 x Full-size (on backplane)
6A: 1 x Full-size (Co-lay mSATA) + 1 x Full-size (on backplane)
Power Power Input DC Jack: 9 V~36 V DC
Power Consumption 19 V@3.34 A
(Intel® Core™ i5 i5-4400E with 4 GB memory)
Reliability Mounting Wall mount
Operating Temperature -20°C ~ 70°C with air flow (SSD),
5% ~ 95%, non-condensing
Operating Shock Half-sine wave shock 5G, 11ms, 3 shocks per axis
Operating Vibration MIL-STD-810F 514.5C-2 (with SSD)
Weight (Net/Gross) 2-slot: 4.2 kg/6.3 kg
4-slot: 4.5 kg/6.5 kg
6-slot: 4.8 kg/6.9 kg
Safety/EMC CE/FCC
OS Supported OS Microsoft® Windows® 8 Embedded,
Microsoft® Windows® Embedded Standard 7 E

   Dimensions








   Ordering Information

Part No. Description
TANK-860-HM86i-i5/4G/2A-R10
Intel® Core™ i5-4400E 2.7 GHz dual-core, TDP 37W, 4GB DDR3 pre-installed memory, 2 x PCIe expansion, VGA/DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-i5/4G/4A-R10
Intel® Core™ i5-4400E 2.7 GHz dual-core, TDP 37W, 4GB DDR3 pre-installed memory, 2 x PCIe and 2 x PCI expansion, VGA/DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-i5/4G/6A-R10
Intel® Core™ i5-4400E 2.7 GHz dual-core, TDP 37W, 4GB DDR3 pre-installed memory, 3 x PCIe and 3 x PCI expansion, VGA/DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-C/4G/2A-R10
Intel® Celeron® 2000E 2.2 GHz dual-core, TDP 37W, 4GB DDR3 pre-installed memory, 2 x PCIe expansion, VGA/DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-C/4G/4A-R10
Intel® Celeron® 2000E 2.2 GHz dual-core, TDP 37W, 4GB DDR3 pre-installed memory, 2 x PCIe and 2 x PCI expansion, VGA/DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS
TANK-860-HM86i-C/4G/6A-R10
Intel® Celeron® 2000E 2.2 GHz dual-core, TDP 37W, 4GB DDR3 pre-installed memory, 3 x PCIe and 3 x PCI expansion, VGA/DVI-I/DisplayPort, iRIS-2400 optional, 9 V~36 V DC, R10, RoHS

   Options

Item Part No. Description
OS: Windows Embedded 7 (CD-ROM) TANK-860-HM86-WES7E-R10 (CD-ROM) OS Image with Windows® Embedded Standard 7 E for TANK-860 H Series, with CD-ROM, RoHS
