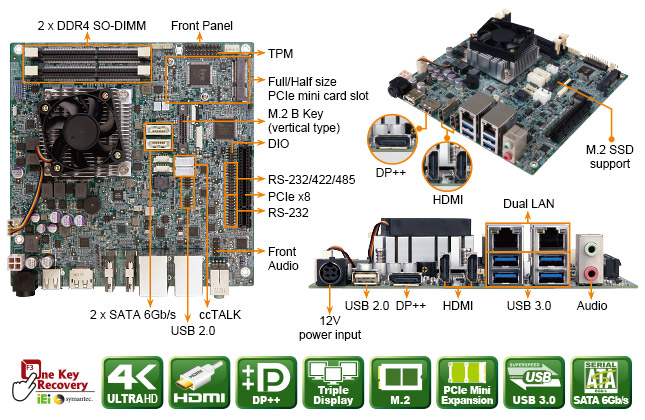

IEI Launches the New gKINO-DMF Mini ITX AMD Motherboard

Features Specifications Dimensions
Ordering Information Packing List
Mini ITX form factor with AMD Merlin Falcon processor with DDR4 memory (ECC support)
Triple display via, HDMI 1.4, DP++
M.2 B key support
Full-size PCIe mini slot
SoC FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
Memory Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB
Graphics Engine AMD Radeon HD 10000graphic,3rd Gen. graphic core,support DX 12, HSA 2.0
UVD v6 decode for H.265 MPEG2/4, VC-1, MVC
VCE v3.1 encode for H.254 VCE
Display Output Triple Independent Display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x DP++ (up to 3840x2160@60Hz)
Ethernet Dual GbE RTL 8111GN
External I/O Interface 4 x USB 3.0
1 x USB 2.0
Internal I/O Interface
1 x MicroSD card slot 2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0) 2 x SATA with 5V/12V output
2 x RS-232 (support Cctalk, TTL) (1x4 pin, P=2.54) 4 x USB 2.0 (2x4 pin, P=2.0)
Audio Realtek ALC662 HD audio codec
2 x Audio jacks (line-out, mic-in) on rear IO
1 x Front audio (2x5-pin)
Front Panel 1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button)
LAN LED 2 x LAN LED (1x2 pin)
SMBus 1 x SMBus (1x4 pin)
I²C 1 x I²C (1x4 pin)
TPM 1 x TPM (2x10 pin)
Digital I/O 8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x 8 slot
1 x Full size PCIe Mini card slot
Watchdog Timer Software Programmable support 1~255 sec. system reset
Chassis Intrusion Detection 1 x Chassis intrusion connector (1x2 pin)
Fan Connector 1 x CPU smart fan (1x4 pin)
1 x System smart fan (1x4 pin)
Power Supply 12V DC input 1 x Internal power connector (2x2 pin)
Support AT/ATX mode 1 x External DC jack (4-pin DIN)
Power Consumption 12V@5.54A (AMD RX-421BD 2.1GHz CPU with 2400 MHz 16GB DDR4 memory)
Storage Temperature -10°C ~ 70°C
Operating Temperature 0°C ~ 60°C
Operating Humidity 5% ~ 95%, non-condensing
Dimensions 170mm x 170 mm
Weight 1100g / NW: 700g
gKINO-DMF Dimensions
   Ordering Information
Part No. Description
gKINO-DMF-421-R10 Mini-ITX SBC supports AMD RX-421BD on board SoC (quad-core 2.1GHz, 35W), DDR4, triple independent displays, HDMI/DP, dual GbE, SATA 6Gb/s, USB 3.0, PCIe mini, M.2, HD audio and RoHS
gKINO-DMF-216-R10 Mini-ITX SBC supports AMD RX-216GD on board SoC (dual-core 1.6GHz, 15W), DDR4, triple independent displays, HDMI/DP, dual GbE, SATA 6Gb/s, USB 3.0, PCIe mini, M.2, HD audio and RoHS
19800-000300-100-RS RS-232 cable with bracket, 300mm, P=2.0
CB-USB02A-RS Dual-port USB cable with bracket, 300mm, P=2.0
TPM-IN01-R20 20-pin Infineon TPM module, software management tool, firmware v3.17
   Packing List
1 x gKINO-DMF single board computer with CPU cooler 1 x One key recovery CD
1 x SATA cable 1 x QIG
1 x I/O shielding 1 x Utility CD
