 Features-DRPC-120-QGW |
| |
|
 |
Buit-in QTS Gateway |
|
Intel® Atom™ E3845 |
|
1 x 2.5'' SATA HDD/SSD drive bay |
|
DDR3L 1.35V SO-DIMM support |
|
Programmable OLED display |
|
8-bit digital I/O (4-bit inputs/outputs) |
 |
|
|
| Specifications |
| |
|
| Model Name |
DRPC-120-QGW |
| Chassis |
Color |
Black |
| Dimensions (WxHxD) (mm) |
74.08 x 140 x 171.5 |
| System Fan |
Fanless |
| Chassis Construction |
Extruded aluminum alloy |
| Motherboard |
CPU |
Intel® Atom™ E3845 1.91 GHz |
| Chipset |
SoC |
| System Memory |
1 x 204-pin DDR3L SO-DIMM 2 GB pre-installed (system max: 8GB) |
| IPMI |
iRIS Solution |
1 x iRIS-2400 (optional) |
| Storage |
Hard Drive |
1 x 2.5'' SATA 3Gb/s HDD/SSD bay |
| I/O Interfaces |
USB 3.0 |
2 |
| USB 2.0 |
2 |
| Ethernet |
2 x RJ-45
1 x PCIe GbE by Intel® I210 controller
1 x PCIe GbE by Intel® I211 controller |
| COM Port |
2 x RS-232 (DB-9 w/3KV isolation protection*)
2 x RS-422/485 (DB-9 w/3KV isolation protection*) |
| Digital I/O |
8-bit digital I/O, 4-bit input/4-bit output |
| Display |
1 x VGA, 1 x HDMI |
| Resolution |
Up to 1920 x 1200 @ 60Hz |
| Wireless |
1 x 802.11b/g/n 1T1R (optional) |
| Expansions |
PCIe Mini |
1 x Half-size PCIe Mini slot (w/o USB signal)
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)* |
| Power |
Power Input |
3-pin terminal block: 9 V ~ 30 V DC |
| Consumption |
12 V@ 2.1 A
(Intel® Atom™ E3845 with 2 GB memory) |
| Reliability |
Mounting |
DIN-rail |
| Operating Temperature |
-20ºC ~ 60ºC with air flow (mSATA), 5% ~ 95%, non-condensing |
| Operating Shock |
Half-sine wave shock 5G, 11ms, 3 shocks per axis |
| Operating Vibration |
MIL-STD-810F 514.5C-2 (with SSD) |
| Weight (Net/Gross) |
1.4 kg/2.5 kg |
| Safety/EMC |
CE/FCC |
| OS |
Supported OS |
Microsoft® Windows 8 Embedded,
Microsoft® Windows® Embedded Standard 7 E |
|
* COM port isolation: 3 kV for 1 sec, 2.5 kV for 1 minute
* DRPC-120-OGW-E5-LED/4G-R10 has only one PCIe mini slot(Half size) |
|
|

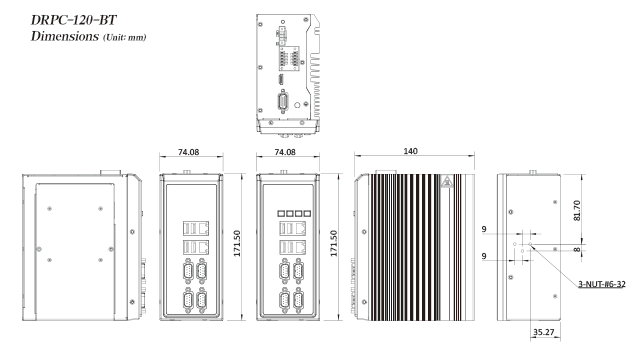

| Dimensions |
| |
|
 |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| DRPC-120-QGW-E5-LED/4G-R10 |
Fanless embedded system with Intel® Bay-Trail E3845 1.91 GHz, TDP 10W,4 GB DDR3L pre-installed memory, with QTS-Gateway, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, LED indicators, RoHs |
|
|
|
| Options |
| |
|
| Item |
Part No. |
Description |
OS: Windows
Embedded 7 |
DRPC-120-WES7E-R10
(CD-ROM) |
OS Image with Windows® Embedded Standard 7 E for DRPC-120 Series, CD-ROM, RoHS |
| Wireless kit |
EMB-WIFI-KIT01-R11 |
1T1R Wi-Fi module kit for embedded system, IEEE802.11b/g/n, 1 x Wi-Fi module, 2 x RF cable, 2 x antenna, RoHS |
| Adapter |
63040-010036-121-RS |
Adapter Power, FSP, FSP036-RBBN2, Vin: 90V~264VAC, 36W, Erp(NO LOAD 0.1W), Vout:12VDC, Φ2.5/Φ5.5/lock, CCL, RoHS |
| Power Cable |
32102-026500-100-RS |
Power cable 200mm, (A) DC jack to (B) 3-pin terminal block P=3.5 |
| Power Cord |
32702-000400-200-RS |
European power cord |
| DIN-Rail mounting kit |
DK-DRPC-R10 |
Rugged DIN-Rail mounting kit only for DRPC series |
|
|
|
| Packing List |
| |
|
| 1 x Utility CD |
1 x Screw kit |
1 x Mounting bracke |
| 1 x One Key Recovery CD |
1 x SATA cable & SATA power cable |
|
|
|
| Features-TANK-760-QGW |
| |
|
|
Buit-in QTS Gateway |
|
Intel® Core™ i5-4400E |
|
One CFast socket |
|
Support three independent video outputs |
|
Built-in two 2.5" SATA 6Gb/s HDD bays |
|
9 V~36 V DC input |
 |
|
|
| Specifications |
| |
|
| Model Name |
TANK-760-QGW |
| Chassis |
Color |
Black C + Silver |
| Dimensions (WxHxD) (mm) |
310 x 200 x 69.8 |
| System Fan |
Fanless |
| Chassis Construction |
Extruded aluminum alloy |
| Motherboard |
CPU |
Intel® Core™ i5-4400E 2.7 GHz |
| Chipset |
Intel® HM86 |
| System Memory |
2 x 204-pin DDR3 SO-DIMM,
one 4GB pre-installed (system max: 16 GB) |
| iRIS Module |
iRIS Solution |
1 x iRIS-2400 (optional) |
| Storage |
Hard Drive |
2 x 2.5'' SATA 6Gb/s HDD/SSD bay |
| CF Card/CFast |
1 x CFast |
| I/O Interfaces |
USB 3.0 |
4 |
| USB 2.0 |
2 |
| Ethernet |
2 x RJ-45
1 x PCIe GbE by Intel® I210
1 x PCIe GbE by Intel® I217LM |
| COM Port |
4 x RS-232 (DB-9, with isolation)
2 x RS-232/422/485 (DB-9, with isolation) |
| Digital I/O |
8-bit digital I/O, 4-bit input/4-bit output |
| CAN-bus |
2 x Phoenix terminal block with isolation |
| Display |
1 x VGA, 1 x HDMI, 1 x DisplayPort |
| Resolution |
VGA: Up to 1920 x 1200@60Hz
HDMI: Up to 2500 x 1600@60Hz
DisplayPort: Up to 2500 x 1600@60Hz |
| Audio |
1 x Line-out, 1 x Mic-in |
| Wireless |
1 x 802.11b/g/n (optional) |
| Other |
Reserved IO window for PCIe Mini card expasion |
| Expansions |
PCIe Mini |
1 x Full-size PCIe Mini slot 1/2*
1 x Full-size PCIe Mini slot 3 (supports mSATA, colay with SATA) |
| Power |
Power Input |
DC Jack: 9 V~36 V DC
Terminal Block: 9 V~36 V DC |
| Power Consumption |
19 V@3.2 A
(Intel® Core™ i5 i5-4400E with 4 GB memory) |
| Reliability |
Mounting |
Wall mount |
| Operating Temperature |
-20°C ~ 70°C with air flow (SSD) for i5-4400E & 2000E
-20°C ~ 50°C with air flow (SSD) for i7-4700EQ |
| Operating Shock |
Half-sine wave shock 5G, 11ms, 3 shocks per axis |
| Operating Vibration |
MIL-STD-810F 514.5C-2 (with SSD) |
| Weight (Net/Gross) |
4.2 kg/6.9 kg |
| Safety/EMC |
CE/FCC |
| OS |
Supported OS |
Microsoft® Windows® 8 Embedded,
Microsoft® Windows® Embedded Standard 7 E |
|
| * TANK-760-QGW-i5/8G-R10 has only two Full-size PCIe mini slots( slot 2 & slot 3) |
|
|

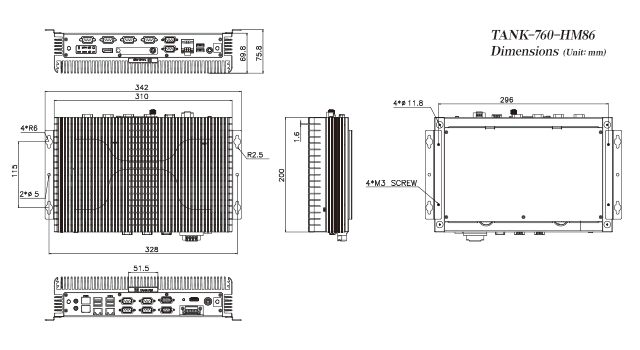

| Dimensions |
| |
|
 |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| TANK-760-QGW-i5/8G-R10 |
Fanless embedded system, Intel® Core™ i5 dual-core i5-4400E 2.7 GHz, TDP 37W, 2 x 4GB DDR3 pre-installed memory, VGA/HDMI/DisplayPort, iRIS-2400 optional, with QTS-Gateway, 9 V~36 V DC, RoHs |
|
|
|
| Options |
| |
|
| Part No. |
Description |
| iRIS-2400-R10 |
IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM socket interface |
| EMB-WIFI-KIT01-R11 |
1T1R Wi-Fi module kit for embedded system, IEEE802.11b/g/n, 1 x Wi-Fi module, 2 x RF cable , 2 x Antenna, RoHs |
| TANK-760-HM86-WES7E-R10 |
OS Image with Windows® Embedded Standard 7 E for TANK-760 HM86 Series, CD-ROM, RoHS |
|
|
|
| Packing List |
| |
|
| 1 x Utility CD |
1 x Power Adapter |
| 1 x Chassis Screw |
1 x One Key Recovery CD |
| 1 x Power Cord |
1 x Mounting Bracket |
|
|
|
| Features-PPC-F12/15/17B-BT-QGW |
| |
|
|
Buit-in QTS Gateway |
|
Intel® Celeron® J1900 quad-core SoC |
|
6H Anti-scratch Touch & Front Bezel IP65 Protection |
|
8mm Ultra Thin Bezel Design |
|
Dual full-size PCIe Mini card expansion* |
|
9V~36V DC wide range DC input |
 |
|
|
| Specifications |
| |
|
| Model Name |
PPC-F12B-BT-QGW |
PPC-F15B-BT-QGW |
PPC-F15B-BT-QGW |
| LCD |
LCD Display |
12.1” (4:3) |
15’’ (4:3) |
17’’ (5:4) |
| Max. Resolution |
1024 (W) x 768 (H) |
1024 (W) x 768 (H) |
1280 (W) x 1024 (H) |
| Brightness (cd/m²) |
600 |
450 |
350 |
| Contrast Ratio |
700 : 1 |
800 : 1 |
800 : 1 |
| LCD Color |
16.2M |
16.2M |
16.7M |
| Pixel Pitch (mm) |
0.24 x 0.24 |
0.297 x 0.297 |
0.26 x 0.26 |
| Viewing Angle (H-V) |
160° / 140° |
160° / 150 |
170° / 160° |
| Backlight MTBF (hrs) |
50000 |
70000 |
50000 |
| Motherboard |
CPU |
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz) |
| RAM |
2 x 204-pin DDR3L SO-DIMM slot (max. 8GB), pre-installed with 2GB |
| Touch |
Touchscreen & Controller |
5-wire resistive type single touch window (Penmount 9000), 3H
2-point projected capacitive touch window (EETI EXC7200), 6H |
| Input Interfaces |
I/O Ports & Switches |
2 x RJ-45 LAN port
2 x USB 3.0
2 x USB 2.0
1 x HDMI
2 x RS-232
1 x RS-232/422/485
1 x VGA
1 x 9 V~36 V DC jack (4-pin)
1 x 9 V~36 V DC terminal block
1 x Line-out (PPC-F15B & PPC-F17B & PPC-F19B only)
1 x Power switch |
| Expansion |
1 x Full-size PCIe Mini slot ( mSATA/PCIe/USB signal)*
1 x Full-size/half-size PCIe Mini slot (PCIe/USB signal) |
| Wireless LAN |
802.11 b/g/n (optional) |
| Drive Bay |
1 x 2.5” HDD/SSD drive bay |
| Remote Management Solution |
iRIS-2400, QTS-Gateway |
| Physical |
Construction Material |
Aluminum front panel and sheet metal rear cover |
| Mounting |
Panel mount, rack mount, VESA 100x100 |
| Enclosure Color |
Black C |
Dimensions (mm)
(W x L x D) |
262.2 x 322.2 x 47.2 |
303 x 378.5 x 46.2 |
341.4 x 408.4 x 51.8 |
| Weight (Net) |
3.2 kg |
4.1 kg |
5 kg |
| Cutout Dimensions (mm) |
244.8 x 304.8 |
285.6 x 361 |
323 x 390 |
| Environment |
Operating Temperature
(with air flow) |
-10°C~50°C (14°F~122°F) |
| Storage Temperature |
-20°C~60°C (-4°F~140°F) |
| Humidity |
10% to 95% (non-condensing) |
| IP Level |
IP 65 compliant front panel |
| Safety and EMC |
CE & FCC Class A certified |
| Power |
Power Adapter |
P/N: 63040-010060-110-RS
60W Power Adapter
Input: 90 - 264V AC, 50/60Hz
Output: 12V DC |
| Power Requirement |
9 V~36 V DC |
| Power Consumption |
40W |
41W |
42W |
|
| * PPC-F12B/15B/17B-QGW Series has only one Full-size/ Half-size PCIe Mini Slot (PCIe/USB Signal) |
|
|

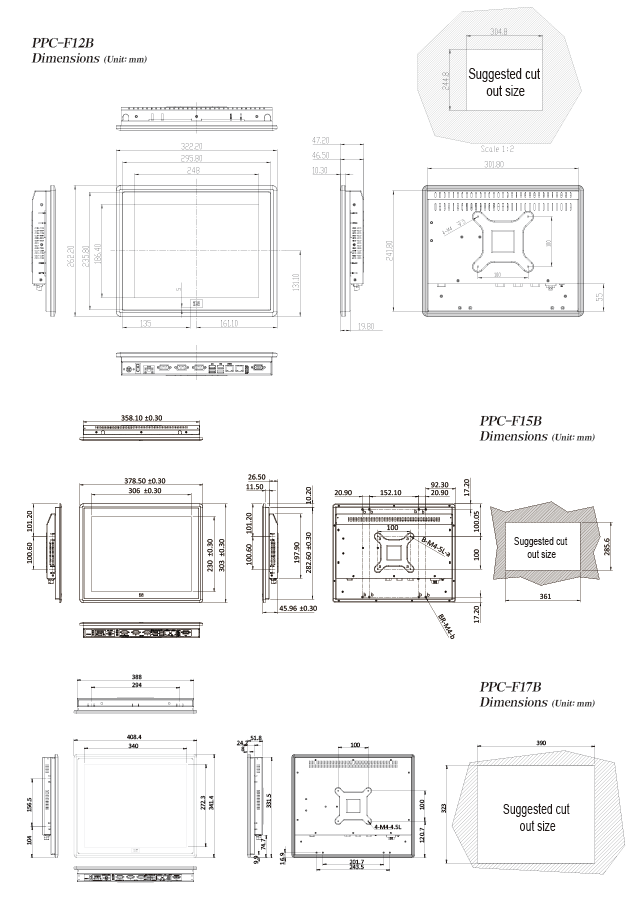

| Dimensions |
| |
|
 |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| PPC-F12B-BT-QGW-J1/4G/PC-R10 |
12” 600 cd/m² XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*2,black color, with QTS-Gateway, 9-36V DC input, projected
capacitive touch window, R10 |
| PPC-F15B-BT-QGW-J1/4G/PC-R10 |
15” 400 cd/m² XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*2, black color, with QTS-Gateway, 9-36V DC input, projected
capacitive touch window, R10 |
| PPC-F17B-BT-QGW-J1/4G/PC-R10 |
17” 350 cd/m² SXGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*2, black color, with QTS-Gateway, 9-36V DC input, projected
capacitive touch window, R10 |
|
|
|
| Options |
| |
|
| Part No. |
PPC-F12B |
PPC-F15B |
PPC-F17B |
| Arm |
ARM-31-RS
|
| Stand |
STAND-C12-R10
STAND-A12-RS |
STAND-C19-R10 STAND-A19-RS |
STAND-C19-R10
STAND-A19-RS |
| Wall Mount Kit |
WK-190MS-R10 |
| Panel Mount Kit |
FPK-09-R10 |
FPK-10-R10 |
FPK-10-R10 |
| Rack Mount Kit |
FRK12-R10 |
FRK15-R10 |
FRK17-R10 |
| Wi-Fi Kit |
PPC-WL-KIT02-R11 |
PPC-WL-KIT03-R11 |
PPC-WL-KIT03-R11 |
| iRIS (IEI Remote Intelligent System) Kit |
iRIS-2400-RS |
|
|
|
| Packing List |
| |
|
| Item |
Qty |
Description |
| PPC-FxxB-BTi Panel PC |
1 |
|
| User Manual & Driver CD |
1 |
|
| One Key Recovery CD |
1 |
|
| Touch Pen |
1 |
Resistive type models only
P/N: 43125-0002C0-00-RS |
| Power Cord |
1 |
Part numbers vary by regions |
| Screw Pack |
1 |
Including necessary screws |
| Power Adapter |
1 |
9V~36V DC
P/N: 63040-010060-110-RS |
|
|
|
|
|
QTS Gateway
