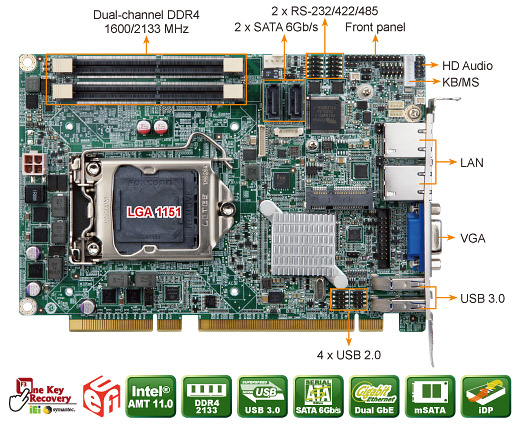

IEI Launches the New Half-size HPCIE-C236/Q170 Single Board Computer
 Features |
| |
|
 |
|
| Intel® 6th generation Core™ CPU + Intel® Q170 support 3 controllers of PCI Express Gen 3 |
| Number of PCIe Controller |
Configuration |
| 1 |
PCIe x16 |
| 2 |
PCIe x8, PCIe x8 |
| 3 |
PCIe x4, PCIe x4, PCIe x8 |
|
Sets PCIe x16 signal via BIOS |
|
|

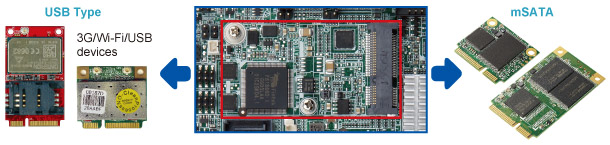

PCIe Mini slot provides mSATA and USB signal for full-size or half-size mSATA SSD and wireless LAN card.
 |
|
 |
PICMG 1.3 half-size CPU Card |
|
Supports dual independent display by VGA & internal DP pin header |
|
PCIe Mini support mSATA & USB 2.0 |
|
Intel® PCIe GbE with Intel® AMT 11.0 supported |
|
Supports RAID 0, 1 function via SATA 6Gb/s |
|
IEI jumper-less function |
|
 |
| Specifications |
| |
|
| Model |
HPCIE-C236 |
HPCIE-Q170 |
| CPU |
LGA 1151 Intel® 6th generation Intel® Xeon® E3-1200 v5, Core™ i3, Pentium® and Celeron® processor |
LGA 1151 Intel® 6th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
| PCH |
Intel® C236 |
Intel® Q170 |
| Memory |
Two 260-pin 1867/2133 MHz dual-channel DDR4 ECC and non-ECC unbuffered SO-DIMMs support up to 32 GB memory |
Two 260-pin 1867/2133 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 32 GB memory |
| BIOS |
UEFI BIOS |
| Graphic Engine |
Intel® HD Graphics Gen 9 supports DX11/12, OpenCL 2.x and OpenGL 4.3/4.4
Decode/Encode for HEVC, VP8, VP9, VDENC |
| Display Output |
1 x VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz) |
| Ethernet |
LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support
LAN2: Intel® I210 PCIe controller |
| External I/O |
1 x VGA
2 x RJ-45
2 x USB 3.0 |
| Internal I/O |
| 1 x 6-pin wafer for KB/MS |
1 x iDP |
| 2 x RS-232/422/485 |
4 x USB 2.0 (by pin header) |
| 2 x SATA 6Gb/s (SATA0, SATA1) (C236/Q17 supports RAID 0, 1) |
|
| Front Panel |
1 x Front panel (power LED, HDD LED, speaker, power button, reset button) |
| LAN LED |
2 x LAN LED (1x2 pin) |
| Audio |
Support 7.1-channel HD Audio by IEI AC-KIT-892HD kit |
| SMBus |
1 x SMBus (1x4 pin) |
| I²C |
1 x I²C (1x4 pin) |
| Expansion |
16-lane PCIe signal from CPU via golden finger (supports x16, or x8 + x8, or x4 + x4 + x8)
4-lane PCIe signal from Q170 via golden finger
1 x PCIe Mini supports mSATA & USB 2.0 |
| Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
| Digital I/O |
1 x 8-bit digital I/O (2x5 pin) |
| Fan Connector |
1 x 4-pin smart fan connector (CPU fan) |
| Power Supply |
5V/12V, AT/ATX support |
| Power Consumption |
5V@0.13A, 12V@7.89A, 3.3V@0.10A, 5VSB@0.20A (Intel® Xeon® E3-1275 v5 3.60 GHz with two 16 GB 2133 MHz DDR4 memory) |
5V@0.15A, 12V@8.39A, 3.3V@0.11A, 5VSB@0.21A (Intel® Core™ i7-6700K 4.0GHz with two 16 GB 2133 MHz DDR4 memory) |
| Operating Temperature |
-20°C ~ 60°C |
| Operating Humidity |
5% ~ 95%, non-condensing |
| Dimensions |
169 mm x 126 mm |
| Weight |
GW: 1000g / NW: 420g |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| HPCIE-C236-R10 |
Half-size PICMG 1.3 CPU card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU with Intel® C236, ECC & non-ECC DDR4 SO-DIMM, VGA, iDP, dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, mSATA, HD Audio, Intel® AMT and RoHS |
| HPCIE-Q170-R10 |
Half-size PICMG 1.3 CPU card supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170, DDR4 SO-DIMM, VGA, iDP, dual Intel® PCIe GbE, USB 3.0, mSATA, SATA 6Gb/s, PCIe Mini, HD Audio, Intel® AMT and RoHS |
| 19800-000075-RS |
KB/MS cable with bracket |
| 32102-000100-200-RS |
SATA power cable |
| 32200-015100-RS |
LPT Cable |
| AC-KIT-892HD-R10 |
7.1 channel HD Audio kit with Realtek ALC892 support dual audio streams |
| CF-1156A-RS-R11 |
High-performance LGA 1155/LGA 1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156C-RS |
LGA 1155/LGA 1156 cooler kit, 1U chassis compatible, 45W |
| CF-1156D-RS |
LGA 1155/LGA 1156 cooler kit, 1U chassis compatible, 65W |
| DP-DP-R10 |
DisplayPort to DisplayPort converter board (for iEi IDP connector) |
| DP-DVI-R10 |
DisplayPort to DVI-D converter board (for iEi IDP connector) |
| DP-HDMI-R10 |
DisplayPort to HDMI converter board (for iEi IDP connector) |
| DP-LVDS-R10 |
DisplayPort to LVDS converter board (for iEi IDP connector) |
| DP-VGA-R10 |
DisplayPort to VGA converter board (for iEi IDP connector) |
| SAIDE-KIT01-R10 |
SATA to IDE/CF Converter board |
|
|
| Packing List |
| |
|
| 1 x HPCIE-C236/HPCIE-Q170 single board computer |
1 x QIG (Quick Installation Guide) |
| 1 x SATA cable (P/N: 32000-062800-RS) |
1 x Utility CD |
|
|
|
