IEI Launches the ATX motherboard IMBA-Q170-i2
 Features |
|
|
|
|
|
|
|
 |
LGA1151 6th generation Intel® Core™ i7/i5/i3, Celeron® and Pentium® processor |
|
|
Dual-channel DDR4 2133 MHz |
|
|
Support triple display with HDMI, DVI and VGA |
|
|
Support USB 3.0, SATA 6Gb/s and PCI Express Gen3 |
|
|
Support IPMI 2.0 via iRIS-2400 module |
|
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
|
Flexible I/O support |
|
|
|
|
|

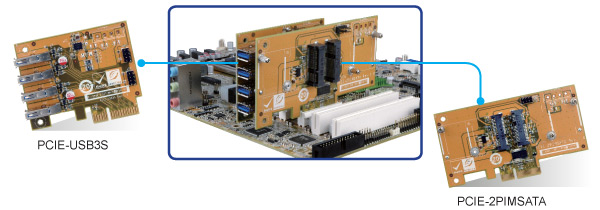

IEI USB 3.0 & mSATA/PCIe Mini expansion card
The expansion card can provide more choices to meet users demand |
|
|
 |
|
|
|
|
Specifications |
|
|
|
|
Model |
IMBA-Q170-i2 |
|
CPU |
LGA 1151 6th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor |
|
System Chipset |
Intel® Q170 |
|
Memory |
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB |
|
Graphics Engine |
Intel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX11/12, OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0 |
|
Display Output |
Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) |
|
Ethernet |
LAN1: Intel® I210 PCIe controller
LAN2: Intel® I219LM PCIe with Intel® AMT 11.0 support |
|
External I/O Interface |
2 x USB 2.0
4 x USB 3.0 |
|
Internal I/O Interface |
|
1 x KB/MS (1x6 pin) |
1 x USB 3.0 (2x10 pin, P=2.0) |
|
1 x LPT (2x13 pin, P=2.54) |
1 x USB 2.0 (Type A) |
|
1 x mSATA (colay SATA2) |
4 x USB 2.0 (2x4 pin, P=2.0) |
|
2 x RS-232/422/485 (2x5 pin, P=2.54) |
4 x RS-232 (2x5 pin, P=2.54) |
|
6 x SATA 6Gb/s (RAID 0/1/5/10 support) |
|
|
|
SMBus |
1 x SMBus (1x4 pin) |
|
I2C |
1 x I2C (1x4 pin) |
|
TPM |
1 x TPM connector (2x10 pin) |
|
Audio |
Realtek ALC662 HD codec supports 5.1-channel
3 x Audio jacks (line-out, line-in, mic-in) on rear IO
1 x Front audio (2x5 pin) |
|
Front Panel |
1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button) |
|
LAN LED |
2 x LAN LED (1x2 pin) |
|
iRIS Remote Management Module |
1 x iRIS-2400 slot |
|
Expansion |
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x 8 slot (Gen3)
3 x PCIe x 4 slot (Gen3) |
|
Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
|
Digital I/O |
8-bit digital I/O (2x5 pin) |
|
Fan Connector |
1 x CPU smart fan (1x4 pin)
1 x System smart fan (1x4 pin) |
|
Chassis Open |
1 x Chassis intrusion (1x2 pin) |
|
Power Supply |
ATX/AT power supply |
|
Power Consumption |
3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSB@3.4A
(Intel® Core™ i7 6700K 4.0GHz CPU with 32 GB (four 4 GB) 2133 MHz DDR4 memory) |
|
Operating Temperature |
-20°C ~ 60°C |
|
Storage Temperature |
-30°C ~ 70°C |
|
Operating Humidity |
5% ~ 95%, non-condensing |
|
Dimensions |
244mm x 305mm |
|
Weight |
GW:1200g, NW: 700g |
|
|
|
|
Ordering Information |
|
|
|
|
Part No. |
Description |
|
IMBA-Q170-i2-R10 |
ATX motherboard supports 14nm LGA1151 Intel® CPU Intel® C170, DDR4, triple independent display VGA/ DVI-D/ HDMI 2.0, dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI 2.0 and RoHS |
|
iRIS-2400-R10 |
IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM socket interface |
|
PCIES-2PIMSATA-R10 |
Peripheral card for flexible I/O, 2 x PCIe Mini, 2 x mSATA expansion |
|
PCIES-USB3-R10 |
Peripheral card for flexible I/O, USB 3.0 expansion |
|
19800-000049-RS |
LPT flat cable, 280mm |
|
19800-000075-RS |
PS/2 KB/MS Y-cable with bracket, 220mm |
|
19800-003100-300-RS |
Dual-port USB cable with bracket |
|
19800-010500-200-RS |
USB 3.0 cable 457mm with bracket |
|
32102-000100-200-RS |
SATA power cable, MOLEX 5264-4P to SATA15P |
|
32205-000702-100-RS |
Serial port cable, P=2.54, 230mm |
|
CF1156A-RS-R11 |
High-performance LGA1155/1156 cooler kit, 1U chassis compatible 73W |
|
CF-1156C-RS |
LGA1155/1156 kit, 1U chassis compatible, 45W |
|
CF-1156D-RS |
LGA1155/1156 kit, 1U chassis compatible, 65W |
|
CF-1156E-R11 |
High-performance LGA1155/1156 cooler kit, 95W |
|
DP-DP-R10 |
DisplayPort to DisplayPort converter board (for IEI iDP connector) |
|
DP-DVI-R10 |
DisplayPort to DVI-D converter board (for IEI iDP connector) |
|
DP-HDMI-R10 |
DisplayPort to HDMI converter board (for IEI iDP connector) |
|
DP-LVDS-R10 |
DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) |
|
DP-VGA-R10 |
DisplayPort to VGA converter board (for IEI iDP connector) |
|
TPM-IN01-R11 |
20-pin Infineon TPM module, software management tool, firmware v3.17 |
|
|
|
|
Packing List |
|
|
|
|
1 x IMBA-Q170-i2-R10 |
1 x One Key Recovery CD |
|
1 x I/O shielding |
1 x QIG |
|
2 x SATA cable |
1 x Utility CD |
|
|
|
|
