IEI Launches the new NANO-SE-i1 Embedded Board


Features Lower thermal design power with high performance
Specifications Dimensions Ordering Information Packing List



EPIC SBC supports AMD® Embedded G-Series SoC
Dual independent display support
1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8GB
HD Audio supported by S/PDIF
Support IPMI 2.0 with iRIS-1010 module
COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

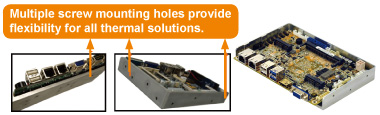

   Lower thermal design power with high performance

AMD® Embedded G-Series SoC
Upgraded AMD® Embedded G-Series SoC provides lower TDP and higher overall performance-per-watt
Integrated AMD's next generation graphics core architecture for discrete-class graphic processing
Available in dual or quad-core processor
Integrated security solution to protect system at the hardware level
  Lower thermal design power with high performance


Model   NANO-SE-i1
SoC GX-424CC on-board Soc (2.4GHz, quad-core, 2MB cache, TDP=25W)
GX-412HC on-board Soc (1.2GHz, quad-core, 2MB cache, TDP=7W)
GX-212JC on-board Soc (1.2GHz, dual-core,1MB cache, TDP=6W)
GX-411GA on-board Soc (1.0GHz, quad-core, 2MB cache, TDP=15W)
GX-209HA on-board Soc (1.0GHz, dual-core,1MB cache, TDP=9W)
Memory One 204-pin 1600/1333MHz single-channel DDR3 & DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8GB
Graphics Engine Support DX11.1, OpenGL 4.1 and OpenCL1.2
UVD4.2 decode for H.264, MPEG2/4, VC1, MVC
VCE 2.0 encode for H.264, VCE
Display Output Dual independent display
VGA (up to 2048x1536@60Hz)
HDMI (up to 3840x2160@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Ethernet LAN1: Intel® I210-AT PCIe controller with NCSI support
LAN2: Intel® I211-AT PCIe controller
Super IO Fintek F81866
External I/O Interface 2 x USB 2.0
2 x USB 3.0
Internal I/O Interface
1 x KB/MS (1x6 pin) 4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0) 5 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5V SATA power connector (no RAID)
iRIS Remote Management Module 1 x iRIS-1010 slot
TPM 1 x TPM (2x10 pin)
SMBus 1 x SMBus (1x4 pin)
I2C 1 x I2C (1x4 pin)
Audio Realtek ALC892 HD Audio codec
1 x S/PIDF (1x4 pin)
1 x Analog audio (2x5 pin)
Front Panel 1 x Power LED & HDD LED (1x6 pin)
1 x Power button (1x2 pin)
1 x Reset button (1x2 pin)
LAN LED 2 x LAN LED (1x2 pin)
Expansion 1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)
Watchdog Timer Software programmable, support 1~255 sec. system reset
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Fan Connector 1 x System smart fan (1x4 pin)
Power Supply 12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Power Consumption +12V@ 1.02A (AMD GX-415GA 1.5GHz CPU with 1600MHz 8GB DDR3 memory)
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Operating Humidity 5% ~ 95%, non-condensing
Dimensions 115mm x 165mm
Weight GW:850g / NW:350g

NANO-SE-i1 Dimensions

   Ordering Information
Part No. Description
NANO-SE-i1-4241-R10 EPIC SBC supports AMD® 28nm quad core GX-424CC 2.4GHz (25W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio, iRIS-1010 and RoHS
iRIS-1010-R10 IPMI 2.0 adapter card with AST1010 BMC chip (w/o KVM over IP function) for PCIe Mini socket interface
32000-023800-RS PS/2 KB/MS cable, 135mm, P=2.0
32000-070301-RS Dual-port USB cable, 210mm, P=2.0
32205-003800-300-RS RS-422/485 cable, 200mm, P=2.0
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17
Note: Models with other CPUs not listed in the table are requested by MOQ - 100 pcs/lot.

   Packing List

1 x NANO-SE-i1 single board computer with enclosure heatsink
1 x Audio cable
1 x Power cable 1 x One Key Recovery CD
2 x RS-232 cable 1 x QIG (Quick Installation Guide)
2 x SATA with power cable kit 1 x Utility CD
