Specifications Dimensions Ordering Information Options Packing List
Full-flat Surface Touchscreen Projected Capacitive Touch sensor
Multimedia Hardware Device Ready Picture Frame In-Wall Mount
Versatile I/O Ports More...
  Full-flat Surface Touchscreen
The AFL-F08A flat-bezel design covers the entire front frame (bezel) of standard LCD to make the screen and bezel appear to blend together. The seamless flat-bezel touchscreen system offers a stylish and easy to clean surface.
Full-flat Surface Touchscreen OFFICE LIVING ROOM YACHTING
Full-flat Surface Touchscreen KITCHEN AUTOMATION MUSEUM
  Projected Capacitive Touch sensor (For Option)
Windows 7 with Multi-touch Capable
The AFL-F08A comes with the true multi-touch applications in support of the Microsoft Windows 7 operating system. Windows 7 features improved touch and gesture support . With Windows 7, handwriting recognition is faster, more accurate, and supports more languages
Windows 7 with Multi-touch Capable Windows 7 with Multi-touch Capable Projected Capacitive Touch sensor
Intuitive Multi-Touch Control
E-Book Navigation Stock Gaming Healthcare

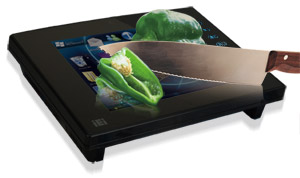

7H Anti-scratch Surface

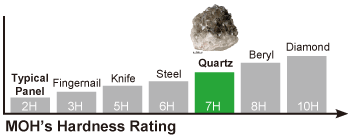

Projected Capacitive touch technology utilizes a durable glass front surface. 7H hardness is stronger than the conventional touch panel and therefore is able to protect the screen from damage.
7H Anti-scratch Surface
H Anti-scratch Surface
AR/AG Optical Coating AR/AG Optical Coating AR/AG Optical Coating
Special AR coating (anti-reflection) and AG coating (anti-glare) on the touch panel are engineered to reduce reflection and increase transmission of light to produce a better image.
  Multimedia Hardware Device Ready
Integrated webcam on the Panel PC, including a native 300K pixel; low-light function, and 30fps at VGA, is best suited for small-to-medium sized meetings and conferences held in facilities like local government councils, hotel conference rooms, training and educational venues and company boardrooms without external device installation.
Multimedia Hardware Device Ready Multimedia Hardware Device Ready
Multimedia Hardware Device Ready Multimedia Hardware Device Ready
Multimedia Hardware Device Ready
  Picture Frame In-Wall Mount
This optional kit includes a decorative front plate and wall mount enclosure to securely house the the AFL-F08A panel PC. The enclosure includes knockouts for power and l/O interface cables.
Picture Frame In-Wall Mount Picture Frame In-Wall Mount
Picture Frame In-Wall Mount Optional Decorative Kit Optional Decorative Kit
  Versatile I/O Ports
Versatile I/O Ports
  Dimensions (Unit: mm)
AFL-F08A Dimensions
Decoration Kit Dimensions
In-Wall Cage Dimensions
Model AFL-F08A-N270  Fanless
LCD Size 8"
Max Resolution 800 x 600
Brightness (cd/m2) 250
Contrast Ratio 500:1
LCD Color 262K
Pixel Pitch (mm) 0.2025(H) x 0.2025(V)
Viewing Angle (H-V) 140° / 130°
Backlight MTBF 30000 hrs (LED)
SBC Model AFLMB-945GSE-N270-R10
CPU Intel® Atom™ Processor N270 (512K Cache, 1.60 GHz, 533 MHz FSB)
Chipset Intel® 945GSE + ICH7M
RAM Supports one 400MHz or 533MHz DDR2 SO-DIMM (2GB Max.)
I/O Ports 1 x RS-232 COM Port
1 x RS-232/422/485 COM port
2 x RJ-45 for Giga LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port (line-out)
1 x 12V DC Power Jack
1 x External SATA
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 1.5W + 1.5W (internal speaker)
Expansion 1 x Wireless Lan 802.11 b/g Module (internal Mini PCIe interface)
1 x Bluetooth V2.0 (internal USB interface)
300k pixel webcam
Hot Keys LCD On/Off, Brightness Up/Down, Volume High/Low by Cap-Sensor
Mounting In-Wall, Panel, Wall, Stand and Arm VESA 75mm x 75mm
Color Black
Dimensions (WxHxD) (mm) 234 x 177 x 43
Operation Temperature (°C) -10°C ~ 50°C
Storage Temperature (°C) -20°C ~ 60°C
N/G Weight 1.8Kg
IP Level IP64 Front Panel
Safety & EMC CE / FCC / CB / CCC
Touch Screen Resistive Type 5-Wire (Touch controller IC is on board) or
Projective Capacitive type touch screen
Power Adapter 63000-FSP036RAB608-RS
48W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement 12VDC
Power Consumption 32W
Note: WiFi 802.11 draft N is upgradable.
  Ordering Information
  Part Number Description
Resistive Touch Panel AFL-F08A-N270/R/1G-R10 8.0" 250cd/m2 SVGA Fanless panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11 b/g WiFi, touch screen, Bluetooth, 300K camera, microphone, RoHS
Projected Capacitive Touch Panel AFL-F08A-N270/PC/1G-R10 8.0" 250cd/m2 SVGA Fanless panel PC with Intel® Atom™ N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11 b/g WiFi, Projective capacitive touch screen, Bluetooth, 300K camera, microphone, RoHS
Item Model
Panel mounting kit AFLPK-12
Wall mounting kit AFLWK-12
Rack mounting kit AFLRK-08
Stand STAND-A08 / STAND-100-RS
9~30VDC to 12VDC converter module IDD-930160-KIT
OS: Win CE 6.0
(128 MB CF card)
Item Model
(1 GB CF card)
(2 GB CF card)
Hybrid Card Reader AFLP-08AMSI-U
Magnetic Stripe Reader AFLP-08AMSR-U
DC 12V Input UPS AUPS-A10-R10 (7.4V 3800mAH)
DC 9~36V Input UPS AUPS-A20-R10 (7.4V 3800mAH)
