1. Socket P for Intel® 45nm mobile Core™2 Duo CPU with a 1066MHz FSB. Up to 800MHz DDR2 memory support
2. Intel® GMA X4500 for DX10, Shader Model 4.0, high performance MPEG-2 decoding, WMV9 (VC-1) and H.264 (AVC) support
3. VGA, LVDS and HDMI display output interfaces supported
4. IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
|
|
|
 |
|
|
|
|
Mobile Intel® GM45 Performance |
|
|
|
|
|

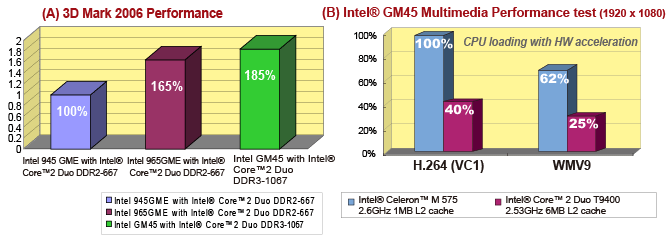

Intel® GM45 Performance Comparison |
|
|
|
|
|
|
|
|
|
Intel® GM45 Performance Comparison |
New Multimedia Interface

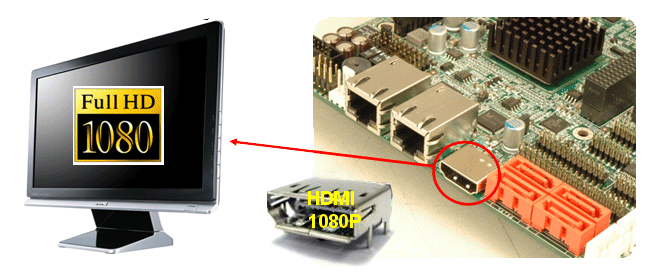

NOVA-GM45A equipped with High-Definition Multimedia Interface (HDMI) which is a compact audio/video interface for transmitting uncompressed digital data delivering high-definition video support 1080p resolution which equates to 1,920x1,080 pixels, it also supports industry standard EIA-861B video modes including 480p, 720p, 1080i, and 1080p
NOVA-GM45A support High Quality Media and improved 3D Capability
Multimedia features:
• HW support for H.264, VC-1and MPEG2
• VMR9 Support
• ProcAmp
• Microsoft DirectX*VA 2
• Unified Pixel/Vertex Shader
• DX10*/OpenGL*2.0
• 32 bit Floating Point operations
|
 |
|
|
|
|
|
|
|
|
CPU / MCU |
Socket P Intel® 45nm Core™ 2 Quad/ Duo processor with 1066/800/667MHz FSB |
|
FSB |
667/800/1066MHz |
|
System Chipset |
Intel® GM45+ICH9M |
|
Memory |
Two 200-pin 800/667 MHz DDR2 SDRAM SO-DIMM supported (system max. 4GB) |
|
BIOS |
AMI BIOS Label |
|
Graphic |
Intel® GMA4500MHD |
|
Display Output |
VGA integrated in the Intel®GM45 support up to QXGA
1 x 18/24-bit dual-channel LVDS
1 x HDMI output resolution supports up to 1080p resolution |
|
LAN |
Dual Realtek RTL8111CP PCIe GbE controllers |
|
I/O interface |
4 x RS232
2 x RS232/422/485
8 x USB 2.0
1 x LPT
4 x SATA II
1 x KB/MS (by 6-pin header 2.00mm pitch) |
|
Digital I/O |
16-bit digital I/O, 8-bit input / 8-bit output |
|
Extension |
1 x PCI slot
1 x PC/104+ (ISA+PCI bus)
1 x PCIe mini card slot ( USB+PCIe signal) |
|
FAN connector |
1 x 4-pin CPU Fan
1 x 3-pin System Fan |
|
Super I/O |
ITE IT8718F |
|
Audio |
Realtek ALC888 HD Codec |
|
Watchdog Timer |
Software Programmable support 1~255 sec. System reset |
|
Power |
+12V only, AT/ATX power support |
|
Power Consumption |
12V@5.76A ((2.26GHz Intel® Core2 Quad Q9100 with a 1066MHz FSB and two 2GB 800MHz DDR2 SO-DIMM running 3D Mark2001SE) |
|
Temperature |
Operation: 0°C ~ 60°C (32 ~ 140°F) |
|
Humidity |
Operation: 5% ~ 95%, non-condensing |
|

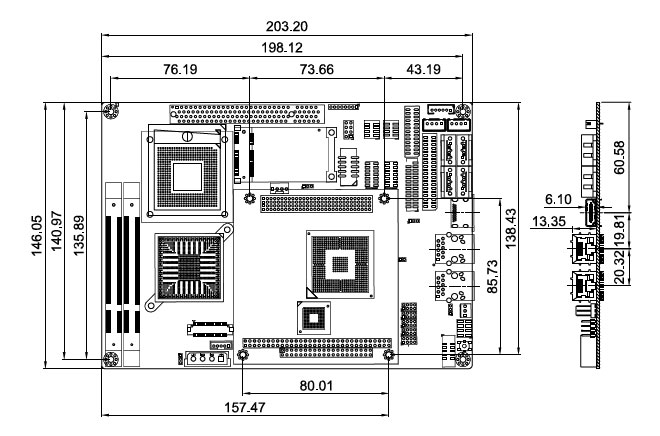

Dimensions |
203 mm x 146 mm |
|
Weight |
GW: 850g / NW:290g |
|
|
|
|
|
|
|
 |
|
|
|
|
|
1 x NOVA-GM45A single board computer |
|
2 x SATA 5V power output cable kit (P/N: 32801-000100-100-RS) |
|
1 x Quad ports RS-232 adapter cable (P/N: 32100-147900-RS) |
|
1 x Audio Cable (P/N: 32000-072100-RS) |
|
1 x KB/MS Y cable (P/N: 32000-023800-RS) |
1 x VGA cable (P/N: 32000-033800-RS) |
|
1 x USB cable (P/N: 32000-070301-RS) |
1 x Mini jumper pack |
|
1 x Utility CD |
1 x QIG |
|
|
|
|
|
|
Part No. |
Descripiton |
|
NOVA-GM45A-R10 |
5.25" SBC with Socket P for Intel 45nm mobile Core 2 Quad/ Duo Penryn CPU, VGA/HDMI/LVDS, Dual PCIe GbE, USB2.0, PCIe mini, SATAII and Audio |
|
CB-USB02A-RS |
Dual USB cable with bracket |
32102-000100-100-RS
32102-000100-200-RS |
SATA Power cable |
|
32200-026500-RS |
RS-232/422/485 cable |
|
CF-479B-RS |
CPU cooler (50mm x 50mm x 26mm, 50W) |
|
CF-479F-RS |
CPU cooler (50mm x 50mm, 45W) |
|
SAIDE-KIT01-R10 |
SATA to IDE/CF converter board |
|
WMPCIE-V01-R10 |
PCIe mini card wireless LAN module |
|
WMUSB-V01-R10 |
USB mini card wireless LAN module |
|
32200-015100-RS |
LPT cable |
|
|
|
|
 |
|
