IEI Launches the new KINO-DBT industrial motherboard
 Features |
|
|
|
|
|
 |
Mini-ITX SBC with 22nm Intel® Atom™ on-board SoC |
|
|
1.35V DDR3L 1066/1333MHz SDRAM supporting up to 8GB of memory |
|
|
Dual independent display support |
|
|
COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and HD Audio support |
|
|
Support Intel® VT-x techology |
|
 |
|
iDP (IEI Internal DisplayPort) |
|
|
|
|
iDP (IEI Internal DisplayPort) |
Easy Installation on the Chassis |
 |
|
Model |
Output |
External Power |
|
DP-VGA-R10 |
VGA |
No |
|
DP-HDMI-R10 |
HDMI |
No |
|
DP-DVI-R10 |
DVI |
No |
|
DP-LVDS-R10 |
LVDS |
Yes |
|
DP-DP-R10 |
DP |
No |
|
|

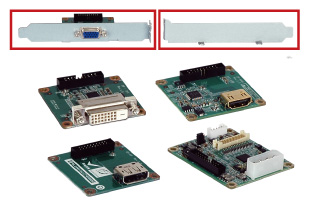

iDP converter cards with brackets |
 |
|
|
|
|
|
Specifications |
|
|
|
|
Model |
KINO-DBT |
|
SoC |
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.5W) |
|
BIOS |
AMI UEFI BIOS |
|
Memory |
2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB) |
|
Graphics Engine |
Intel® HD Graphics Gen 7 Engines with 4 execution units, supporting DX11.1, OpenGL 4.2
and OpenCL1.2 |
|
Display Output |
Dual independent display
VGA (up to 2560x1600 @ 60 Hz)
DVI-D (up to 1920x1080 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600 @60 Hz) |
|
Ethernet |
Dual Realtek RTL8111E PCIe GbE controller |
|
External I/O Interface |
2 x RS-232
2 x USB 2.0
2 x USB 3.0 |
|
Internal I/O Interface |
|
1 x KB/MS (1x6 pin) |
1 x RS-422/485 (1x4 pin, P=2.0) |
|
4 x USB 2.0 (2x4 pin, P=2.0) |
3 x RS-232 (2x5 pin, P=2.54) |
|
2 x SATA 3Gb/s with 5V, 12V SATA power connector |
|
|
SMBus |
1 x SMBus (1x4 pin) |
|
TPM |
1 x TPM (2x10 pin) |
|
Audio |
Realtek ALC662 HD codec supports 5.1 channel |
|
Front Panel |
1 x Front panel (2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button) |
|
LAN LED |
2 x LAN LED (1x2 pin) |
|
Expansion |
|
1 x Full-size PCIe Mini card slot |
1 x microSD slot (E38XX SKU only) |
|
1 x PCIe x4 slot (with PCIe x1 signal) |
1 x mSATA share with SATA port 2 |
|
|
Digital I/O |
8-bit digital I/O (2x5 pin) |
|
Fan Connector |
1 x CPU smart fan (1x4 pin)
1 x System smart fan (1x4 pin) |
|
Power Supply |
12V DC input
1 x External 4-pin DIN DC jack
1 x Internal 4-pin (2x2) power connector |
|
Power Consumption |
12V@1.64A (Intel® Celeron® J1900 CPU with 4GB 1333MHz DDR3L memory) |
|
Watchdog Timer |
Software programmable support 1~255 sec. system reset |
|
Operating Temperature |
-20°C ~ 70°C |
|
Storage Temperature |
-30°C ~ 85°C |
|
Operating Humidity |
5% ~ 95%, non-condensing |
|
Dimensions |
170mm x 170mm |
|
Weight |
GW:900g/NW: 400g |
|
|
|
|
Ordering Information |
|
|
|
|
Part No. |
Description |
|
KINO-DBT-J19001-R10 |
Mini-ITX SBC supports Intel® Celeron® quad-core processor J1900 (10W), VGA/DVI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD Audio and RoHS |
|
KINO-DBT-N29301-R10 |
Mini-ITX SBC supports Intel® Celeron® quad-core processor N2930 (7.5W), VGA/DVI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD Audio and RoHS |
|
KINO-DBT-N28071-R10 |
Mini-ITX SBC supports Intel® Celeron® dual-core processor N2807 (4.5W), VGA/DVI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD Audio and RoHS |
|
KINO-DBT-E38XX1-R10** |
Mini-ITX SBC supports Intel® Atom™ processor E38XX, VGA/DVI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD Audio and RoHS |
|
32205-003800-300-RS |
RS-422/485 cable |
|
32205-002700-100-RS |
RS-232 cable, 2, 200mm, D-SUB 9, 2*5P P=2.0 |
|
32006-000300-100-RS |
PS/2 KB/MS Y-cable without bracket |
|
DP-LVDS-R10 |
DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) |
|
DP-HDMI-R10 |
DisplayPort to HDMI converter board (for IEI iDP connector) |
|
DP-DVI-R10 |
DisplayPort to DVI-D converter board (for IEI iDP connector) |
|
DP-VGA-R10 |
DisplayPort to VGA converter board (for IEI iDP connector) |
|
DP-DP-R10 |
DisplayPort to DisplayPort converter board (for IEI iDP connector) |
|
TPM-IN01-R11 |
20-pin Infineon TPM module, software management tool, firmware V3.17 |
|
**: Those items are by order production, MOQ: 100 |
|
|
|
|
Packing List |
|
|
|
|
1 x KINO-DBT single board computer |
|
1 x SATA cable with power output cable (P/N: 32801-000100-100-RS) |
1 x QIG |
|
1 x IO shielding (P/N: 45014-0056C0-00-RS) |
1 x Utility CD |
|
|
|
|
