TANK-GM45A
|
The TANK-GM45A embedded system is a fan less system for wide range temperature environments. It is powered by the Intel® 45nm Core™2 Duo processor, uses the Intel® GM45 chipset and has 2.0 GB of DDR2 memory. |
|
|
|
• |
Socket P Intel® 45nm Mobile Core™2 Duo Processor Supported |
|
• |
Extended Temperature Fanless design support -20°C~70°C |
|
• |
High Performance MPEG-2 Decoding, WMV9(VC-1) and H.264(AVC) supported |
|
• |
Built-in DDR2 SO-DIMM 2G memory |
|
• |
Support 2xCOM, 4xUSB2.0, 2x Intel GbE LAN |
|
• |
IEI One Key Recovery solution allows you to creat rapid OS backup and recovery |
|
|
|
 |
|
Extend-Temperature System |
|
|
|
|
|
TANK-GM45A supports extended Temperature from -20°C up to 70°C with One Industrial 2.5" SATA Flash Disk. IEI IFD 2.5" SSD supporting SATA SLC solutions features anti-vibration, low power consumption, high performance and perfect reliability. SSD not only performs much better IOPS than HDD but also can be operated anytime because of no mobile components like the motor, bearing or and rotating head. In addition, SSD can absolutely fulfill specialized application performing in any harsh environment. |
|
|
 |
 |
 |
|
|
iFD 2.5" SATA 2510WT
Wide Temp. Grade |
iFD 2.5" SATA 2500RW
Wide Temp. Grade |
iFD 2.5" SATA 2000JW
Wide Temp. Grade |
|
SATA SSD |
iFD-2510WT |
iFD-2500RW |
iFD-2000JW |
|
Capacities |
8GB~128GB |
1GB~32GB |
8GB~128GB |
|
Data Transfer Rate (max.) |
Read-37MB/Sec;
Write-37MB/Sec |
Read-60MB/Sec;
Write-40MB/Sec |
Read-160MB/Sec;
Write-140MB/Sec |
|
Operation Temp. |
-40°C ~ 85°C |
-40°C ~ 85°C |
-40°ºC ~ 85°C |
|
Storage Temp. |
-55ºC ~ 95ºC |
|
Vibration |
20G (7~2000Hz) |
|
Shock |
1500G/0.5ms |
|
DC Input Voltage |
5V single power supply operation |
|
Enclosure Material |
Metal Mechanical Cover |
|
Dimension |
69.63mm x 99.88mm x 9.3mm (WxHxL) |
|
|
|
|
|
|
|
High Performance Intel® GbE |
|
|
|
|
 High Performance Intel® GbE
• Intel® 82574L
The 82574 provides one PCIe lane operating at 2.5 GHz with sufficient bandwidth to support 1000 Mb/s transfer rate. Supports 9018-byte jumbo packets,40 KB of on-chip buffering mitigates instantaneous receive bandwidth demands and eliminates transmit under–runs by buffering the entire outgoing packet prior to transmission.
• Intel® WG82567LM
The 82567 is a single port GbE physical layer Transceiver (PHY) that connects to its Media Access Controller (MAC) through a dedicated interconnect and supports operation at data rate of 10/100/1000 Mb/s. Supports up to 9 kB jumbo frames (full duplex) |
|
|
|
|
|
|
Digital Security Surveillance |
|
|
|
|
 As the demands on Digital Security Surveillance (DSS) systems become more complex, IEI embedded Systems give equipment manufacturers and system integrators the opportunity to deliver increasingly sophisticated video surveillance solutions.
TANK-GM45A is the Digital Security Surveillance system provides higher video resolution, high Performance and lower power consumption solution. |
|
Feature |
Benefit |
Low-power,
fanless platform |
|
» |
Intel® Core™ Duo processor enable powerful dual-core computing at very low power |
|
» |
Reduced design requirements (no fan required) |
|
» |
Reduce environment (fan) noise, lower power and cooling requirements |
|
|
Dual-core processing |
|
» |
Increased performance for multi-threaded code |
|
» |
High processing throughput for Streaming SIMD 3 (SSE3) instructionsaccelerates video processing |
|
» |
1066 MHz system bus for high system throughput |
|
» |
Large 3 MB L2 cache keeps more data closer to the cores for faster execution |
|
|
Dual on-board Gigabit Ethernet |
|
» |
Fast connectivity for data network |
|
» |
High-speed IP camera connectivity option |
|
|
|
|
|
|
|
|
|
 |

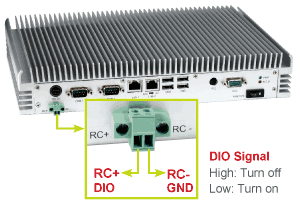

The GPIO terminal block connects to a remote control device. Users can control the system power on/off by inputting high or low voltage into the terminal block.
Turn off the system: more than 1 V input
Turn on the system: less than 0.5 V input |
|
|
|
|
|
|
|
 |

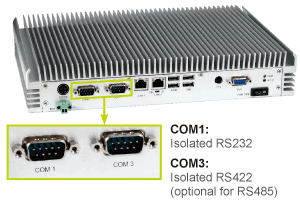

IEI TANK-GM45A provides
1. On board +15KV ESD protection
2. Isolated 1200VDC protection
An integrated circuit (IC) connected to external ports is susceptible to damaging electrostatic discharge (ESD) pulses form the operating environment and peripherals.
Additional protection can violate stringent signaling requirements, leaving design engineers with the need to balance performance and reliability. |
|
|
|
|
|
|
|
|
|
 Optional 12VDC Adapter |
|
Power Adapter |
63000-FSP060DBAB1554-RS |
63000-FSP096AHB-RS |
|
Output Current |
12V@5A, 60W |
12V@8A, 96W |
|
Output Voltage |
11.4V ~ 12.6V |
11.4V ~ 12.6V |
|
Input Voltage |
115V ~ 230V, 90V(Min) ~ 264V(Max) |
110V ~ 240V, 90V(Min) ~ 264V(Max) |
|
Operating Temp. |
0 to 40°C |
0 to 40°C |
|
Storage Temp. |
-20 to 65°C |
-20 to 80°C |
|
Energy Efficiency |
87% minimum |
80% minimum |
|
MTBF (25°C) |
> 60000 hours |
>100000 hours |
|
Dimension |
110mm x 62mm x 31.5mm |
167mm x 65mm x 37mm |
|
|
|
|
|
|
|
|
Processor |
Socket P Intel® Core™ Duo 2.4GHz, 3MB L2 Cache, Processor P8600
Socket P Intel® Celeron® M 2.0GHz, 1MB L2 Cache, Processor 575 |
|
Chipset |
Intel® GM45 Chipset + ICH9M |
|
System Memory |
Built in one 2GB SO-DIMM memory |
|
Ethernet |
One Intel® 82574L GbE Controller
One Intel® WG82567LM GbE PHY |
|
Display |
Intel® Gen 5.0 integrated Graphic engine
High Performance MPEG-2 Decoding, WMV9(VC-1) and H.264(AVC) supported
CRT Interface integrated in Intel® GM45
Resolution: Analog monitor support XQGA up to 2048x1536MHz |
|
Serial Port |
One RS-232
One RS-422 (Optional RS-485 supoprt by internal jumper)
Isolated protection: up to 1200VDC |
|
Watch Dog Timer |
Software programmable support 1~255 sec. system reset support by ITE 8718 |
|
PS/2 |
One PS/2 KB/MS |
|
USB |
Four x USB2.0 |
|
LED |
One dual stack LED, green for power, red for HDD |
|
Storage |
One 2.5" SATA HDD capacity |
|
Power Input |
12V DC in with 4pin mini-DIN
One AT/ATX switch
One 2pin Terminal block connector for remote control system ON/OFF |
|
Power Consumption |
45W |
|
Chassis Construction |
Aluminum Alloy |
|
Operating Temperature |
-20°C ~ 70°C (SATA SSD) with air flow*
0°C ~ 50°C (SATA HDD) with air flow* |
|
Operating Shock |
Half-Sine Shock Test 5G/11ms, 3 shocks per axis |
|
Operating Vibration |
MIL-STD-810F 514.5 C-1 |
|
Weight (Net/Gross) |
3.5Kg/4.2Kg |
|
Dimension (WxHxD) |
310 x 200 x 55mm |
|
* Ambient air speed pre IEC-68-2-2 standard |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1x Power Cable (Terminal Block DC in Cable) |
1 x Screw set |
|
1 x QIG |
1 x CD |
|
|
|
|
|
|
|
|
Model |
Description |
|
TANK-GM45A-R10/P8600/2GB |
Extend temperture fanless embedded system with Intel® Core™2 Duo P8600 2.4 GHz 3MB L2 cache and GM45 chipset, with 2GB DDR2 memory, 12VDC, -20°C~70°C, RoHS |
|
TANK-GM45A-R10/CM575/2GB |
Extend temperture fanless embedded system with Intel® Celeron® M 575 2.0 GHz 1MB L2 cache and GM45 chipset, with 2GB DDR2 memory, 12VDC, -20°C~70°C, RoHS |
|
63000-FSP060DBAB1554-RS |
POWER ADAPTER; FSP060-DBAB1554; VAC:90V~264V; 12V/ 60W with ERP and PSE certificates |
|
63000-FSP096AHB-RS |
POWER ADAPTER; FSP096-AHB; VAC:90V~264V; 12V/ 96W with ERP and PSE certificates |
|
32000-000002-RS |
17.5cm European Standard Power Cord |
|
32000-000025-RS |
18.3cm American Standard Power Cord |
|
32000-133200-RS |
PS2 KB/MS Y Cable |
|
IFD-2510WT-XXXXX |
iFD 2.5" SATA 3.0 2510WT SLC SSD Wide Temp. Grade -40°C~85°C (8GB~128GB) |
|
IFD-2500RW-XXXXX |
iFD 2.5" SATA 3.0 2500RW SLC SSD Wide Temp. Grade -40°C~85°C (1GB~32GB) |
|
IFD-2000JW-XXXXX |
iFD 2.5" SATA 3.0 2000JW SLC SSD Wide Temp. Grade -40°C~85°ºC (8GB~128GB) |
|
XXXXX=Capacity |
|
|
|
|
|
|
