AFL-057A
|
The 5.7” Power over Ethernet (PoE) All-in-One Panel PC integrates with the ultra low power Intel® Atom Z510/Z530 processor, as well as an 5.7” LED backlit LCD panel, and PoE function, packaged into a compact fanless form factor which is easily deployed into building for home automation systems, building control and security applications. |
|
|
● 5.7” LED Backlight all-in-one Panel PC with resistive touch screen
● Intel® Atom™ Z510/Z530 Processor up to 1.6 GHz
● Lower Power Consumption and Fanless Operation
● Supports IEEE802.3af Power Over Ethernet (PoE) standards
● 4 Wire Resistive Touch Capable
● One compact flash slot
● Wide Operating Temperature Capable: -20ºC to 60ºC
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
(Suggest over 4GB storage capacity)
● IP64 front panel protection |
|
 |
|
PoE Panel PC eliminates Need for AC Outlets |
|
|
|
|
 |

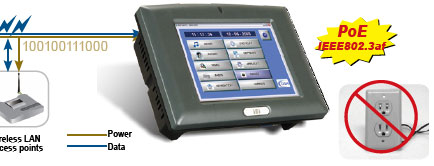

The IEI AFL-057A is IEEE 802.3af compliant. The IEEE 802.3af PoE standard ensures that 12.95 W of DC power is provided to each connected device. PoE Technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5e cable in an Ethernet network. |
 |
|
|
|
|
|
|
Power over Ethernet reduce the Cost of Project Deployment |
|
|
|
|
|

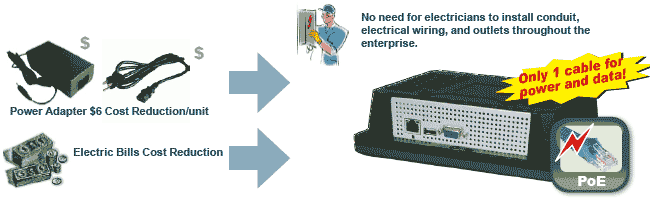

Lower cost of system installation |
 |
|
No wiring hassles! Install anywhere a RJ-45 jack is present.. |
|
The AFL-057A can be installed with minimal hassle and disruption in any location where a RJ-45 Ethernet jack is present including industrial,retail and home environments. |
 |
 |
 |
 |
|
Home & Build Automation |
Specially conveyance |
Production Line Control |
Digital Signage |
|
|
Reliable PoE Power Management and Scheduling. |
|

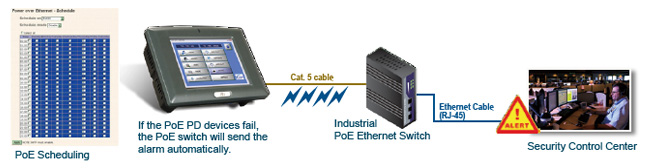

If the AFL-057A fails when connected to the Lite-managed PoE Ethernet Switch (IPS-2042TX) ,the switch will automatically send an alarm. The PoE switch will then either reboot or shut down the device depending on the user setting. Users of the PoE can also schedule the time to power on the attached devices with power scheduling settings. |
 |
|
|
|
|
High graphic performance supports H.264, MPEG1/2/4, VC1/WMV9 high definition decode |
|
|
|
|
|
The AFL-057A is powered by Intel® Z510P/Z530P Processor up to 1.6GHz. Full hardware decoding of H.264, MPEG2, VC1, and WMV9 is supported, eliminating the need for software decode and overloading the processor. Multitasking is optimized with amazingly low CPU resource utilization. |
|
Smooth video playback with Intel® Atom™Z530P Processor |
|
|
|
|
|
|
|
|
Model |
AFL-057A-Z510/Z530 |
|
LCD Size |
5.7" |
|
Max Resolution |
640 x 480 |
|
Brightness (cd/m2) |
400 |
|
Contrast Ratio |
300:1 |
|
LCD Color |
262K |
|
Pixel Pitch (mm) |
0.06(H) x 0.18(V) |
|
Viewing Angle (H-V) |
140(H) / 100(V) |
|
Backlight MTBF |
50000hrs (LED Backlight) |
|
CPU |
Intel® Atom™ Z530 1.6GHz Processor
Intel® Atom™ Z510 1.1GHz Processor |
|
Chipset |
Intel® SCH：US15W |
|
RAM |
1 x 200-pins SO-DIMM DDR2 533/400MHz SDRAM (max. 2GB) |
|
I/O Ports and Switches |
1 x RS-232/422/485 COM port
1 x RJ-45 for GbE (PoE 802.3af)
1 x USB 2.0
1 x Reset button |
|
SSD |
CF type II |
|
Watchdog Timer |
Software programmable supports 1~255 sec. System reset |
|
Audio |
AMP 1.5W+1.5W |
|
Construction Material |
ABS + PC Plastic front frame |
|
LED Functions |
1 x Power ON/OFF LED on front panel |
|
Mounting |
Panel, Wall, Stand and Arm (VESA 75mm x 75mm) |
|
Front Panel Color |
Gray 7539U |
|
Dimension (WxHxD) (mm) |
180 x 135 x 55 |
|
Operation Temperature (oC) |
-20°C~60°C |
|
Storate Temperature (oC) |
-20°C~60°C |
|
Net Weight |
0.8 Kg |
|
IP Level (front panel) |
IP 64 |
|
Safety & EMC |
CE,FCC,CCC,CB |
|
Touch Screen |
Resistive Type 4-Wire(touch controller IC is on board) |
|
Power Consumption |
12W |
|
|
|
|
|
|
Item |
Part Number |
|
Panel mounting kit |
AFLPK-12 |
|
Wall mounting kit |
AFLWK-12 |
|
Rack mounting kit |
AFLRK-057 |
|
ARM |
ARM-11-RS / ARM-31-RS |
|
Stand |
STAND-A08 / STAND-C12 / STAND-100-RS |
|
VSTAND |
VSTAND-A07 |
Industrial PoE Switch
(4 ports P.S.E) |
IPS-2042TX |
|
OS: Win XPE (1GB CF card) |
AFLCF-057-US15W-XPE-R10 |
|
OS: Win 7 Embedded (2GB CF card) |
AFLCF-057-US15W-WIN7-R10 |
|
OS: Win CE 6.0 (1GB CF card) |
AFLCF-057-US15W-CE6-R10 |
|
Hybrid Card Reader |
AFLP-08AMSI-U |
|
Magnetic Stripe Reader |
AFLP-08AMSR-U |
|
 |
IPS-2042TX |
Industrial 6-port Lite-Managed
PoE Ethernet Switch |
|
|
Features |
|
• World’s fastest Redundant Ethernet Ring : O-Ring (Recovery time < 10ms over 250 units of connection) |
|
• Multiple Redundant Ethernet technology RSTP/STP, O-Ring supportedd |
|
• SNMP v1 support for secured network management |
|
• Confi gurable by Web-based and Windows utility (Open-Vision) |
|
• Triple redundant DC power inputs of terminal block and power jack |
|
• Event notifi cation through Syslog, Email, and SNMP trap. |
|
• Two 100Base-FX fi ber port support for long distance connection |
|
• 4 ports support P.S.E based on IEEE 802.3af standard up to 25 Watts perport |
|
• Very wide operating temperature range from -40°C to 70°C |
|
• Rigid IP-30 housing design |
|
• DIN-Rail and panel mounting supported |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Description |
Part Number |
Amount |
Specification |
|
Screws Pack |
44013-0300441-RS |
4 |
M3;5mm |
|
Utilities CD |
7B000-000087-RS |
1 |
|
|
Touch Pen |
43125-0002C0-00-RS |
1 |
|
|
|
|
|
|
|
|
|
Model |
Description |
|
AFL-057A-Z530/R/1G-R10 |
5.7" 400 cd/m² VGA fanless panel PC with Intel® Atom™ Z530 CPU 1.6GHz,PoE IEEE 802.3af,touch screen,1GB DDR2 553 MHz,RoHS |
|
AFL-057A-Z510/R/1G-R10 |
5.7" 400 cd/m² VGA fanless panel PC with Intel® Atom™ Z510 CPU 1.1GHz,PoE IEEE 802.3af,touch screen,1GB DDR2 553 MHz,RoHS |
|
|
|
|
|
|
