EBC-3200
|
|
• Design for Mini-ITX SBC with single voltage input
• Flexible storage with CF or 2.5" HDD (optional)
• One PCI or PCIe expansion slot (optional) |
|
 |
|

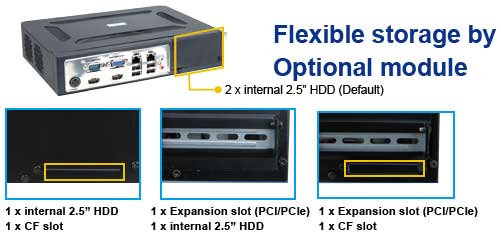

Flexible design with five optional module for storage and expansion slot |
|
|
|
|
Optional module
|
|
Part No.
|
Description
|
|
EBCKIT-01-R10/PCI-HDD
|
EBC-3200 optional module with 1xPCI slot and 1x2.5" HDD, RoHS
|
|
EBCKIT-02-R10/PCIe-HDD
|
EBC-3200 optional module with 1xPCIe slot and 1x2.5" HDD, RoHS
|
|
EBCKIT-03-R10/PCI-CF
|
EBC-3200 optional module with 1xPCI slot and 1xCompactFlash slot, RoHS
|
|
EBCKIT-04-R10/PCIe-CF
|
EBC-3200 optional module with 1xPCIe slot and 1xCompactFlash slot, RoHS
|
|
EBCKIT-05-R10/CF-HDD
|
EBC-3200 optional module with 1xCompactFlash slot and 1x2.5" HDD, RoHS
|
|
|
|
|
|
|
|
|
SBC Form Factor: |
Mini-ITX SBC(Signal Voltage input) |
|
Cooling Fans |
2 x 4cm |
|
Storage |
2 x 2.5” HDD (Default) or 1 x 2.5” HDD + 1 x CF kit (optional) |
|
Indicates |
Power, HDD LED |
|
Contrast Ratio |
Buttons |
|
Expansion |
1 x PCIe or 1 x PCI riser card (optional) |
|
Color |
Black |
|
Dimensions |
260mm(W) x 180mm(D) x 55 mm (H) |
|
Weight (Net/Gross) |
1.1KG/2KG |
|
Operating temperature: |
-10~ 50°C with air flow* |
|
Mounting |
Desktop, wall mount, VESA mount |
|
(*Ambient air speed pre IEC-68-2-2 standard) |
|
|
|
|
|
|
|
|
Part No. |
Expansion Type (optional)AmountSpecification |
|
KINO-945GSE2 |
PCI |
|
KINO-780EB |
PCI |
|
KINO-GM45A |
PCI |
|
KINO-QM57A |
PCIe x16 |
|
1 x QIG
|
1 x Screw set
|
|
2 x Wall mount bracket
|
1 x Driver CD
|
|
1 x Power cord
|
|
|
|
|
|
|
|
|
|
Model |
Description |
|
EBC-3200-R10 |
Mini-ITX embedded chassis, compatible two 2.5" HDD, w/o power adapter, Black, RoHS |
|
63000-FSP060DBAB1554-RS |
Power Adapter;FSP060-DBAB1554;VAC:90V~264V;12V/5A;60W; DIN 4 PIN/WITH LOCK;1800MM; FSP; RoHS |
|
32000-000002-RS |
Round Cable;power Cord;2;1830MM; (A)PLUG(16A 250V); (B)CONNECTOR(10A 250V); European Power Cord(CEE);RoHS |
|
32000-000025-RS |
Power Cord;power Cable;2;1830MM;18AWG;(A)PLUG 10A/125V;(B)CONNECTOR 10A/125V;america Power Cord(UL); RoHS |
|
|
|
|
|
|
