AFL-15i-HM55/AFL-17i-HM55/AFL-19i-HM55
|
AFL-15i-HM55/AFL-17i-HM55/AFL-19i-HM55
|
|

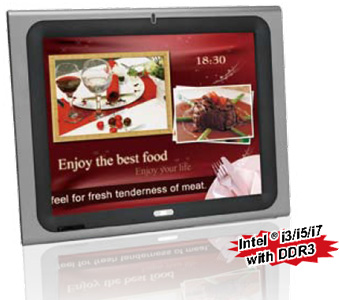

15”~19” AFOLUX PPC features Intel® Core™ i7/i5/i3 processor with HM55 chipset
|
 |
|
Key Features
|
■ 15”~19” multi-functional Panel PC with touch screen
|
|
■ Powered by high performance Intel® mobile Core™ i7/ i5/ i3 and Celeron® processor with Intel® HM55 chipset
|
■ System memory supports dual-channel DDR3 SDRAM SO-DIMM up to 8GB
|
■ HDMI interface provides second display vivid image quality
|
■ 802.11 b/g/n high speed wireless
|
|
|
■ Versatile mounting solution: Panel/Wall/Rack/Stand mounting
|
■ IEI One Key Recovery solution allows you to create rapid OS backup and recovery
|
|
 |
|
New Intel® Core™ i7/i5/i3 Mobile Solution |
|
|
|
|
|
|
 |
|
|
|
|
 |

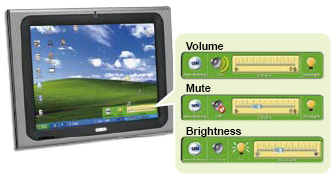

IEI patented system software settings utility allows users to adjust system settings from software under Windows environment instead of adjustment from the membrane keypad below the front panel. |
|
|
|
|
|
|

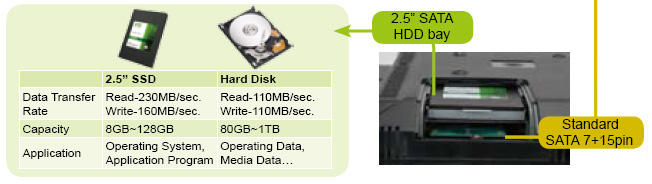

The storage interface of AFL-15i/17i/19i-HM55 is SATA II 3Gb/s. Not only 2.5” SATA HDD bay can provide you economical capacity/cost ratio, but also additional 7+15pin SATA interface |
|
gives you more reliable and faster data rate than CF card. |
 |
 |
|
|
|
|

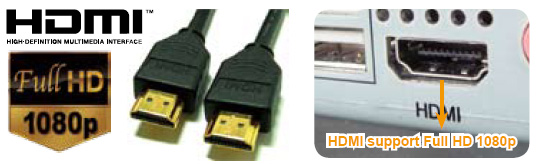

HDMI Port Delivers the High Image Quality on the Second Display |
|
|
|
|

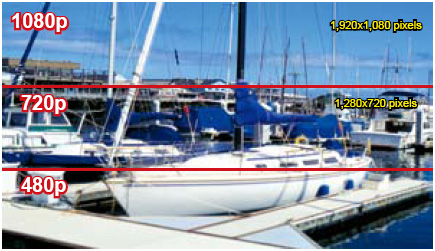

High-Definition Multimedia Interface (HDMI) which is a compact audio/video
interface for transmitting uncompressed digital data delivering high-definition video
support 1080p resolution which equates to 1,920x1,080 pixels, it also supports
industry standard EIA-861B video modes including 480p, 720p, 1080i, and 1080p |
 |
 |
|
|
|
|
|
|
|
|
|
AFL-15i(E)-HM55 |
AFL-17i-HM55 |
AFL-19i(E)-HM55 |
|
LCD Touch Specification |
|
LCD Size |
15" |
17" |
19" |
|
Max Resolution |
1024(W) x 768(H) |
1280(W) x 1024(H) |
1280(W) x 1024(H) |
|
Brightness (cd/m²) |
350 or 250 |
380 |
450 |
|
Contrast Ratio |
700:1 or 600:1 |
800:1 |
1000:1 |
|
LCD Color |
16.2M |
16.7M |
16.7M |
|
Pixel Pitch (mm) |
0.297(H) x 0.297(V) |
0.264(H) x 0.264(V) |
0.294(H) x 0.294(V) |
|
Viewing Angle (H-V) |
140/125 |
160/160 |
178/178 |
|
Backlight MTBF |
50,000 |
50,000 |
50,000 |
|
Touch Screen |
Resistive Type 5-Wire (touch controller IC is on board) or capacitive type touch screen without HDD bay |
Resistive Type 5-Wire (touch controller IC is on board) |
|
System |
|
SBC model |
AFLMB2-HM55-R10 |
|
CPU |
Socket G (PGA989) Intel® Arrondale processor |
|
Chipset |
Intel® HM55 |
|
Memory |
Two 204-pin 800 / 1066 DDR3 dual-channel SO-DIMM(system max. 8GB) |
|
IO ports |
|
1 |
x |
RS-232 by DB9 |
|
1 |
x |
RS-232 or RS-422/485 by DB9 |
|
2 |
x |
GbE LAN by RJ-45 |
|
4 |
x |
USB connector |
|
1 |
x |
HDMI Port |
|
1 |
x |
Audio jack (line out) |
|
1 |
x |
VGA port by DB15 |
|
1 |
x |
reset button |
|
1 |
x |
Power Switch |
|
1 |
x |
Power Jack |
|
|
Drive Bay |
1 x 2.5" SATA HDD bay for SATA storage devices use |
|
SSD |
SATA Slim SSD |
|
Watchdog Timer |
Software programmable supports 1~255 sec. System reset |
|
Audio |
AMP 3W + 3W (internal speaker) |
|
Membrane Keypad |
LCD On/Off, Brightness Up/Down ,Volume High/Low |
|
LED Function |
1 x Power ON/OFF LED on Front Panel |
|
Wireless |
|
WiFi |
1 x WiFi module 802.11 b/g/n (internal PCIe mini card interface) |
|
Bluetooth |
1 x Bluetooth 2.1 + EDR (USB interface) |
|
Optional HSUPA module |
optional 1 x HSUPA mobile module (USB interface) |
|
Physical |
|
Construction Material |
ABS + PC Plastic front frame |
|
Mounting |
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
Panel, Wall, Stand and Arm VESA 100mm x
100mm |
|
Front Panel Color |
Sliver (877U) & Gray (ABSA2037) |
|
Net Weight |
5.8 kg |
6.0 kg |
6.2 kg |
|
Dimension (WxHxD) (mm) |
394 x 309 x 75 |
428 x 350 x 76 |
470 x 383 x 79 |
|
Environment |
|
Operation Temperature (°C) |
0°C~50°C |
0°C~50°C |
0°C~50°C |
|
Storage Temperature (°C) |
-20°C~60°C |
-20°C~60°C |
-20°C~60°C |
|
IP Level |
Front Frame IP64 |
|
EMC & Safety |
CE / FCC / CB / CCC |
|
Power |
|
Power Adapter |
P/N: 63000-FSP096AHB-RS
96W power adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12V DC |
|
Power Requirement |
12V DC |
|
Power Consumption |
80W |
85W |
87W |
|
|
|
|
|
|
15" Regular Limunance (250cd/m²) |
AFL-15iE-HM55i3-35/R/2G-R10 |
15" 250cd/m² XGA panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, RoHS |
|
AFL-15iE-HM55i5-52/R/2G-R10 |
15" 250cd/m² XGA panel PC with Intel® Core™ i5-520M 2.4G CPU,2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, RoHS |
|
AFL-15iE-HM55i7-62/R/2G-R10 |
15" 250cd/m² XGA panel PC with Intel® Core™ i7-620M 2.66G CPU,2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, RoHS |
|
AFL-15iE-HM55-P45/R/1G-R10 |
15" 250cd/m² XGA panel PC with Intel® Celeron P4500 1.86G CPU,1GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, RoHS |
15" High
Limunance
(350cd/m²) |
AFL-15i-HM55i3-35/R/2G-R10 |
15" 350cd/m² XGA panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, RoHS |
|
AFL-15i-HM55i5-52/R/2G-R10 |
15" 350cd/m² XGA panel PC with Intel® Core™ i5-520M 2.4G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, RoHS |
|
AFL-15i-HM55i7-62/R/2G-R10 |
15" 350cd/m² XGA panel PC with Intel® Core™ i7-620M 2.66G CPU,2GB DDR3 RAM,802.11 b/g/n wireless module,touch screen,Bluetooth,RoHS |
|
AFL-15i-HM55P-P45/R/1G-R10 |
15" 350cd/m² XGA panel PC with Intel® Celeron P4500 1.86G CPU, 1GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, RoHS |
17" High
Limunance
(380cd/m²) |
AFL-17i-HM55i3-35/R/2G-R10 |
17" 380cd/m² SXGA panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, R10, RoHS |
|
AFL-17i-HM55i5-52/R/2G-R10 |
17" 380cd/m² SXGA panel PC with Intel® Core™ i5-520M 2.4G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, R10, RoHS |
|
AFL-17i-HM55i7-62/R/2G-R10 |
17" 380cd/m² SXGA panel PC with Intel® Core™ i7-620M 2.66G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, R10, RoHS |
|
AFL-17i-HM55-P45/R/1G-R10 |
17" 380cd/m² SXGA panel PC with Intel® Celeron P4500 1.86G CPU, 1GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, R10, RoHS |
19" High
Limunance
(450cd/m²) |
AFL-19i-HM55i3-35/R/2G-R10 |
19" 450cd/m² SXGA panel PC with Intel® Core™ i3-350M 2.26G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, R10, RoHS |
|
AFL-19i-HM55i5-52/R/2G-R10 |
19" 450cd/m² SXGA panel PC with Intel® Core™ i5-520M 2.4G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, R10, RoHS |
|
AFL-19i-HM55i7-62/R/2G-R10 |
19" 450cd/m² SXGA panel PC with Intel® Core™ i7-620M 2.66G CPU, 2GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, R10, RoHS |
|
AFL-19i-HM55-P45/R/1G-R10 |
19" 450cd/m² SXGA panel PC with Intel® Celeron P4500 1.86G CPU, 1GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, Bluetooth, R10, RoHS |
|
|
|
|
|
|
|
|
Model |
AFL-15i-HM55 |
AFL-17i-HM55 |
AFL-19i-HM55 |
|
Panel mounting kit |
AFLPK-19B
|
|
Wall mounting kit |
AFLWK-19 / AFLWK-19B
|
|
Rack mounting kit |
AFLRK-15B-R11
|
AFLRK-17B-R11
|
N/A
|
|
ARM |
|
|
|
