NOVA-HM551
|
|
|
1. 5.25" SBC with Socket G1 supports Intel® 32nm/45nm Core™ i7/ i5/ i3 and Celeron® processor |
|
2. Dual-channel 800/1066 MHz DDR3 SDRAM supported (system max. 8 GB) |
|
3. 18/24-bit dual channel LVDS/ analog CRT/ dual HDMI output supported |
|
4. Support PCIe x16, dual PCIe Mini card and PCI-104 device |
|
5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
|
|
|
Best Graphic Performance Solution for Mobile Core™ i7/ i5/ i3/ Celeron® Platform |
Mobile Core™ i7 Embedded CPU List for QM57/ HM55 |
|
Package Type |
Brand Name |
Code Name |
CPU No. |
Clock Speed |
L2 Cache |
TDP |
Intel® AMT 7.0 |
Integrated Graphic |
Socket G1
988-pin PGA |
Core™ i7
Extreme Edition |
Arrandale |
i7-840XM |
2.13G |
8M |
55W |
|
|
|
i7-820XM |
2.0G |
8M |
55W |
|
|
|
Core™ i7 |
i7-840QM |
1.86G |
8M |
45W |
|
|
|
i7-820QM |
1.73G |
8M |
45W |
|
|
|
i7-740QM |
1.73G |
6M |
45W |
|
|
|
i7-720QM |
1.6G |
6M |
45W |
|
|
|
i7-620M |
2.66G |
4M |
35W |
V (For QM57 only) |
V |
|
Core™ i5 |
i5-540M |
2.53G |
3M |
35W |
|
V |
|
i5-520M |
2.4G |
3M |
35W |
V (For QM57 only) |
V |
|
i5-450M |
2.4G |
3M |
35W |
|
V |
|
i5-430M |
2.26G |
3M |
35W |
|
V |
|
Core™ i5 |
i3-370M |
2.4G |
3M |
35W |
|
V |
|
i3-350M |
2.26G |
3M |
35W |
|
V |
|
i3-330M |
2.13G |
3M |
35W |
|
V |
|
Celeron® |
P4500 |
1.86G |
2M |
35W |
|
V |
|
|
Yellow means long team support processor |
|
|
CPU Performance Comparison |
 |

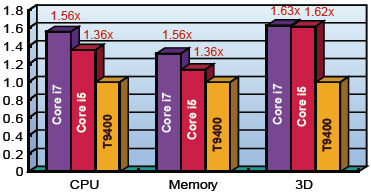

Intel® Core™ i7 processor is 1.56 and 1.6 time fasteron CPU and graphic performance compared with theT9400 CPU plus GM45 chipset.
Note: Intel® Core™ i7 Quad Core CPU does not
support internal graphic, please use addon
graphic card for graphic support.
 |
|
|
Valued Mobile Core™ i7 Choice |

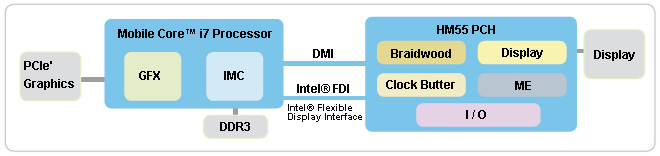

Specification differences between QM57 and HM55
|
Ibex Peak-M Feature |
QM57 |
HM55 |
|
PCI-Express |
8 ports |
6 ports |
|
SATA |
6 ports |
4 ports |
|
TDP |
3.2~3.5W |
3.2~3.5W |
Intel Active Management
Technology (Intel AMT |
6.0
(integrated KVM) |
No |
|
USB 2.0 Ports |
14 ports |
12 ports |
|
HM55 total solutions
 |
 |
 |
 |
KINO-HM551
Mini-ITX SBC, 12V,6COM,HDMI/LVDS
/VGA/DVI Dual GbE,
PCIe x16, Dual PCIe Mini |
 |
|
|
 |
|
 |
 |
 |
|
|
|
|
|
|
|
NOVA-HM551
5.25” SBC, 12V, 6COM,
Dual HDMI/LVDS/VGA, Dual GbE, PCIe x16, PCI-104,
Dual PCIe Mini |
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
CPU |
Socket G1 for Intel® mobile Core™ i7/ i5/ i3 and Celeron® processor (Socket 988) |
|
PCH |
Intel® HM55 |
|
Memory |
Two 204-pin 4GB (max.) 800/1066MHz dual-channel DDR3 SDRAM SO-DIMM supported
(System max. 8GB) |
|
BIOS |
UEFI BIOS |
|
Graphic Engine |
Gen 5.75 with 12 Execution Units DirectX* 10, OpenGL* 2.1 |
|
Super I/O |
Fintek F81865 |
|
Display Interface |
VGA integrated in the Intel®HM55 support up to QXGA
18/24-bit dual channel LVDS
Dual HDMI output |
|
LAN |
Dual PCIe GbE controller by Realtek RTL8111E, LAN1 with ASF2.0 support |
|
I/O Interface |
4 x RS-232
2 x RS-232/422/485 with Auto Flow control
8 x USB 2.0
4 x SATA 3Gb/s with DC power output
1 x LPT
1 x 6-pin header for KB/MS |
|
Expansion |
1 x PCIe x16 slot
1 x PCI-104
2 x PCIe Mini card slot (USB+PCIe signal) |
|
SMBus |
1 x 4-pin wafer connector |
|
TPM (optional) |
On board Infineon SLB9635TT1.2 |
|
Digital I/O |
8-bit digital I/O, 4-bit input / 4-bit output |
|
Fan Connector |
1 x 4-pin for CPU fan
1 x 3-pin for chassis fan |
|
Audio |
On-board Realtek ALC888 HD Audio codec |
|
Watchdog Timer |
Software programmable support 1~255 sec. system reset |
|
Power Supply |
DC 12V only, AT/ATX Power support by jumper |
|
Power Consumption |
12V@4.67A (2.66GHz Intel® Core™ i7 620M CPU with DDR3 1333MHz 4GB*2 DIMM) |
|
Temperature |
Operation: -10°C ~ 60°C |
|
Humidity |
Operation: 5% ~ 95%, non-condensing |
|
Dimensions |
203mm x 146mm |
|
Weight |
GW: 800g / NW: 300g |
|
|
|
|
|
|
|
|
|
|
|
|
|
1 x NOVA-HM551 single board computer |
|
1 x VGA cable (P/N: 32000-033800-RS) |
|
2 x SATA with 5V power cable Kits (P/N: 32801-000201-100-RS) |
|
1 x KB/MS Y cable (P/N: 32000-023800-RS) |
|
1 x Quad port RS-232 adapter cable (P/N: 32100-147900-RS) |
|
1 x USB cable (P/N: 32200-044300-RS) |
1 x Audio cable (P/N:32000-072100-RS) |
|
1 x QIG |
1 x Utility CD |
|
1 x Mini jumper pack |
|
|
|
|
|
|
|
Part No. |
Description |
|
NOVA-HM551-R10 |
5.25" SBC with Socket G1 support Intel® 32nm/45nm Core™ i7/ i5/ i3 and Celeron® processor, VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 2.0, Dual PCIe Mini, PCIe x16, SATA 3Gb/s and Audio, RoHS |
|
NOVA-HM551T-R10 |
5.25" SBC with Socket G1 support Intel® 32nm/45nm Core™ i7/ i5/ i3 and Celeron® processor, VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 2.0, Dual PCIe Mini, PCIe x16, SATA 3Gb/s and Audio, TPM, RoHS |
|
CB-USB02A-RS |
Dual USB cable with bracket |
|
32205-000300-100-RS |
RS-232/422/485 cable |
|
CF-989A-RS-R11 |
CPU cooler for mobile socket-G (PGA988) up to 55W processor, Copper, 60x60x27.6mm ,RoHS |
|
CF-989B-RS |
CPU cooler for mobile socket-G (PGA988) 50W processor, Aluminum,60x60x27.6mm, RoHS |
|
SAIDE-KIT01-R10 |
SATA to IDE/CF converter board |
|
32200-015100-RS |
LPT cable |
|
|
|
|
|
