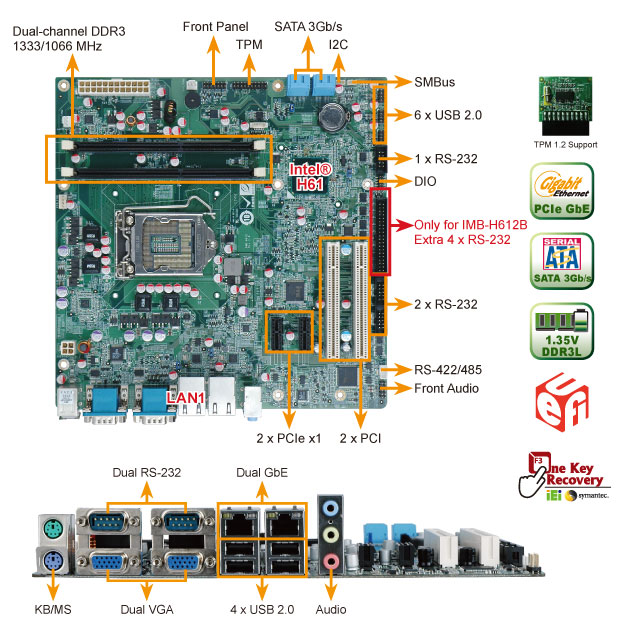

IMB-H612A & IMB-H612B
|
|
 |
 |
 |
 |
|
IMB-H612A |
microATX motherboard supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU per Intel® H61, DDR3, Dual VGA, Dual PCIe GbE, USB 2.0, PCI, 6 COM, SATA 3Gb/s, Audio and RoHS |
|
IMB-H612B |
microATX motherboard supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU per Intel® H61, DDR3, Dual VGA, Dual PCIe GbE, USB 2.0, PCI, 10 COM, SATA 3Gb/s, Audio and RoHS |
 |
|
 |
 |
 |
 |
|
|
 |
|
 Features |
|
|
|
 |
LGA1155 Intel® Core™ i7/i5/i3 processor supported |
|
|
Dual-channel 1333MHz DDR3/DDR3L (1.35V) supports up to 16GB |
|
|
Intel® HD Graphics technology integrates high-performance graphics and media processing |
|
|
Supports independent display output via dual VGA |
|
|
Supports legacy PCI 32-bit 33/66MHz |
|
|
Supports lower power 1.35V DDR3 memory |
|
|
TPM V1.2 hardware security function supported by TPM module |
|
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
|
|
|
Power-Optimized performance - Intel Core 35W desktop CPU |
|
|
|
Fanless embedded systems with low power desktop processors are a leading-edge technology with an eco-friendly design that provides one of the most flexible solutions for a smaller carbon footprint. It‘s the best balance between performance and energy-efficient computing.
 |
|
35W Intel® Core™ processors |
 |
Brand |
Core |
CPU No. |
Clock speed |
Smart cache |
TDP |
|
Core i5 |
Dual |
i5-2390T |
2.7G |
3M |
35W |
|
Core i3 |
Dual |
i3-2120T |
2.6G |
3M |
35W |
|
i3-2100T |
2.5G |
3M |
35W |
|
Pentium |
Dual |
G630T |
2.3G |
3M |
35W |
|
G620T |
2.2G |
3M |
35W |
|
Celeron |
Dual |
G530T |
2.0GHz |
2M |
35W |
|
Single |
G460 |
1.6GHz |
1.5M |
35W |
|
G440 |
1.6GHz |
1M |
35W |
|
*IEI recommended cost-efficient processors (long-term support) |
|
*Yellow means long-term support |
|
|
|
|
Low power cooler for 1U chassis |
|
Desktop Core™ CPU Cooler |
 |
|
Model Name |
CF-1156C-RS |
|
Description |
Low power LGA1155/LGA1156 Cooler kit for Intel® CPU,
45W, 1U chassis compatible,
90 x 90 x 33mm, CCL, RoHS |
|
CPU Solution |
Core™ i5/i3/Pentium®/Celeron® |
|
Socket Solution |
LGA1155/LGA1156 |
|
Demensions |
90 x 90 x 33mm |
|
Material |
Al |
|
Bearing Type |
Two Ball |
|
Capability (Watt) |
45W |
|
Fan Speed (RPM) |
3000 |
|
Noise Level (dBA) |
33.4 |
|
Life Expectancy (hrs) |
50000 |
|
Weight (g) |
192 |
|
|
|
|
|
|
35W desktop CPU Performance comparison and mapping |
|
|
|
|
|
Mobile Core™ i5 V.S. Desktop Core™ i5 |
Mobile Core™ i3 V.S. Desktop Pentiu |
Mobile Celeron® V.S. Desktop Celeron® |
|
Product Name |
Mobile 35W
Intel® Core™ i5-2520M Processor
(3M Cache, 2.50 GHz) |
Desktop 35W
Intel® Core™ i5-2390T Processor
(3M Cache, 2.70 GHz) |
Mobile 35W
Intel® Core™ i3-2330E Processor
(3M Cache, 2.20 GHz) |
Desktop 35W
Intel® Pentium® Processor G620T
(3M Cache, 2.20 GHz) |
Desktop 35W
Intel® Core™ i3-2100T Processor
(3M Cache, 2.50 GHz) |
Mobile 35W
Intel® Celeron® Processor B810
(2M Cache, 1.60 GHz) |
Desktop 35W
Intel® Celeron® Processor G530T
(2M Cache, 2.00 GHz) |
|
Graphics Model |
Intel® HD
Graphics 3000 |
Intel® HD
Graphics 2000 |
Intel® HD
Graphics 3000 |
Intel® HD
Graphics |
Intel® HD
Graphics 2000 |
Intel® HD
Graphics |
Intel® HD
Graphics |
|
Graphics Base Frequency |
650 MHz |
650 MHz |
650 MHz |
650 MHz |
650 MHz |
650 MHz |
650 MHz |
|
Graphics Max Dynamic Frequency |
1.3 GHz |
1.1 GHz |
1.05 GHz |
1.1 GHz |
1.1 GHz |
950 MHz |
1 GHz |
|
Intel® InTru™ 3D Technology |
 |
|
|
 |
|
|
|
|
Intel® Flexible Display Interface (Intel® FDI) |
|
|
|
|
|
|
|
|
Intel® Clear Video HD Technology |
|
|
|
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
CPU |
LGA1155 socket supports Intel® Core™ i7/i5/i3 quad/dual, Pentium® dual, Celeron® dual/single core processor |
|
Chipset |
Intel® H61 |
|
Memory |
Two 240-pin 1333/1066MHz dual-channel DDR3/DDR3L (1.35V) SDRAM unbuffered DIMM supported (system max. 16GB) |
|
BIOS |
UEFI BIOS |
|
Ethernet |
Dual Realtek RTL8111E PCIe GbE controller, LAN1 with ASF 2.0 supported |
|
Graphics Engine |
VGA1:
Intel® HD Graphics 2000/3000 (Base on CPU type)
Support for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode
Resolution supports up to 2048 x 1536 @75Hz
VGA2:
Chrontel CH7317B
Resolution supports up to 1920 x 1200 @60Hz |
|
Display Output |
Dual display supported 2 x VGA |
|
Super IO |
Fintek F81866 |
|
PCIe to PCI Bridge IC |
ITE IT8893E |
|
Audio |
Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic) |
|
I/O Interfaces |
1 x PS/2 KB/MS
4 x SATA 3Gb/s without RAID & AHCI
1 x RS-422/485 |
10 x USB 2.0 (4 by rear IO, 6 by pin header)
5 x RS-232 (for IMB-H612A-R10)
9 x RS-232 (for IMB-H612B-R10) |
|
Front Audio |
2 x 5-pin header |
|
TPM |
2 x 10-pin header |
|
SMBus |
1 x 4-pin wafer |
|
I2C |
1 x 4-pin wafer |
|
Expansions |
2 x PCIe x1 slots
2 x PCI slots |
|
Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
|
Digital I/O |
8-bit programmable I/O |
|
Fan Connector |
1 x 4-pin CPU fan connector
2 x 3-pin system fan connector |
|
Power Supply |
AT/ATX power supply supported |
|
Power Consumption |
12V@0.27A, Vcore@5.3A, 5V@2.0A, 3.3V@1.0A |
|
Operating Temperature |
-10°C ~ 60°C |
|
Operating Humidity |
5% ~95%, non-condensing |
|
Dimensions |
244mm x 244mm |
|
Weight |
GW: 1200g/NW: 680g |
|
|
|
