PCIE-H610
 |
 |
 |
 |
|
PCIE-H610 |
Full-size PICMG 1.3 CPU card Supports 32nm LGA1155 Intel® Core™ i7/i5/i3/ Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS |
|
|
|
 |
 |
 |
 |
 Features |
|
|
|
 |
Full-size PICMG 1.3 graphics grade solution |
|
|
LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported |
|
|
Dual-channel 1333/1066MHz DDR3/DDR3L SDRAM supported up to 16GB |
|
|
Intel® HD Graphics technology integrates high-performance graphics and media processing |
|
|
TPM V1.2 hardware secruity function supported by TPM module |
|
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |
|
Power-Optimized performance - Intel® Core™ 35W desktop CPU |
|
|
|
|
Fanless embedded systems with low power desktop processors are a leading-edge technology with an eco-friendly design that provides one of the most flexible solutions for a smaller carbon footprint. It‘s the best balance between performance and energy-efficient computing. |
|
|
|
|
|
35W Intel® Core™ processors |
|
 |
|
Brand |
Core |
CPU No. |
Clock speed |
Smart cache |
TDP |
|
Core i5 |
Dual |
i5-2390T |
2.7G |
3M |
35W |
|
Core i3 |
Dual |
i3-2120T |
2.6G |
3M |
35W |
|
i3-2100 |
2.5G |
3M |
35W |
|
Pentium |
Dual |
G630T |
2.3G |
3M |
35W |
|
G620T |
2.2G |
3M |
35W |
|
Celeron |
Dual |
G530T |
2.0GHz |
2M |
35W |
|
Single |
G460 |
1.6GHz |
1.5M |
35W |
|
G440 |
1.6GHz |
1M |
35W |
|
|
|
|
*IEI recommended cost-efficient processors (long-term support) |
|
*Yellow means long-term support |
|
|
|

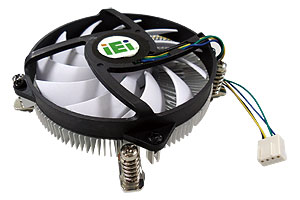

Low power cooler for 1U chassis |
|
Desktop Core™ CPU Cooler |
  |
|
Model Name |
CF-1156C-RS |
|
Description |
Low power LGA1155/LGA1156 Cooler kit for Intel® CPU, 45W, 1U chassis compatible, 90 x 90 x 33mm, CCL, RoHS |
|
CPU Solution |
Core™ i5/i3/Pentium®/Celeron® |
|
Socket Solution |
LGA1155/LGA1156 |
|
Demensions |
90 x 90 x 33mm |
|
Material |
Al |
|
Bearing Type |
Two Ball |
|
Capability (Watt) |
45W |
|
Fan Speed (RPM) |
3000 |
|
Noise Level (dBA) |
33.4 |
|
Life Expectancy (hrs) |
50000 |
|
Weight (g) |
192 |
|
|
|
|
|
35W desktop CPU Performance comparison and mapping |
|
|
|
|
|
Mobile Core™ i5 V.S. Desktop Core™ i5 |
Mobile Core™ i3 V.S. Desktop Pentium® & Core™ i3 |
Mobile Core™ i3 V.S. Desktop Pentium® & Core™ i3 |
|
Product Name |
Mobile 35W Intel® Core™ i5-2520M Processor (3M Cache, 2.50 GHz) |
Desktop 35W Intel® Core™ i5-2390T Processor (3M Cache, 2.70 GHz) |
Mobile 35W Intel® Core™ i3-2330E Processor (3M Cache, 2.20 GHz) |
Desktop 35W Intel® Pentium® Processor G620T (3M Cache, 2.20 GHz) |
Desktop 35W Intel® Core™ i3-2100T Processor (3M Cache, 2.50 GHz) |
Mobile 35W Intel® Celeron® Processor B810 (2M Cache, 1.60 GHz) |
Desktop 35W Intel® Celeron® Processor G530T (2M Cache, 2.00 GHz) |
|
Graphics Model |
Intel® HD Graphics 3000 |
Intel® HD Graphics 2000 |
Intel® HD Graphics 3000 |
Intel® HD Graphics |
Intel® HD Graphics 2000 |
Intel® HD Graphics |
Intel® HD Graphics |
|
Graphics Base Frequency |
650 MHz |
650 MHz |
650 MHz |
650 MHz |
650 MHz |
650 MHz |
650 MHz |
|
Graphics Max Dynamic Frequency |
1.3 GHz |
1.1 GHz |
1.05 GHz |
1.1 GHz |
1.1 GHz |
950 MHz |
1 GHz |
|
Intel® InTru™ 3D Technology |
V |
V |
V |
X |
V |
X |
X |
|
Intel® Flexible Display Interface (Intel® FDI) |
V |
V |
V |
V |
V |
V |
V |
|
Intel® Clear Video HD Technology |
V |
V |
V |
X |
V |
X |
X |
|
|
|
|
Specifications |
|
|
|
|
CPU |
LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor |
|
PCH |
Intel® H61 |
|
Memory |
Two 240-pin 1333/1066MHz dual-channel DDR3 & DDR3L (1.35V) DIMMs supported (system max. 16GB) |
|
BIOS |
UEFI BIOS |
|
Graphics Engine |
Intel® HD Graphics Gen 6 supports for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode |
|
Display Output |
1 x VGA
1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB module) (optional) |
|
Ethernet |
Dual Realtek RTL8111E PCIe GbE controllers (LAN1 with ASF 2.0 supported) |
|
Super IO |
Fintek F81866 |
|
PCIe Switch |
TI XIO3130 |
|
PCIe-PCI Bridge |
ITE IT8892E |
|
I/O Interfaces |
|
2 x RS-232 |
1 x RS-422/485 |
|
4 x SATA 3GB/s |
1 x LPT |
|
1 x FDD |
6 x USB 2.0 (2 by Rear IO, 4 by on-board pin header) |
|
1 x 6-pin wafer for KB/MS |
4 x USB 2.0 (4 by backplane pin header via golden finger) |
|
|
Front Panel |
1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) |
|
Audio |
Supports by IEI AC-KIT-888HD audio kit |
|
TPM |
2 x 10-pin headers |
|
SMBus |
1 x 4-pin wafer |
|
I2C |
1 x 4-pin wafer |
|
Infrared Interface |
1 x 5-pin header |
|
Expansion |
PCIe signal and PCI signal via golden finger |
|
Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
|
Digital I/O |
8-bit programble I/O |
|
Fan Connector |
1 x 4-pin smart fan connector |
|
Power Supply |
5V/12V, AT/ATX support |
|
Power Consumption |
5V@4.41A, 12V@0.21A, Vcore_12V@7.72A, 3.3V@1.71A, 5VSB@0.16A
(3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory) |
|
Operating Temperature |
-10°C ~ 60°C |
|
Operating Humidity |
5% ~ 95%, non-condensing |
|
Dimensions |
338 mm x 126 mm |
|
Weight |
GW: 1200g/NW: 420g |
|
|
|
|
Packing List |
|
|
|
|
1 x PCIE-H610 single board computer |
1 x One Key Recovery CD |
|
1 x Dual RS-232 cable (P/N: 19800-000051-RS) |
1 x Mini jumper pack |
|
1 x USB cable (P/N: 19800-003100-200-RS) |
1 x Utility CD |
|
4 x SATA cable (P/N: 32801-000703-200-RS) |
1 x QIG (Quick Installation Guide) |
|
|
|
|
Ordering Information |
|
|
|
|
Part No. |
Description |
|
PCIE-H610-R10 |
Full-size PICMG 1.3 CPU card supports 32nm LGA1155 I |
|
|
