IEI Launches the New AFL3-12A-BT Industrial Panel PC


High Performance Interactive System Easy Assembly and Symmetric Outlook
Compact Size High Speed Wireless 802.11 ac
IP64 Front & IPx1 Rear, -20°C~50°C Extended Temperature
1D/2D Barcode Scanning for Retail Applications (optional)
Modularized 1D/2D Barcode Scanner and Easy to Assemble
Software OSD configuration E-Window Module

Specifications Dimensions Ordering information Options Packing list

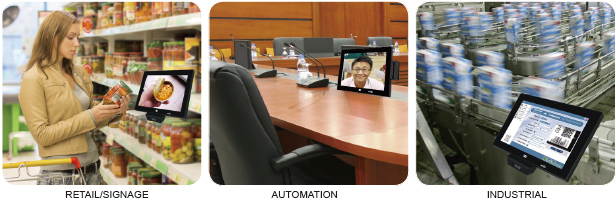

   High Performance Interactive System

• Fan-less design
• Green memory: low voltage DDR3L supports up to 8 GB
• New graphic performance

The latest Intel® Atom™ processor includes a 7th generation Intel® GPU with burst technology to provide a stunning graphics and media experience. Seamless video playback is supported by a high performance and low power hardware acceleration of media encode and decode.

• 3D graphics hardware acceleration including support for DirectX*11, OCL 1.2, OGL ES Halti/2.0/1.1, OGL 3.2
• Video decode hardware acceleration including support for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats
• Video encode hardware acceleration including support for H.264, MPEG2 and MVC formats

   Easy Assembly and Symmetric Outlook

   IP64 Front & IPx1 Rear, -20°C~50°C Extended Temperature

   High Speed Wireless 802.11 ac

• 2.4GHz and 5GHz Dual Band supplies faster and reliable signal
• The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.

Performance comparison AFLI with 802.11 b/g/n 2.4GHz AFL3 with 802.11 ac 5GHz
office office
(down)Average (Mbps)
19.159 92.91
High_Performance_Throughput (UP)
Average (Mbps)
32.767 94.828
HTTPtxt (down)Average (Mbps) 4.758 3.969
HTTPtxt (UP) Average (Mbps) 4.431 6.594

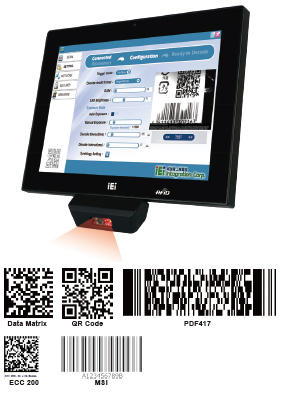

   1D/2D Barcode Scanning for Retail Applications (optional)

Model AFL3-2D-R10
1D/2D Image Engine Resolution :752×480 CMOS
I/O interface USB
Sym-bologIes 2D
PDF417, Data Matrix (ECC200, CC000,050,080,100,140), QR Code, etc
Code128, EAN-13, EAN-8, Code39(billing), UPC-A, UPC-E, Codabar, Interleaved 2 of
5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.

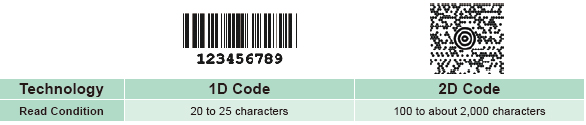

   Modularized 1D/2D Barcode Scanner and Easy to Assemble

Accurately decodes all 1D and 2D codes, even wrinkled, damaged or poorly printed
752×480 CMOS sensor captures high resolution images for decoding
Horizontal 42° and Vertical 27.5° large scanning area

   Software OSD configuration

   E-Window Module

Customizing flexible I/O extension by IEI E-Window technology, allow to variety PCIe-mini module with flexible customization.

Model AFL3-12A-BT-R10
LCD Display 12.1”
Max Resolution 1024 x 768 (4:3)
Brightness (cd/m²) 500
Contrast Ratio 700 : 1
LCD Color 16.2M
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Viewing Angle (H-V) 160º / 160º
Backlight MTBF(hrs) 50000 hrs
Touch Screen 5-wire resistive touch window/ projected capacitive type
Touch Controller PenMount DMC9000/ EETI EXC7200
CPU Intel® Celeron® J1900 quad core 2.0 GHz
RAM One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM pre-installed (system max. 8GB)
Ethernet 2 x PCIe GbE by RTL8111E controller
Audio Codec ALC892
Storage mSATA
2.5” SATA 3Gb/s HDD bay
Input / Output 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)
2 x USB 3.0
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
1 x Reset button
1 x AT/ATX switch
1 x 9-30V Lockable power jack
Audio AMP 3W + 3W (internal speaker)
Camera 2-megapixel with low light function, digital microphone
OSD Function Software OSD
Thermal Solution Fanless
Wireless IEEE 802.11a/b/g/n/ac
Front Panel Construction PC + ABS Plastic
Mounting Panel, Wall, Rack, Stand and Arm
VESA 75mm x 75mm / 100mm x 100mm
Color Black C
Dimensions (WxHxD) (mm) 303 x 243 x 44
Cut out (WxH) (mm) 243 x 204
Operating Temperature (°C)
(Ambient with air flow)
Storage Temperature (°C) -20°C~60°C
Humidity 10% to 95% (non-condensing)
IP Level IP 64 compliant front panel
Safety&EMC CE / FCC
Power Requirement 9 V ~ 30 V
Power Consumption 12V@3.58A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)

    Fully Integrated I/O



   Ordering Information
Part Number Description
AFL3-12A-BT-J1/PC/2G-R10 12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac, projected capacitive touch screen, 2GB DDR3L RAM, 2-megapixel camera, microphone, R10
AFL3-12A-BT-J1/R/2G-R10 12.1” 500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac, resistive touch screen, 2GB DDR3L RAM, 2-megapixel camera, microphone, R10

Item AFL3-12A-BT
Panel Mounting Kit AFL3PK-W07A-R10
Wall Mounting Kit AFLWK-19B
Rack Mount Kit AFL3RK-12A-R10
Arm ARM-11-RS/ARM-31-RS
V-Stand VSTAND-A12-R11
1D/2D Barcode Scanner AFL3P-12MSR-U-R10
Barcode Scanner AFL3-2D-R10
RFID Reader
(13.56 MHz Mifare Type)
(For ATO assembly)
OS: Win 7 Embedded AFL3-W07A-BT-WES7P-R10 (for PCAP touch)
AFL3-W07A-BT-WES7E-R10 (for Resistive touch)
OS: Win 8 Embedded AFL3-W07A-BT-WE8S-R10
*RFID support after AFL3-xxA-BT R11 version

   Packing List
Item Part No. Q’ty Description
One Key Recovery DVD 7B000-001083-RS 1
Pan head machine screw 44403-040061-RS 4 M4*6 pan head machine screw
Fix holder 46003-009500-RS 2
Power cord 32702-000200-100-RS 1
Power adapter 63040-010060-120-RS 1 60W; Vin: 90V~264V AC; Vout: 12VDC; Φ2.5/Φ5.5/lock
Driver CD   1
RJ-45 to DB-9 COM port transfer cable 32005-000200-200-RS 1 300mm, 26AWG, (A) D-SUB 9 male, (B) RJ-45
Touch pen
