IEI Launches PPC-F06B-BT Heavy Industrial Panel PC
 Features |
|
|
|
 |
5.7”, 8” and 10.4” fanless industrial panel PC |
|
Low power consumption DDR3L memory supported |
|
|
IP 65 compliant front panel |
|
Quad-core Intel® Celeron® processor N2807 1.58GHz |
|
|
SSD mSATA suppoted |
|
Dual GbE for backup |
|
|
9 V~30 V wide DC input |
|
-10°C~50°C extended operating temperature |
 |
|
 |
|

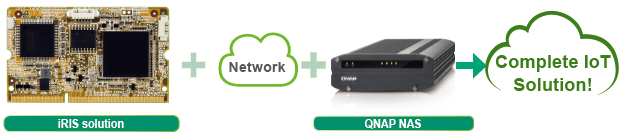

IEI Remote Intelligent Management System |
|
|
|
|
The PPC-F supports iEi iRIS remote management, which helps users to manage multiple devices through single management interface and elevates work efficiency. iRIS solution only requires a module and Internet connection! |
 |
|
|
|
■ Remote Power Management |
 |
|
Users can remotely power on/off all the iRIS devices and set up power cycle to simplify power control process. |
 |
|
|
|
|

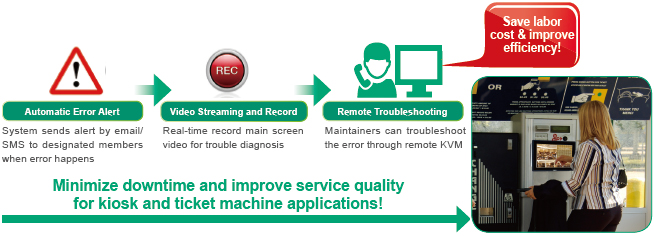

■ 24-hour Active Recovery |
|
|
Remote troubleshooting everywhere, there is no need to send out maintenance staff anymore! |
|
 |
|
|
|
Latest Intel® Cost Effective Mainstream H81 Platform |
|
|
|
|
|
|

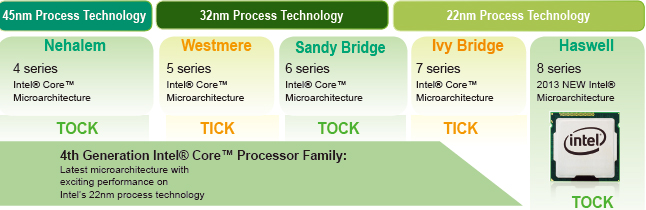

■ Platform Transition |
 |
|
|
|
■ Major Advantage of PPC-F H81 Platform |
|
|
|
More Embedded CPU Choice |
 |
|
IEI selects more embedded CPUs in Haswell generation, including 35W/45W/54W/65W for the PPC-F H81 platform. It is more flexible to choose suitable CPU for different system requirements. |
|
SATA 3.0 support |
|
|
The PPC-F series equips with the latest SATA 3.0 interface that supportsbandwidth up to 6Gb/s which is twice faster than SATA 2.0! Both 2.5” SATA HDD and SSD can be used in the SATA 3.0 interface. |
 |
|
|
|
|

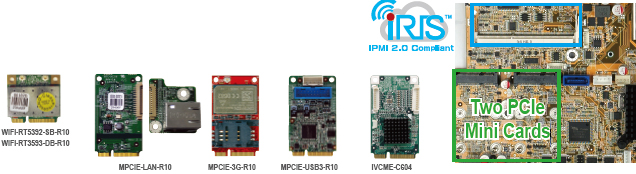

■ PCIe Mini Card Expansion |
|
|
Two full-size PCIe Mini card expansion slots are reserved in the PPC-F 2. With a wide variety of IEI PCIe Mini card solutions, it is flexible and easy to add extra functions on the system. |
 |
|
|
|
|
|
Specifications |
|
|
|
|
Model Name |
PPC-F06B-BT |
|
LCD |
LCD Display |
5.7” (4:3) |
|
Max Resolution |
640 (W) x 480 (H) |
|
Brightness (cd/m²) |
550 |
|
Contrast Ratio |
800:1 |
|
LCD Color |
262K |
|
Pixel Pitch (mm) |
0.18(H) x 0.18(V) |
|
Viewing Angle (H-V) |
160° / 140° |
|
Backlight MTBF (Hrs) |
50000 |
|
Motherboard |
CPU |
Intel® Celeron® processor N2807 dual-core, 1.58GHz |
|
RAM |
2GB DDR3L 1600MHz On-board RAM
(System max. 4GB by MOQ=300pcs) |
|
Touch |
Touchscreen & Controller |
4-wire resistive type flat touch window,
PenMount DMC9000 |
|
Surface Hardness |
3H |
|
Input Interfaces |
I/O Ports & Switches |
1 x RJ-45 LAN port
1 x RS-232 COM port (DB-9 connector)
(RI/5V/12V)
1 x RS-422/485
2 x USB 3.0
2 x USB 2.0
1 x 9-30V lockable DC jack (2-pin)
1 x Audio port (line-out)
1 x Power switch
1 x Reset button
1 x AT/ATX switch |
|
Expansion |
1 x Full-size PCIe Mini slot (with mSATA, PCIe/USB signal) |
|
Wireless LAN |
SMA antenna (optional) |
|
Storage |
SSD |
mSATA |
|
Physical |
Construction Material |
Aluminum front bezel |
|
Mounting |
Stand/ Panel Mount/Rack Mount/ VESA 75*75 |
|
Enclosure Color |
Black C |
|
Dimension (mm) |
136.4 x 178.5 x 56.3 |
|
Weight (Net) |
0.89kg |
|
Cutout Dimensions (mm) |
157.5 x 115.4 |
|
Environment |
Operating Temperature
(with air flow) |
-10°C~50°C (14°F~122°F) |
|
Storage Temperature |
-20°C~60°C (-4°F~140°F) |
|
Humidity |
10% to 95% (non-condensing) |
|
IP Level |
IP 65 compliant front panel |
|
Safety and EMC |
CE & FCC Class A certified |
|
Power Input |
Power Supply |
9 V~30 V DC |
|
Power Consumption |
24W |
|
|
|
|
Fully Integrated I/O |
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
Part Number |
Description |
|
PPC-F06B-BT-N1/2G/R-R10 |
5.7” 450 cd/m² VGA panel PC with Intel® Celeron® processor N2807, TDP 4.3W, 2GB on-board DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10 |
|
|
|
|
Options |
|
|
|
|
Item |
PPC-F06B |
|
ARM |
ARM-11-RS |
|
Stand |
STAND-100-RS
STAND-B08 |
|
Wall Mount Kit |
AFLWK-12 |
|
Panel Mount Kit |
FPK-07-R10 |
|
WiFi Kit |
PPC-WL-KIT02-R11 |
|
|
|
|
Packing List |
|
|
|
|
Item |
Q’ty |
Remark |
|
PPC-FxxB-BTi Panel PC |
1 |
|
|
User Manual & Driver CD |
1 |
|
|
One Key Recovery CD |
1 |
|
|
Touch Pen |
1 |
Resistive type models only
P/N: 43125-0002C0-00-RS |
|
Power Cord |
1 |
Part numbers varies by regions |
|
Screw Pack |
1 |
Including necessary screws |
|
Power Adapter |
1 |
9V~36V DC |
|
|
|
|
