AFL2-17A-H61
 Features |
|
|
|
 |
 |

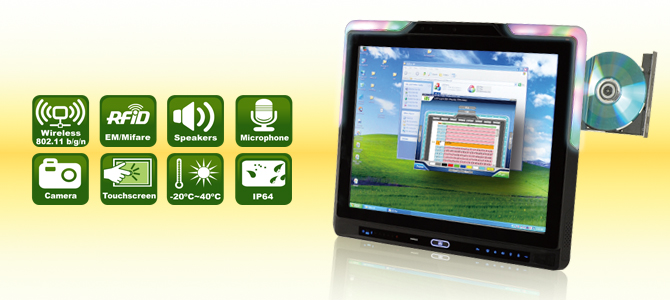

Programmable colorful LED light bar |
|
|
Intel® Core™ i7/i5/ i3 and Pentium® processor |
|
|
Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) pre-installed with 4GB (2GB x 2) |
|
|
Projected capacitive touchscreen supported |
|
|
Wi-Fi 802.11b/g/n 2T2R high speed wireless |
|
|
Built-in 2M pixels webcam with AF, AE and AWB capabilities |
|
|
Built-in two 2W speakers and microphone |
|
|
IP64 compliant front panel |
|
|
Auto dimming control |
|
|
Light fanless design |
|
|
K-type thermalcouple temperature sensor |
|
|
Wide range 9~36 VDC input |
 |
|
Projective capacitive type touch screen supported |
|
|
|
|

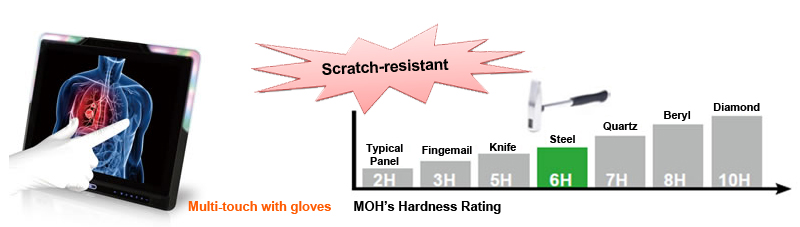

AFL2-17A-H61 is equipped with a projected capacitive touchscreen, perfectly suited for KIOSK and outdoor digital signage environments with a tempered glass layer. It also supports Windows 7 multi-touch function compatible with glove-wearing users and enhancing ease-of-use.
 |
|
Type |
Resistive |
Capacitive |
|
5-wire |
Projected capacitive |
|
Input Method |
Hand or Stylus |
Hand or Stylus |
|
Glove |
Yes |
Yes |
|
Single/Multi-touch |
Single |
Multi |
|
Hardness |
3H |
6H |
|
Transparency |
78% |
85% |
|
|
|
|
|
LED Light Bar Visual Management |
|
|
|
AFL2-17A-H61 system embedded effective brightness LED dash board. Each LED IC can be set by the user in multiple functions such as brightness, color, form to be a visual management tool. It can be adapted to product line signal, patient emergency signal in hospital, advertising machine…etc.
|
|
|
|
Specifications |
|
|
|
|
Model |
AFL2-17A-H61 |
|
LCD Specifications |
Size |
17" (4:3) |
|
Resolution |
1280 (W) x 1024 (H) |
|
Brightness (cd/m²) |
350 |
|
Contrast Ratio |
1000:1 |
|
LCD Color |
16.7M |
|
Pixel Pitch (mm) |
0.264 (H) x 0.264 (V) |
|
Viewing Angle (H-V) |
170° / 160° |
|
Backlight MTBF |
50,000 (LED backlight) |
|
Touch |
Touch Screen |
Projected capacitive type with USB interface |
|
Touch Controller |
PenMount DMC9000 / EETI EXC7200 & EXC5404 |
|
System |
CPU |
2nd/3rd Generation of Intel®Core™ i7/i5/i3 and Pentium® processors |
|
Chipset |
Intel® H61 |
|
RAM |
Support two 204-pin DDR3 SO-DIMM slot (max. 16GB) preinstalled with 4GB (2GB x 2) |
|
Ethernet |
Realtek RTL8111E PCIe GbE controller supports ASF 2.0 |
|
Audio Codec |
Realtek ALC892 HD audio codec |
|
HDD |
2.5" SATA 3Gb/s HDD bay |
|
CD-ROM |
1 x Slim Type CD-ROM bay |
|
Input / Output |
2 x RS-232 (DB-9 connector) |
|
1 x RS-422/485 (DB-9 connector) |
|
2 x GbE LAN (one on the bottom, one on the left) |
|
2 x USB 3.0 |
|
3 x USB 2.0 (two on the bottom, one on the left) |
|
1 x Mini USB port on front panel |
|
1 x Micro SD card slot on front panel |
|
1 x Line-out, Mic (on the left) |
|
Expansion Interface |
1 x PCIe Mini slot for Wi-Fi |
|
1 x PCIe Mini slot reserved |
|
Other Features |
Audio |
AMP 2W + 2W (internal speaker) |
|
Camera |
2 M pixels with low light function |
|
RFID Reader |
EM 125 KHz or Mifare 13.56 MHz card reader (optional) |
|
MSR Card Reader |
MSR card reader (optional) |
|
TPM |
Reserved by pin-header |
|
OSD Function |
LCD on/off, brightness up/down, volume up/down, Hot Key |
|
Ambient Light Sensor |
Yes |
|
Infrared Remote Controller |
Yes |
|
LED Light Bar |
Yes |
|
System Cooling |
Light fanless (smart fan operates above default temperature setting) |
|
Connectivity |
Wireless |
IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) |
|
Bluetooth |
Bluetooth V2.0+EDR with USB interface (optional) |
|
Physical |
Construction Front Panel |
PC + ABS Plastic |
|
Mounting |
Panel, Wall, Rack, Stand and Arm VESA 100 mm x 100 mm |
|
Color |
Black |
|
Dimensions (mm) |
418 (W) x 378 (H) x 65 (D) |
|
Weight (N/G) |
6.9 kg / 9.0 kg |
|
Environment |
Operating Temperature (°C)
(Ambient with air flow) |
-20°C ~ 50°C |
|
Storage Temperature (°C) |
-20°C ~ 60°C |
|
Humidity |
10% to 95% (non-condensing) |
|
IP Level |
IP 64 compliant front panel |
|
Safety&EMC |
CE / FCC |
|
Power |
Power Supply |
120W power adapter
Input:100 V AC ~ 240 V AC, 50 / 60Hz, Output: 19 V DC |
|
Power Requirement |
9 ~ 36 VDC |
|
Power Consumption |
19V@5.3A
(Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz 4GB DDR3 memory) |
|
|
|
|
Ordering Information |
|
|
|
|
LED Bar |
Model |
Description |
|
LED Bar |
AFL2-17A-H61-i5/PC-R11 |
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, R11
|
|
AFL2-17A-H61-i3/PC-R11 |
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, R11
|
|
AFL2-17A-H61-P/PC-R11 |
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, R11
|
Without
LED Bar |
AFL2-17AB-H61-i5/PC-R11 |
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
|
|
AFL2-17AB-H61-i3/PC-R11 |
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
|
|
AFL2-17AB-H61-P/PC-R11 |
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
|
|
|
|
|
Options |
|
|
|
|
Item |
AFL2-17A-H61 |
|
Panel Mounting Kit |
AFL2PK-17A |
|
Wall Mounting Kit |
AFLWK-19/AFLWK-19B |
|
Rack Mounting Kit |
AFL2RK-17A |
|
Arm |
ARM-31-RS |
|
Stand |
STAND-A19/STAND-B19/STAND-C19/STAND-210-R11/STAND-A26-R11 |
|
Hybrid Card Reader |
AFL2P-W19AMSI-U-R10 |
|
Magnetic Stripe Reader |
AFL2P-W19AMSR-U-R10 |
|
Slim DVD Burner |
73400-AD7700S01-RS |
|
Bluetooth Module Kit |
AFL2-BT-KIT01-R11 |
|
Trusted Platform Module (TPM) |
TPM-IN01-R11 |
|
EM RFID Reader |
AFL2-EM-RFID-KIT01-R10 |
|
Mifare RFID Reader |
AFL2-MF-RFID-KIT01-R10 |
|
OS: Win XPE (CD-ROM) |
AFL2-17A-H61-XPE-R10 |
|
OS: Linux (CD-ROM) |
AFL2-17A-H61-LNX-R10 |
|
OS: Win 7 Embedded (CD-ROM) |
AFL2-17A-H61-WES7P-R10 (for Projected Capacitive Touch) |
|
|
|
|
Packing List |
|
|
|
|
Item |
P/N |
Q'ty |
Description |
|
Utility CD |
|
1 |
drivers and user manual |
|
One Key Recovery CD |
|
1 |
|
|
Power Adapter |
63000-FSP120AAB-RS |
1 |
FSP120-AAB, 90~264VAC input, 120W, 19VAC output |
|
Power Cord |
32702-000401-100-RS |
1 |
European, 1500mm |
|
Power Transfer Cord |
32000-089400-RS |
1 |
|
|
Infrared Remote Controller |
7Z000-SLPCB005-RS |
1 |
|
|
M3 Screw Pack |
44013-030041-RS |
4 |
M3 x 4 for securing HDD |
|
M4 Screw Pack |
44033-040061-RS |
4 |
M4 x 4 for VESA screw |
|
I/O Bracket |
41013-0290C2-00-RS |
1 |
I/O Bracket |
|
Temperature Sensor Cable |
32133-004300-100-RS |
1 |
|
|
|
|
|
