IEI Launches the IVS-100-BT Vehicle Fleet Management System
 Features |
|
|
|
 |
Intel® Atom® E3826 1.46 GHz CPU |
|
Powered by Windows® Embedded Standard 7 |
|
|
Supports 2.5" SATA 3Gb/s SSD |
|
Built-in GPS function |
|
|
Built-in VGA output and HDMI output |
|
Dual SIM slot |
|
|
Optional 3G/Wi-Fi/UHF reader modules |
|
Optional software compression video capture card |
|
 |
|

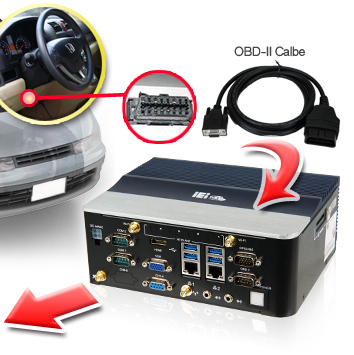

On-board diagnostics(OBD) |
|
|
|
|
• Vehicle's self-diagnostic |
• SAE standards documents on OBD-II |
|
• Car info show item |
-
Driving records
-
Tire pressure
-
Engine RPM
-
Carbon Emissions
-
Temperature
|
|
J1962、 J1850 、 J1978 、 J1979、J2012、J2178、J2411 |
 |
|
|
|
|
|

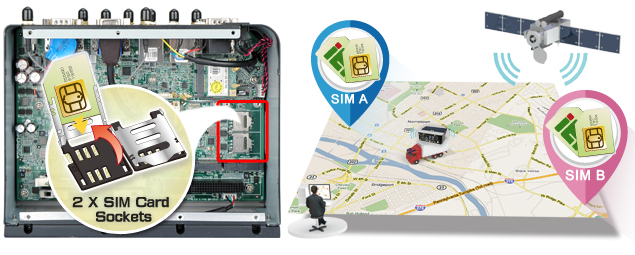

Dual SIM slot |
|
|
|
• Support dual SIM card install in the machine.
• When the car move from one country to another country, SW tool will judge which SIM card should be used
and switch to suitable SIM card.
|
 |
|
|
|
|
|
|
Application for different vehicles |
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Model Name |
IVS-100-BT |
|
Chassis |
Color |
Black C + Silver |
|
Dimensions (WxHxD) (mm) |
200 x 150 x 76 |
|
System Fan |
Fanless |
|
Chassis Construction |
Extruded aluminum alloys |
|
Motherboard |
Processor CPU |
Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W TDP) |
|
Chipset |
SoC |
|
System Memory |
2 x 204-pin DDR3 SO-DIMM slot,
pre-installed one 2 GB DDR3 SO-DIMM |
|
Storage |
Hard Drive |
1 x 2.5” SATA 6Gb/s HDD/SSD drive bay |
|
SD Card |
1 (supports SD 2.0, max. 32 GB) |
|
mSATA |
1 x mSATA (SATA 3Gb/s) |
|
Communication |
WLAN |
PCIe Mini Wi-Fi 802.11b/g/n 1T1R (optional) |
|
Bluetooth |
Bluetooth 2.0 (combo with WWAN) (optional) |
|
WWAN |
PCIe Mini, WCDMA/HSDPA/HSUPA (optional) |
|
RFID |
UHF module, 902 MHz ~ 928 MHz operating band (optional) |
|
GPS |
Yes |
|
I/O Interfaces |
USB 3.0 |
4 |
|
Ethernet |
2 x 10/100/1000 Mbps RJ-45 by RTL8111E PCIe GbE |
|
RS-232/422/485 |
2 x DB-9 RS-232, 4 x RS-422/485 |
|
Digital I/O |
4-ch digital input/4-ch digital output |
|
CAN-bus/OBD-II |
1 x DB-9 CAN-bus/OBD-II |
|
Display |
1 x VGA, 1 x HDMI |
|
Resolution |
HDMI: Up to 1920 x 1080 @ 60 Hz
VGA: Up to 2560 x 1600 @ 60 Hz |
|
Audio |
1 x Line in, 1 x Line out |
|
SIM |
2 |
|
Antenna |
2 x Wi-Fi/BT, 1 x WWAN, 1 x GPS, 4 x UHF |
|
Other |
4-channel SC video capture card (optional) |
|
Expansions |
PCI |
1 |
|
PCIe Mini |
1 for WWAN module, 1 for Wi-Fi module, 1 for capture module,
1 reserved |
|
Power |
Power Input |
Cigarette lighter power cable, DC 9 V~30 V |
|
Consumption |
12 V @ 3.2 A (Intel® Atom™ E3826 with 2 GB DDR3 memory) |
|
Reliability |
Mounting |
VESA 100x100 |
|
Operating Temperature |
-20°C ~ 60°C with air flow |
|
Storage Temperature |
-30°C ~ 70°C |
|
Humidity |
5% ~ 95%, non-condensing |
|
Operating Shock |
Half-sine wave shock 5G, 11ms, 3 shocks per axis |
|
Operating Vibration |
MIL-STD-810F 514.5C-2 (with SSD) |
|
Weight (Net/Gross) |
2.1 kg/3.6 kg |
|
Safety/EMC |
CE/FCC/E-Mark |
|
OS |
Supported OS |
Microsoft® Windows® 8 Embedded,
Microsoft® Windows® Embedded Standard 7 E |
|
|
|
|
Ordering Information |
|
|
|
|
Part No. |
Description |
|
IVS-100-BT-E3/2G-R10 |
Fanless embedded system with Intel® Atom™ E3826 1.46 GHz processor, 7W TDP, pre-installed 2 GB DDR3L memory, two GbE LAN, one HDMI, one VGA, one 2.5” removable SATA HDD bay, on-board GPS, RoHS
|
|
|
|
|
Options |
|
|
|
|
Item |
Part No. |
Description |
|
Power adapter |
IVIPOWER-4PIN-R10 |
Power adapter with 4-pin transfer cable, RoHS |
|
Cigarette lighter power cable |
32002-004000-100-RS |
Round cable, power cable, car cigarette lighter cable, 2000 mm, 18 AWG, (A) cigarette lighter (5 A 250 V)+
ψ3 green LED, (B) MOLEX 5557-0400 P=4.2, SHANGHAI YING YU, RoHS |
|
OBD-II cable |
32025-000300-100-RS |
Round cable, OBD-II cable, 2000 mm, 24 AWG,
(A) OBD-II 16P male, (B) D-sub 9P female,
one piece package with label, NIAN YEONG, RoHS |
|
J1939/FMS cable |
32025-000400-100-RS |
Round cable, J1939 cable, 2000 mm, 22 AWG, (A)J1939 9P male, (B)D-9P female, KEY JOY, RoHS |
|
OS: Windows Embedded 7 (DVD-ROM) |
IVS-100-WES7E-R10 |
OS image with Windows® Embedded Standard 7 E for IVS-100 Series, with DVD-ROM, RoHS |
|
Wireless kit |
IVS-WIFI-KIT01-R10 |
VIA VNT9485BE0CW 1T1R Wi-Fi module kit for embedded system, 1 x Wi-Fi module,
1 x RF cable (140mm), 1 x antenna, RoHS |
|
WWAN kit |
IVS-3G-KIT01-R10 |
F260 3G module, BT V2.1, 2 x RF cable (3G: 140 mm, BT: 263 mm), 1 x antenna, RoHS |
|
UHF module |
IVS-UHF01-R10 |
UHF RFID patch antenna, 915 MHz, only for United States |
UHF RFID Antenna
(Patch Antenna 915 MHz) |
AVL-2000PLUS-FCC01-R10 |
UHF RFID antenna module, patch antenna, 915 MHz, 8.5dBi, with RFID cable, LMR195, 10000 mm, SMA PLUG, ROHS |
|
4-channel video capture card |
IVS-SC01-R10 |
Video capture card, PCIe Mini card with 4-channel video capture, SC330N4 MC, YUAN HIGH-TECH, RoHS |
|
Dead reckoning box |
IVI-DR-R10 |
IVI dead reckoning box, USB output |
|
|
|
|
Packing List |
|
|
|
|
Item |
P/N |
Qty |
Description |
|
ACC power cable |
32002-001900-100-RS |
1 |
Round cable, power cable, 3000 mm, 16 AWG,
(A) MOLEX 5557-04P P=4.2, SHANGHAI YING YU, RoHS |
|
GPS/GSM antenna |
32506-000100-100-RS |
1 |
Integration antenna, GPS/GSM, RG 174, 5000 mm/5000 mm,
PPF-5423SA5X-999, magnetic mount: φ55 mm x 22mm, JOYMAX, 1575.42 MHz/850 MHz/900 MHz/1800 MHz/1900 MHz,
2 x SMA plug, RoHS |
|
Utility CD |
|
1 |
User manual and driver CD |
|
|
|
|
