IEI Launches PPC-F08B-BT Heavy Industrial Panel PC

IEI Remote Intelligent Management System
Latest Intel® Cost Effective Mainstream H81 Platform
Specifications Dimensions Ordering information Options Packing list
5.7”, 8” and 10.4” fanless industrial panel PC Low power consumption DDR3L memory supported
IP 65 compliant front panel Quad-core Intel® Celeron® processor J1900 2.0GHz
SSD mSATA suppoted Dual GbE for backup
9 V~30 V wide DC input -10°C~50°C extended operating temperature

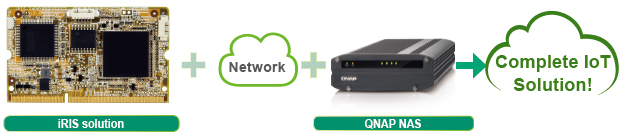

   IEI Remote Intelligent Management System
The PPC-F supports iEi iRIS remote management, which helps users to manage multiple devices through single management interface and elevates work efficiency. iRIS solution only requires a module and Internet connection!
■ Remote Power Management
Users can remotely power on/off all the iRIS devices and set up power cycle to simplify power control process.

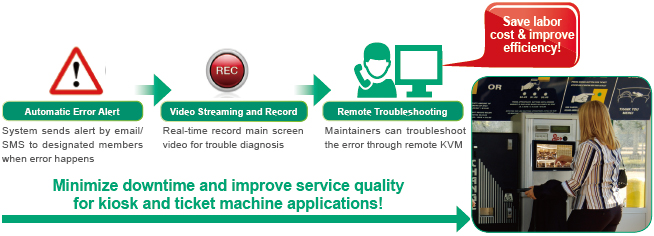

■ 24-hour Active Recovery
Remote troubleshooting everywhere, there is no need to send out maintenance staff anymore!
   Latest Intel® Cost Effective Mainstream H81 Platform

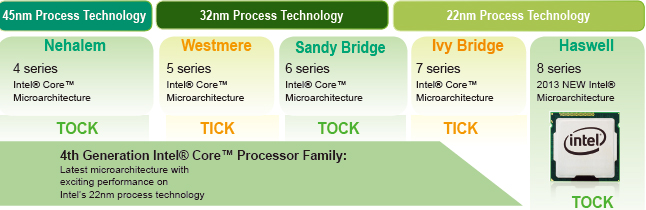

■ Platform Transition
■ Major Advantage of PPC-F H81 Platform
More Embedded CPU Choice
IEI selects more embedded CPUs in Haswell generation, including 35W/45W/54W/65W for the PPC-F H81 platform. It is more flexible to choose suitable CPU for different system requirements.
SATA 3.0 support
The PPC-F series equips with the latest SATA 3.0 interface that supportsbandwidth up to 6Gb/s which is twice faster than SATA 2.0! Both 2.5” SATA HDD and SSD can be used in the SATA 3.0 interface.

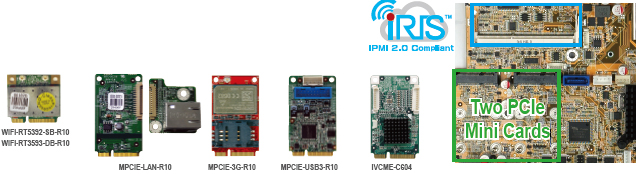

■ PCIe Mini Card Expansion
Two full-size PCIe Mini card expansion slots are reserved in the PPC-F 2. With a wide variety of IEI PCIe Mini card solutions, it is flexible and easy to add extra functions on the system.
Model Name PPC-F08B-BT
LCD LCD Display 8” (4:3)
Max Resolution 800 (W) x 600 (H)
Brightness (cd/m²) 500
Contrast Ratio 500:1
LCD Color 16.2M
Pixel Pitch (mm) 0.2025(H) x 0.0675(V)
Viewing Angle (H-V) 140° / 120°
Backlight MTBF (Hrs) 25000
Motherboard CPU Intel® Celeron® J1900 on-board SoC quad-core, 2GHz
RAM 2 x 204-pin DDR3L SO-DIMM slot (max. 8GB)
Touch Touchscreen & Controller 5-wire resistive type flat touchscreen
Surface Hardness 3H
Input Interfaces I/O Ports & Switches 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port
(DB-9 connector) (RI/5V/12V)
2 x USB 2.0
2 x USB 3.0
2 x GbE LAN
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Audio port (line-out)
1 x 9 V~30 V lockable power jack
Expansion 1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal)
1 x Half-size PCIe Mini slot for Wi-Fi modules
Wireless LAN SMA antenna (optional)
Storage SSD mSATA
Physical Construction Material Aluminum front bezel
Mounting Stand/ Panel Mount/Rack Mount/ VESA 75*75
Enclosure Color Black C
Dimension (mm) 182.2 x 222.2 x 44
Weight (Net) 1.17kg
Cutout Dimensions (mm) 207 x 154
Environment Operating Temperature
(with air flow)
-10°C~50°C (14°F~122°F)
Storage Temperature -20°C~60°C (-4°F~140°F)
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Safety and EMC CE & FCC Class A certified
Power Input Power Supply 9 V~30 V DC
Power Consumption 38W
    Fully Integrated I/O


   Ordering Information
Part Number Description
PPC-F08B-BT-J1/2G/R-R10 8” 500 cd/m² SVGA panel PC with Intel® Celeron® processor J1900, TDP 10W, 2GB DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10
Item PPC-F08B
Stand STAND-100-RS
Wall Mount Kit AFLWK-12
Panel Mount Kit FPK-07-R10
WiFi Kit PPC-WL-KIT02-R11
   Packing List
Item Q’ty Remark
PPC-FxxB-BTi Panel PC 1
User Manual & Driver CD 1
One Key Recovery CD 1
Touch Pen 1 Resistive type models only
P/N: 43125-0002C0-00-RS
Power Cord 1 Part numbers varies by regions
Screw Pack 1 Including necessary screws
Power Adapter 1 9V~36V DC
