IEI introduce the new TANK-6000-C226 to you


Features New Intelligent Machine Vision Solution
USB Camera GigE Camera
Camera link IEI iRIS Technology (IPMI 2.0 Compliant)
Two PCIe x8 Cards Easy Installation
OLED Fully Integrated I/O
Specifications Dimensions Ordering information Options Packing list

Workstation with Intel® C226 chipset Intel® E3 1225 v3/i3 4330 high performance CPU
Support two PCIe by 8 expansion cards 4 x LAN port (two SFP fiber combo ports)
3 x 2.5’’ HDD/SSD bay Support IPMI 2.0 via IEI iRIS solution
Support programable OLED disply module

   New Intelligent Machine Vision Solution
On the industrial field, machine vision is the most popular application, and it has grown over last 10 years. Machine vision is widely related to all kinds of fields from automobile, food inspection, traffic surveillance and even handset inspection. Machine vision connects our daily life.

There are a variety of camera types that can be connected for vision applications, such as USB cameras, GigE cameras and even the Camera Link high level cameras. The TANK-6000 contains many great features which can meet different requirements mentioned above.
■ Machine vision application fields
Automobile Retail
Food Medical
Gaming Aerospace
Electronics validation Consumer goods
Graphics and animation

   USB Camera
The latest USB 3.0 provides 5Gb/s bandwidth speed, which is 10 times more than USB 2.0. Compared with USB 2.0, USB 3.0 provides higher power (0.9A) and supports up to five longer cable connections. Those advantages make USB 3.0 cameras become more and more popular in the field. It is particularly suited to all multi-camera and 3D applications due to its high-resolution and high-performance sensors, and its high data transfer rate.
■ Food inspection

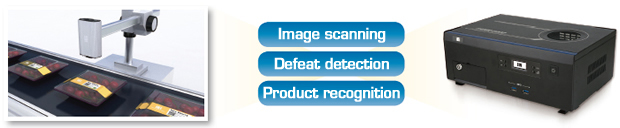

The TANK-6000 contains four USB 3.0 ports. When used for food inspection, these USB ports can be connected to multiple USB 3.0 cameras to fulfill demands in a production line or an inspection line. The cameras can be easily configured for simultaneous multiple measurement of 3D contours and colors, and for the NG goods detection in different angles. In addition, the TANK-6000 supports two PCIe x8 slots (Gen 3) for adding a motion control card to control robots to filter out the bad one.


   GigE Camera

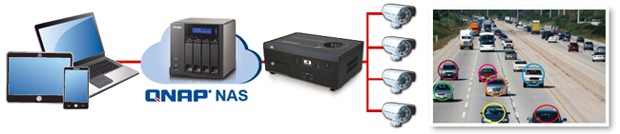

GigE camera is a type of digital video camera commonly employed for surveillance and machine vision. With LAN connected, GigE camera can transmit real-time video to the TANK-6000 and identify captured images.
■ High Speed Image Identification
The TANK-6000 contains four GbE LAN ports, which allow users to link multiple cameras. With Intel® HD GT2 technology, TANK-6000 supports hardware decoding, encoding and transcording capabilities as well as video and alarm management. The three 2.5’’ HDD bays support RAID function to ensure data safety. Furthermore, with the integrated iRIS solution, users can use the remote power control function for power maintenance. Wherever you are, IEI iRIS technology allows you to remotely control and monitor your devices via Internet connection.


   Camera link
“Camera Link” is a serial communication protocol standard designed for computer vision applications based on the National Semiconductor interface Channel-link. It is designed for industrial video products and usually in PCIe card type, such as PCIe x4 or higher specifications.
■ LCD panel inspection

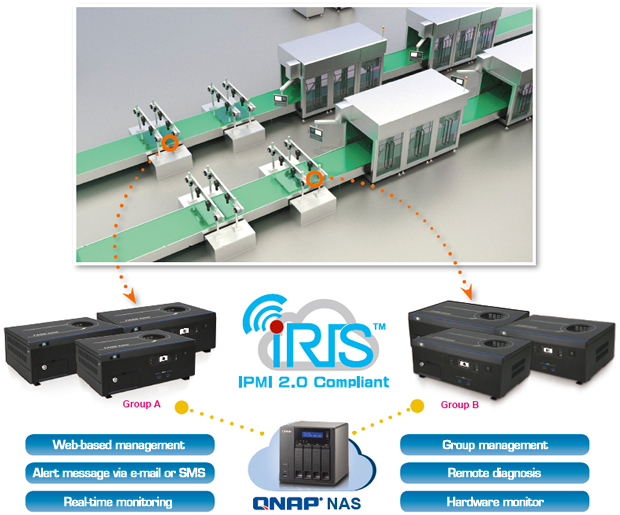

The TANK-6000 equips two PCIe x8 Gen 3 slots, which have 8GT/s (giga-transfer per second) bandwidth. Compared to 5GT/s of Gen 2, it provides higher bandwidth for data transmission. A camera link card can be added into the TANK-6000 to fulfill high-speed vision processing requirements in applications such as Automated Optical Inspection (AOI) in factories. With iRIS intelligent remote solution integrated, users can benefit from its group control or remote monitoring features to reduce the cost of maintenance and enhance system stability. Furthermore, the TANK-6000 is installed with the workstation-grade Intel® C226 chipset plus Xeon® E3 CPU. This combination will be really achieving high-performance processing requirements. Compared to the RACK server, the TANK-6000 is a compact-size system and is ideal for space-saving production line environments. All the abovementioned features make TANK-6000 suitable for inspection application in production industry.

   IEI iRIS Technology (IPMI 2.0 Compliant)
TANK-6000 supports the IPMI 2.0 compliant IEI iRIS module, which helps users manage the system remotely even when it is shut-down or no OS installed. Besides, remote update or monitor can save considerable cost than on-side repair.
Remote Control (KVM over IP) iRIS QNAP NAS App

    Two PCIe x8 Cards
TANK-6000 supports two PCIe x8 cards which is compliant with PCI Express 3.0 with up to 8 GT/s per lane. Users can install expansion cards into the system for different applications, such as DAQ cards, vision cards or graphics cards.
  2 x PCIe by 8 card
Type Application
10GbE/Fiber card Networking Storage
SSD card Data center
Graphic card Vision capture/Vison recognition
Camera Link card LCD/Wafer inspection
SAS/RAID card Server industry/Data protection

    Easy Installation
It is easy to install internal components in the TANK-6000. Users can easily open the top cover and access internally by using the thumb screws.
Easy access via thumb screws Add-on card installation HDD installation

TANK-6000 contains programmable OLED indicators for users. Users can program their own APIs to show any information on the display. Besides, IEI provides the protocol and demo source code for customers to do their own design.
OLED Image Editor
 • Programmable OLED display
  Customers can edit their own APIs to show information
  on OLED display.
 • Programmable function ke
OLED information   Users can program four keys to control TANK-6000.
Active Area (WxH) 35.04 mm x 17.51 mm  • Open protocol and demo source code
Resolution (HxV) 128 Dots x 64 Dots   IEI provides protocol and source code for users.

    Fully Integrated I/O

Model Name TANK-6000-C226
Chassis Color Black
Dimensions (WxHxD) (mm) 310 x 199.5 x 112
System Fan 92 mm x 92 mm Fan
Chassis Construction Extruded aluminum alloys
Motherboard Processor CPU Intel® Xeon® E3 1225-v3 3.2 GHz
Intel® Core™ i3 4330 3.5 GHz
Chipset Intel® C226
System Memory 4 x 240-pin DDR3 U-DIMM 4 GB pre-installed
(system max: 32 GB)
IPMI iRIS Solution On-board
Storage Hard Drive 3 x 2.5'' SATA 6Gb/s HDD/SSD drive bay
I/O Interfaces USB 3.0 4
USB 2.0 2
Ethernet 4 x RJ-45
1 x PCIe GbE by Intel® i217 PHY
3 x PCIe by GbE Intel® i210
Fiber 2 x Combo (SFP Fiber/RJ-45),
combo with LAN 1/LAN 2
RS-232 2 x DB-9
Display 1 x HDMI, 1 x VGA
Resolution HDMI: Up to 1920 x 1200@60Hz
VGA: Up to 1920 x 1200@60Hz
Audio 1 x Line-out, 1 x Mic in
Expansions PCIe 2 x PCIe x8 (Gen 3)
Power Power Input DC Jack: 19 V/24 V DC
Power Consumption 19 V@4.8 A
(Intel®Xeon® E3-1225 v3 with 8 GB memory)
Reliability Mounting Wall mount
Operating Temperature -20°C ~ 55°C with air flow (SSD),
5% ~ 95%, non-condensing
Operating Shock Half-sine wave shock 5G, 11ms, 3 shocks per axis
Operating Vibration MIL-STD-810F 514.5C-2 (with SSD)
Weight (Net/Gross) 2.5 kg/4.6 kg
OS Supported OS Microsoft® Windows® 8 Embedded,
Microsoft® Windows® Embedded Standard 7 E



   Ordering Information
Part No. Description
Embedded System with Intel® C226 chipset, Intel® quad-core Xeon® E3-1225 v3 3.2 GHz, TDP 84W, OLED indicator, two PCIe by 8 expansion, three 2.5" SATA HDD bays, DDR3 U-DIMM 4GB pre-installed (2 x 2GB), iRIS-2400 supported, 19 V/24 V DC, RoHS, R10
Embedded System with Intel® C226 chipset, Intel® dual-core i3- 4330 3.5 GHz, TDP 54W, OLED indicator, two PCIe by 8 expansion, three 2.5" SATA HDD bays, DDR3 U-DIMM 4GB pre-installed (2 x 2GB), iRIS-2400 supported, 19 V/24 V DC, RoHS, R10
