IEI introduce the new TANK-760-HM86 embedded system

TANK-6000-C226
Features Vehicle Control Center
Flexible Expansion Design Dual 2.5’’ SATA HDD/SSD Bay
Certificate Fully Integrated I/O
Specifications Dimensions Ordering information Options Packing list

   Features

Intel® Core™ i5-4400E 2.7 GHz dual-core processor
Intel® Celeron® 2000E 2.2 GHz dual-core processor		 One CFast socket
Support three independent video outputs Built-in two 2.5" SATA 6Gb/s HDD bays
9 V~36 V DC input Support IEI iRIS-2400 (IPMI 2.0 compliant)

   Vehicle Control Center

The TANK-760 is a platform based on the 4th generation Intel® Core™ i5 or Celeron® processor (codenamed Haswell) and the Intel® HM86 chipset. The TANK-760 is equipped with an abundant of I/O ports and supports a wide range of operating temperature. The TANK-760 can be used as a control center for in-vehicle application, such as buses or trucks. With dual CAN-bus port, more peripheral devices can be connected for vehicle applications.

   Flexible Expansion Design

The TANK-760 is designed with four D-sub knockout holes and three PCIe Mini card slots for installing I/O expansion cards, such as video/audio capture cards or COM port cards.






4 x D-SUB
PCIe Mini video/audio capture card





DB-9 to
RCA Jack		 4-Channel
Audio Input

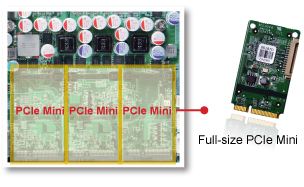

■ Three PCIe Mini
There are lots of different PCIe Mini cards for various applications, such as Wi-Fi, 3G and GPS cards. With three PCIe Mini card design, customers can add extra functions via PCIe Mini cards to apply the TANK-760 in different environments.


   Dual 2.5’’ SATA HDD/SSD Bay

With two 2.5" SATA HDD/SSD bays, users can fulfill large storage requirement and use it as a terminal for data acquisition. The easy to assemble design reduces user fatigue in system installation.







2 x 2.5'' SATA 6Gb/s
HDD/SSD Bay


   Certificate


■ Military Compliant
The TANK-760 is compliant with MIL-STD-810F standard for shock and vibration. The MIL-STD-810 test series is approved for use by all departments and agencies of the United States Department of Defense (DoD).
■ E-Mark Compliant
E-Mark is a commonly recognized certificate in the automobile industry in Europe. E-mark is from the Economic Commission for Europe (Economic Commission of Europe, referred to as ECE) and including 28 countries currently. It is compulsory for vehicles application.


    Fully Integrated I/O

■ Front View
■ Rear View
■Dual CAN-Bus Port ■ Triple Display
Controller Area Network (CAN or CAN-bus) is a vehicle bus standard designed to communicate or detect errors with each other within a vehicle, industrial automation and medical equipment. The TANK-760 has two CAN-bus interfaces, which allow customers to connect more devices in vehicle application.
The TANK-760 contains VGA, DisplayPort and HDMI video outputs, which can be applied to multi-display application and support high Full HD video quality.


   Specifications

Model Name TANK-760-HM86
Chassis Color Black C + Silver
Dimensions (WxHxD) (mm) 310 x 200 x 62
System Fan Fanless
Chassis Construction Extruded aluminum alloys
Motherboard Processor CPU Intel® Core™ i5-4400E 2.7 GHz
Intel® Celeron® 2000E 2.2 GHz
Chipset Intel® HM86
System Memory 2 x 4 GB 204-pin DDR3 SO-DIMM pre-installed
(system max: 16 GB)
iRIS Module iRIS Solution iRIS-2400
Storage Hard Drive 2 x 2.5'' SATA 6Gb/s HDD/SSD bay
CF Card/CFast 1 x CFast
mSATA 1 x mSATA (SATA 3Gb/s signal)
I/O Interfaces USB 3.0 4
USB 2.0 2
Ethernet 2 x RJ-45
1 x PCIe GbE by Intel® I210
1 x PCIe GbE by Intel® I217LM
RS-232 4 x DB-9 with isolation
RS-422/485 2 x DB-9 RS-232/422/485 with isolation
Digital I/O 8-bit digital I/O, 4-bit input/4-bit output
CAN-bus 2 x Phoenix terminal block with isolation
Display 1 x VGA, 1 x HDMI, 1 x DisplayPort
Resolution VGA: Up to 1920 x 1200@60Hz
HDMI: Up to 2500 x 1600@60Hz
DisplayPort: Up to 2500 x 1600@60Hz
Audio 1 x Line-out, 1 x Mic-in
Other Reserved IO window for PCIE mini card expasion
Wireless 802.1b/g/n 2T2R (optional)
Expansions PCIe Mini 3 x Full Size (One Co-lay mSATA)
Power Power Input Terminal Block: 9 V~36 V
DC DC Jack: 9 V~36 V DC
Power Consumption 19 V@3.2 A
(Intel® Core™ i5 i5-4400E with 4 GB memory)
Reliability Mounting Wall mount
Operating Temperature -20°C ~ 70°C with air flow (SSD),
5% ~ 95%, non-condensing
Operating Shock Half-sine wave shock 5G, 11ms, 3 shocks per axis
Operating Vibration MIL-STD-810F 514.5C-2 (with SSD)
Weight (Net/Gross) 4.2 kg/6.9 kg
Safety/EMC CE/FCC
OS Supported OS Microsoft® Windows® 8 Embedded,
Microsoft® Windows® Embedded Standard 7 E

   Dimensions






   Ordering Information

Part No. Description
TANK-760-HM86i-i5/4G-R10
Fanless embedded system, Intel® Core™ i5 dual-core i5-4400E 2.7 GHz, TDP 37W, 4GB DDR3 pre-installed memory, VGA/HDMI/DisplayPort, iRIS-2400 optional,
9 V~36 V DC, RoHs, R10
TANK-760-HM86i-C/4G-R10
Fanless embedded system, Intel® Celeron® dual-core 2000E 2.2 GHz, TDP 37W, 4GB DDR3 pre-installed memory, VGA/HDMI/DisplayPort, iRIS-2400 optional,
9 V~36 V DC, RoHs, R10

   Options

Item Part No. Description
OS: Windows Embedded 7 (CD-ROM) TANK-760-HM86-WES7E-R10 (CD-ROM) OS Image with Windows® Embedded Standard 7 E for TANK-760 HM86 Series, with CD-ROM, RoHS
Wireless kit EMB-WIFI-KIT01-R10 TELEC Certified 2T2R Wi-Fi module kit for embedded system, 1 x Wi-Fi module, 2 x RF cable, 2 x antenna, R10, RoHS

   Packing List

1 x Utility CD 1 x Power Adapter 1 x Chassis Screw
1 x One Key Recovery CD 1 x Power Cord 1 x Mounting Bracket
